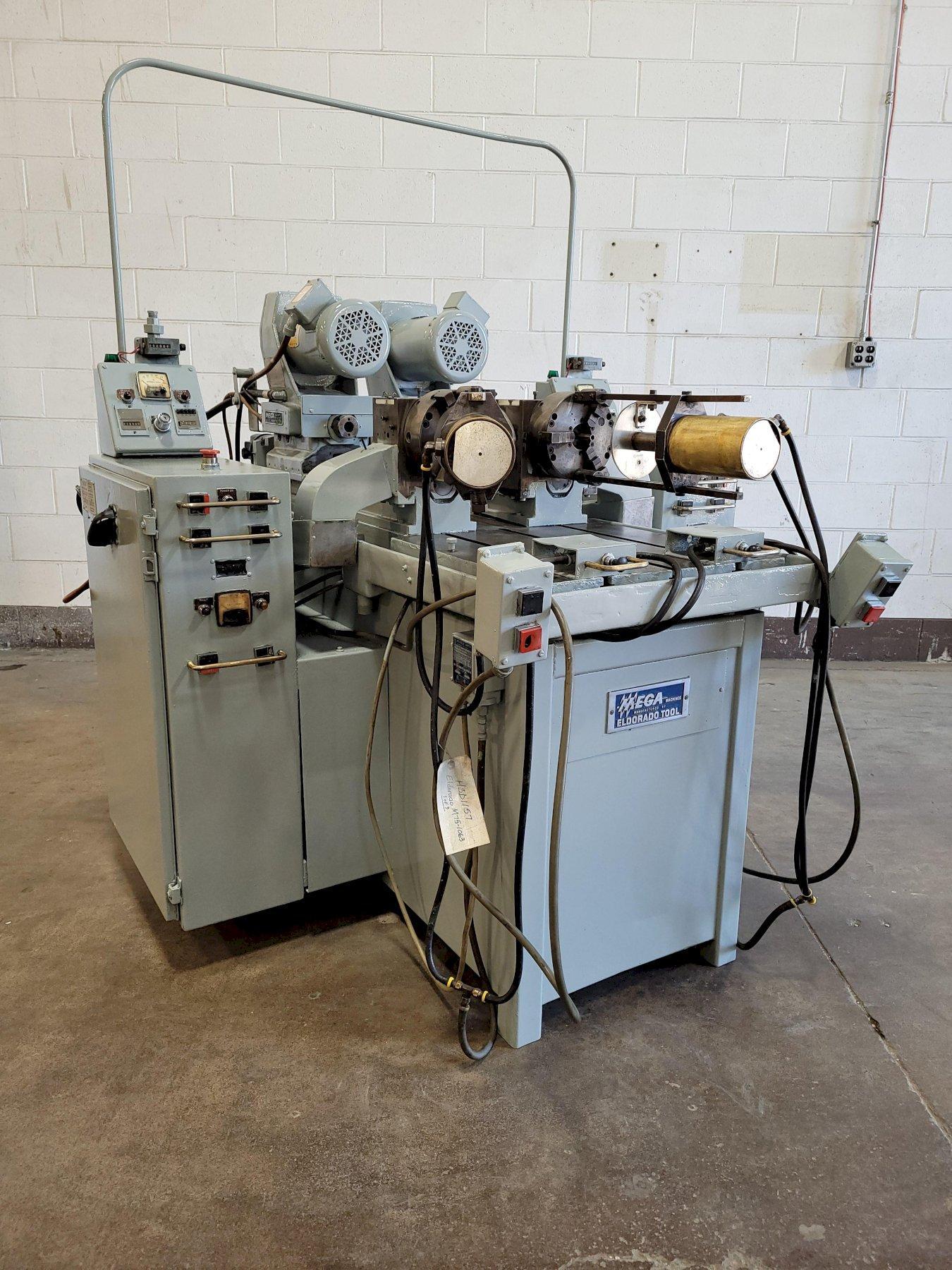

¾” x 15” 2-Spindle ElDorado Mega Model M-75-1036 Precision Deep Hole Gun Drill

Model
M-75-1063

Stock #
HSD1157

Condition
Used

Year
1985

Location
Lake Bluff, Illinois
United States

Specifications

Drilling Diameter Maximum .75 inches
Drilling Diameter Minimum .055 inches
Maximum Drilling Depth 15 inches
Spindle Speeds 1440 - 11,740 RPM
Feed Rate: Drilling .1 - 99.9 IPM
Feed Rate: Rapid 200 IPM
Work Table (T-Slotted) 22" x 22"
Straightness per 12" .001 inches
Coolant Pressure, Maximum 1500 PSI
Reservoir Capacity 18 GPM
Filtration 5 Micron

Equipped With

Motor Driven With 2 HP, 3 Phase, 60 Cycle, 460 Volt Spindle Drives. 7.5 HP, 3 Phase, 60 Cycle Coolant System. Complete Electrical Controls. 1 HP DC Servo Feed Motors. Independent Controls for Each Spindle.

Ball Screw Driven Drill Feed. Eldorado F18 "Mega Flo" High Pressure Coolant System with Filtration And Heat Exchanger.  (2) 7.5" 3-Jaw Self Centering Chucks. (2) Mega QuikLoc Workholding Fixtures with Pneumatic Controls.  Thumb Wheel Feed Rate. Feed Thrust Load Meter. Spindle Load Meter. Chip Box. Automatic Slideway Lubrication.
