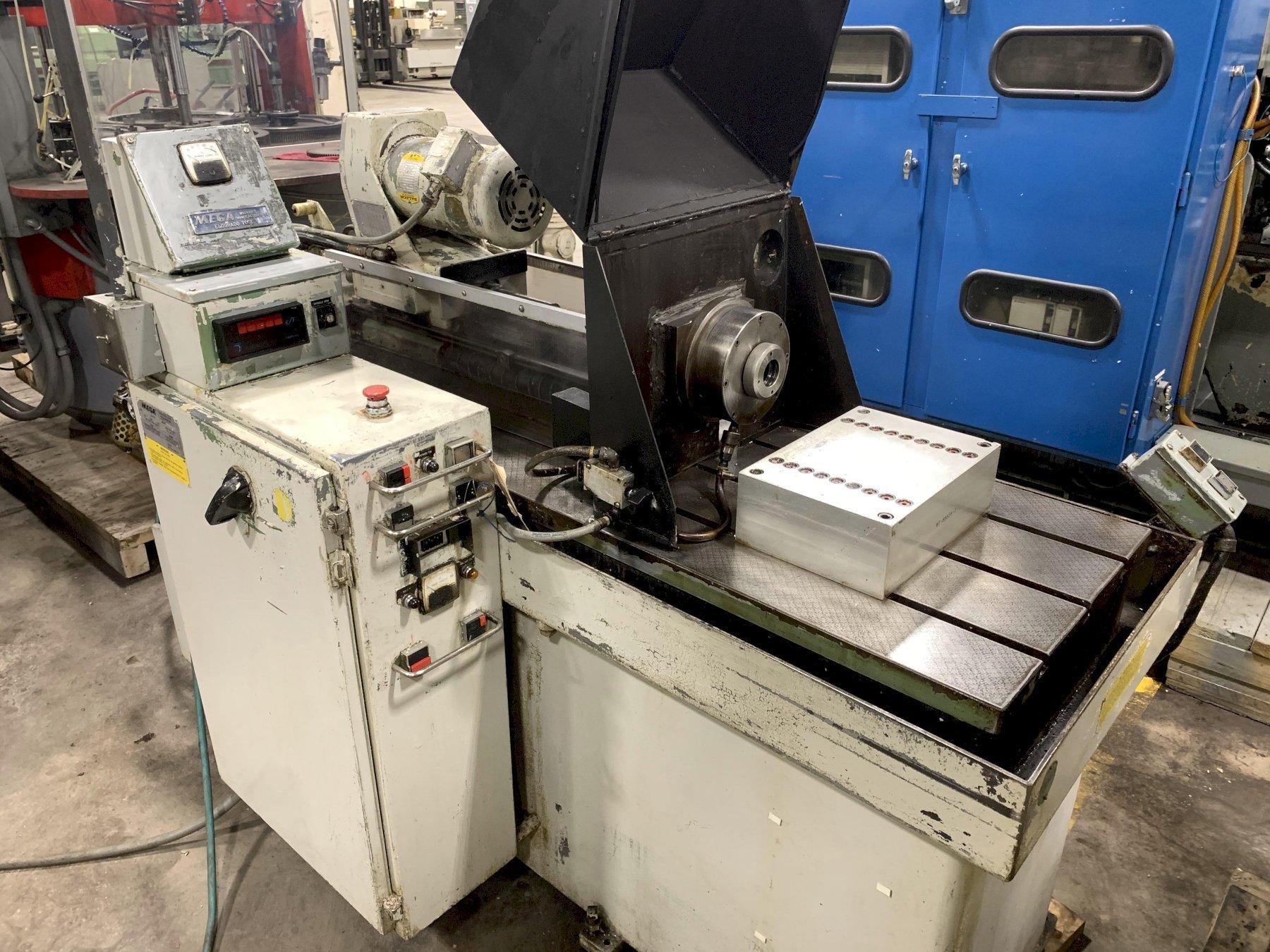

¾” x 15” Single Spindle Eldorado Mega Model M-75-1031 Precision Deep Hole Gun Drill

Model
M-75-1031

Stock #
HSD1155

Condition
Used

Year
1995

Location
Lake Bluff, Illinois
United States

Specifications

Drilling Diameter Maximum .75 inches
Drilling Diameter Minimum .055 inches
Maximum Drilling Depth 15 inches
Spindle Speeds (Variable) 0- 5500 RPM
Feed Rate: Drilling .1 - 99.9 IPM
Feed Rate: Rapid 200 IPM
Work Table (T-Slotted) 22" x 22"
Straightness per 12" .001 inches
Coolant Pressure, Maximum 1500 PSI
Reservoir Capacity 18 GPM
Filtration 5 Micron

Equipped With

Motor Driven With 2 HP, 3 Phase, 60 Cycle, 460 Volt Spindle Drive with Vee-Arc Variable Speed Controller. 7.5 HP, 3 Phase, 60 Cycle Coolant System. Complete Electrical Controls. 1 HP DC Servo Feed Motor.

Ball Screw Driven Drill Feed. Eldorado F18 "Mega Flo" High Pressure Coolant System with Filtration And Heat Exchanger.  Mega Centrifuge.  AC Variable Speed Spindle with LED Readout of RPM.   Pneumatic collet type Workholding. Thumb Wheel Feed Rate. Feed Thrust Load Meter. Spindle Load Meter.  Chip Box. Automatic Slideway Lubrication.
