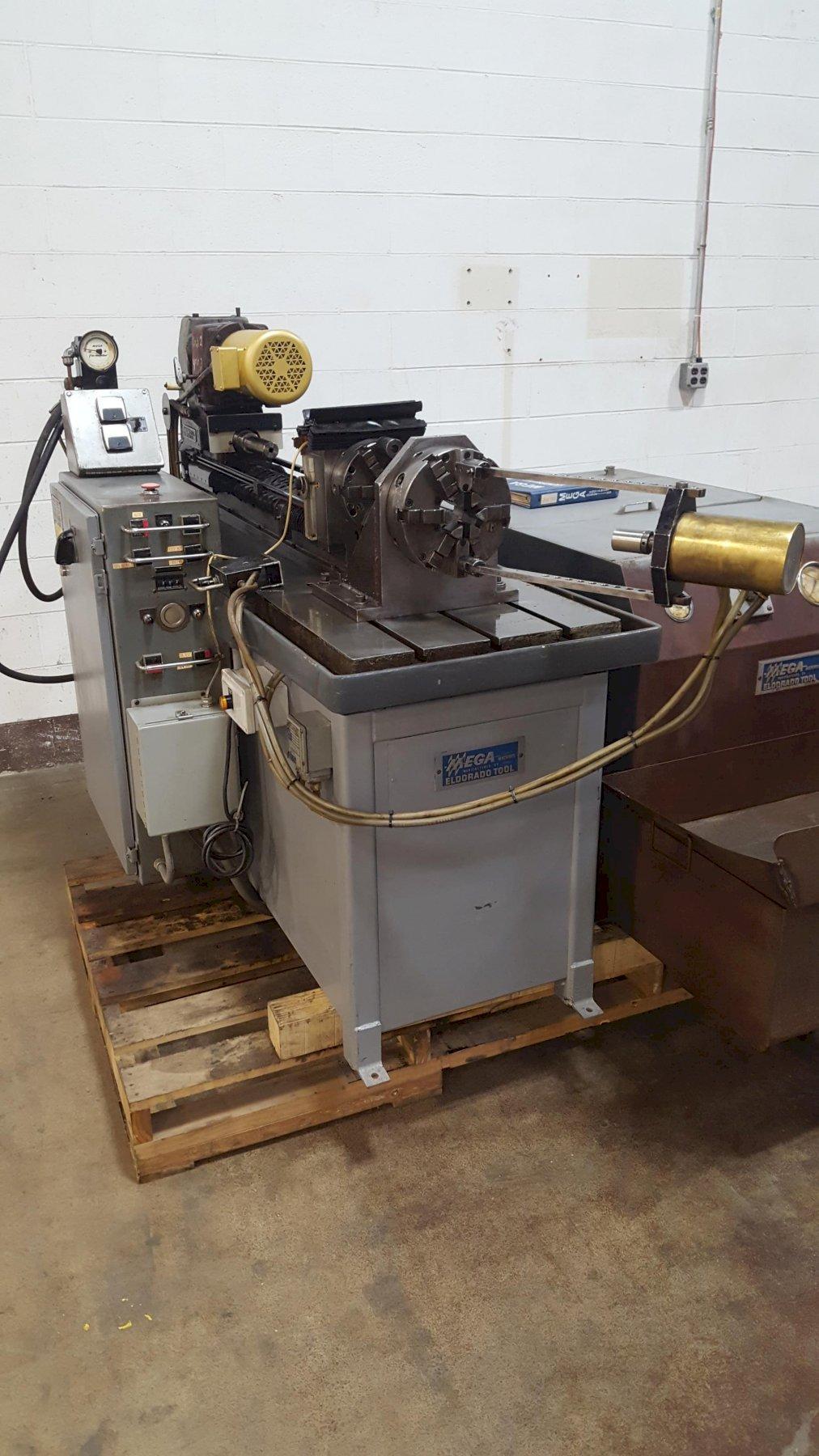

¾” x 30” ElDorado/Mega Model M-75-1041 Precision Deep Hole Gun Drill

Model
M-75-1041

Stock #
HSD1147

Condition
Used

Year
1984

Location
Lake Bluff, Illinois
United States

Specifications

Maximum Drilling Diameter 0.75 inches
Minimum Drilling Diameter 0.055 inches
Maximum Drilling Depth 30 inches
Spindle Speeds 725 - 5860 RPM
Drilling Feed Rate .1 - 99.9 RPM
Rapid Feedrate 200 IPM
Work Table 22" x 22"
Height of Spindle Centerline 8 inches
Straightness per 12" 0.001 inches
Maximum Coolant Pressure 1500 PSI
Reservoir Capacity 60 gallons

Equipped With

Motor Driven With 2 HP 1755 RPM, 3 Phase, 60 Cycle, 460 Volt Spindle Drive. 4-Speed Lima Gear Box. 7.5 HP, 3 Phase, 60 Cycle Coolant System. Complete Electrical Controls. 1 HP DC Servo Feed Motor.

Ball Screw Driven Drill Feed. Eldorado F18 "Mega Flo" High Pressure Coolant System With Filtration And Heat Exchanger. Ball Screw Driven Headstock Feed System. Thumbwheel Feed Rate. Feed Thrust Load Meter. Chip Box. Automatic Slideway Lubrication. Spindle Load Meter. Megaflo Flo-Minder. 6" 6-Jaw Chuck. Whip Guide. Large Quantity Of Drill Master Gun Drills. Assorted Bushings. Miscellaneous Tooling and Repair Parts.

Cleaned, Cycled, Guaranteed.
