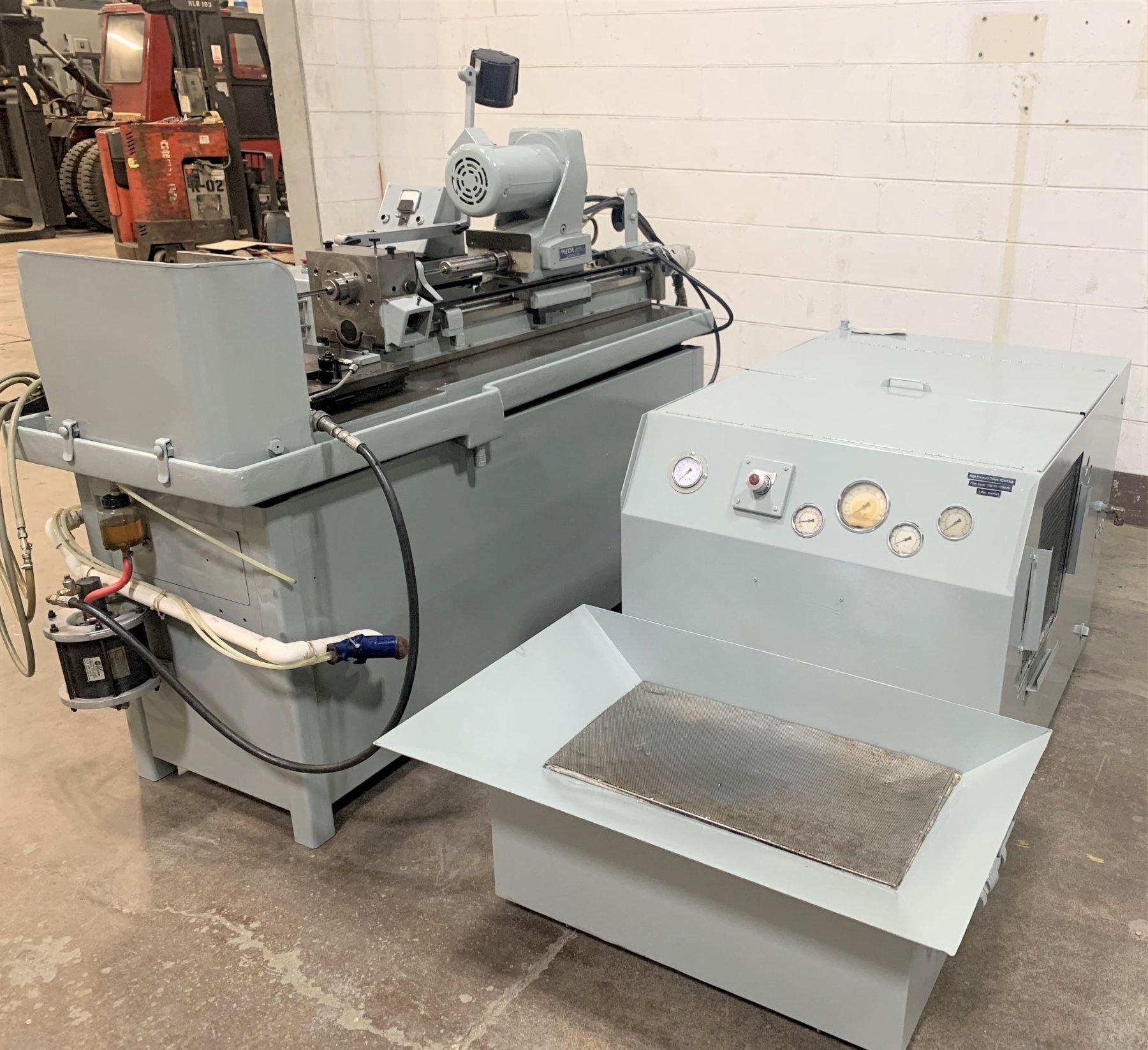

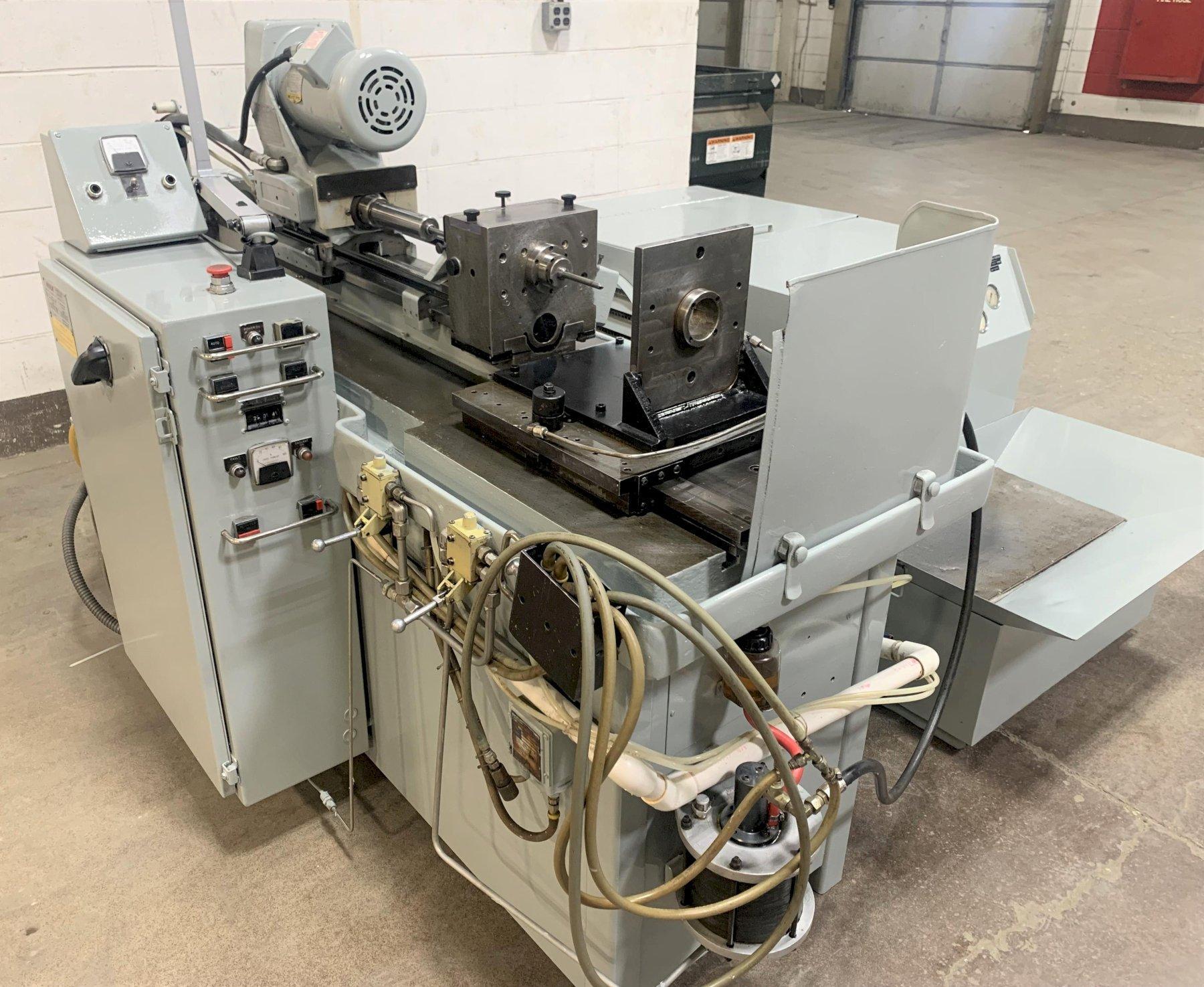

Brand
ELDORADO MEGA
Model

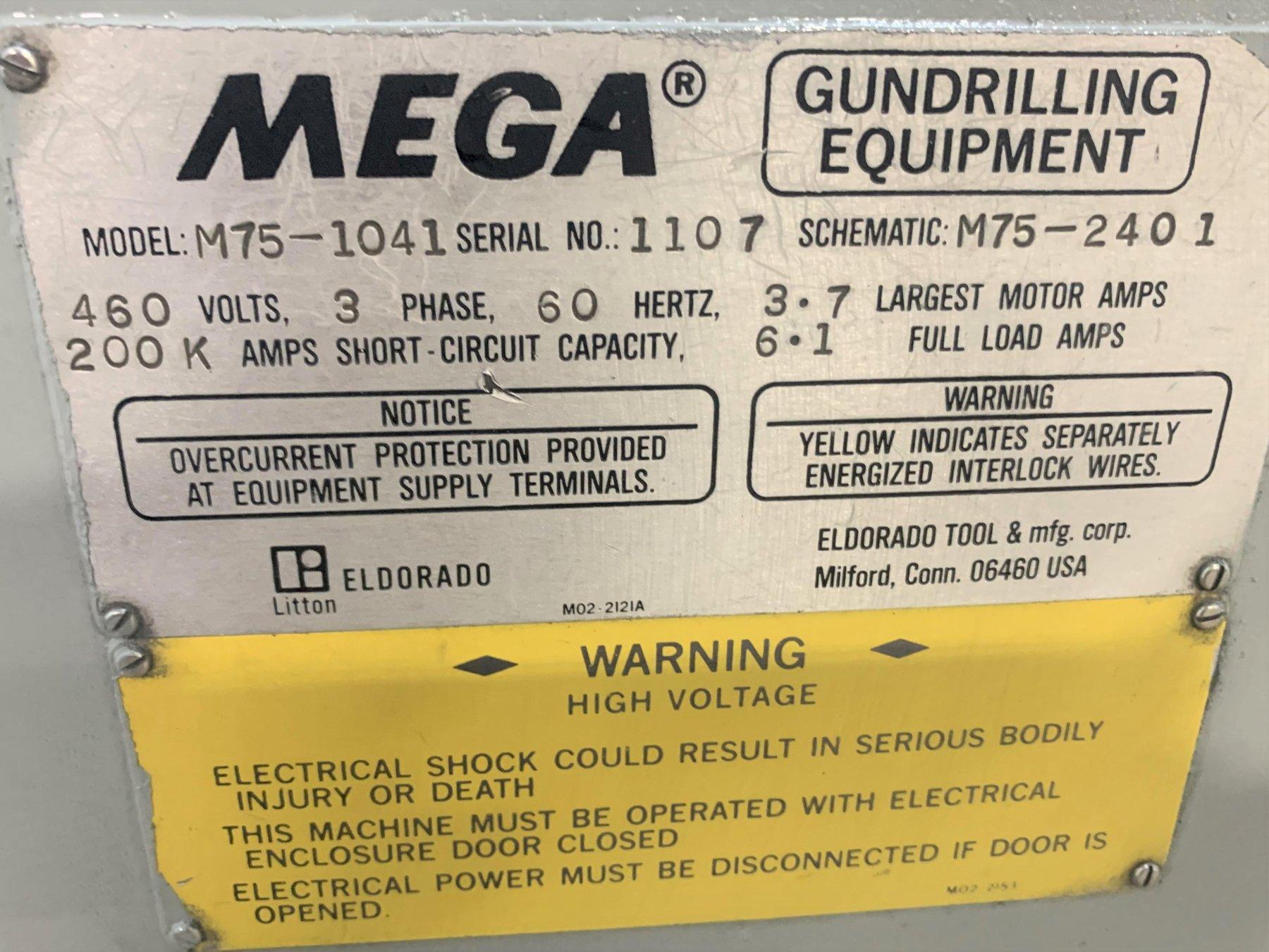

M-75-1041
Type
Drills, Gun
Stock #
HSD1176
Condition
Used
Year
1985
Location
Lake Bluff, Illinois
United States
| Maximum Drilling Diameter | 0.75 inches |
| Minimum Drilling Diameter | 0.055 inches |
| Maximum Drilling Depth | 30 inches |
| Drilling Feed Rate | .1 - 99.9 RPM |
| Spindle Speed (By Pulley) | 480 – 3,895 RPM |
| Rapid Feedrate | 200 IPM |
| Work Table | 22" x 22" |
| Height of Spindle Centerline | 8 inches |
| Straightness per 12" | 0.001 inches |
| Maximum Coolant Pressure | 1500 PSI |
| Reservoir Capacity | 60 gallons |
| Wired For | 3/60/208-230 V |
EQUIPPED WITH:
Motor-Driven With 1.5 HP 1,140 RPM, 3 Phase, 60 Cycle, 460 Volt Spindle Drive. 7.5 HP, 3 Phase, 60 Cycle Coolant System. Complete Electrical Controls. 1 HP Feed Motor.

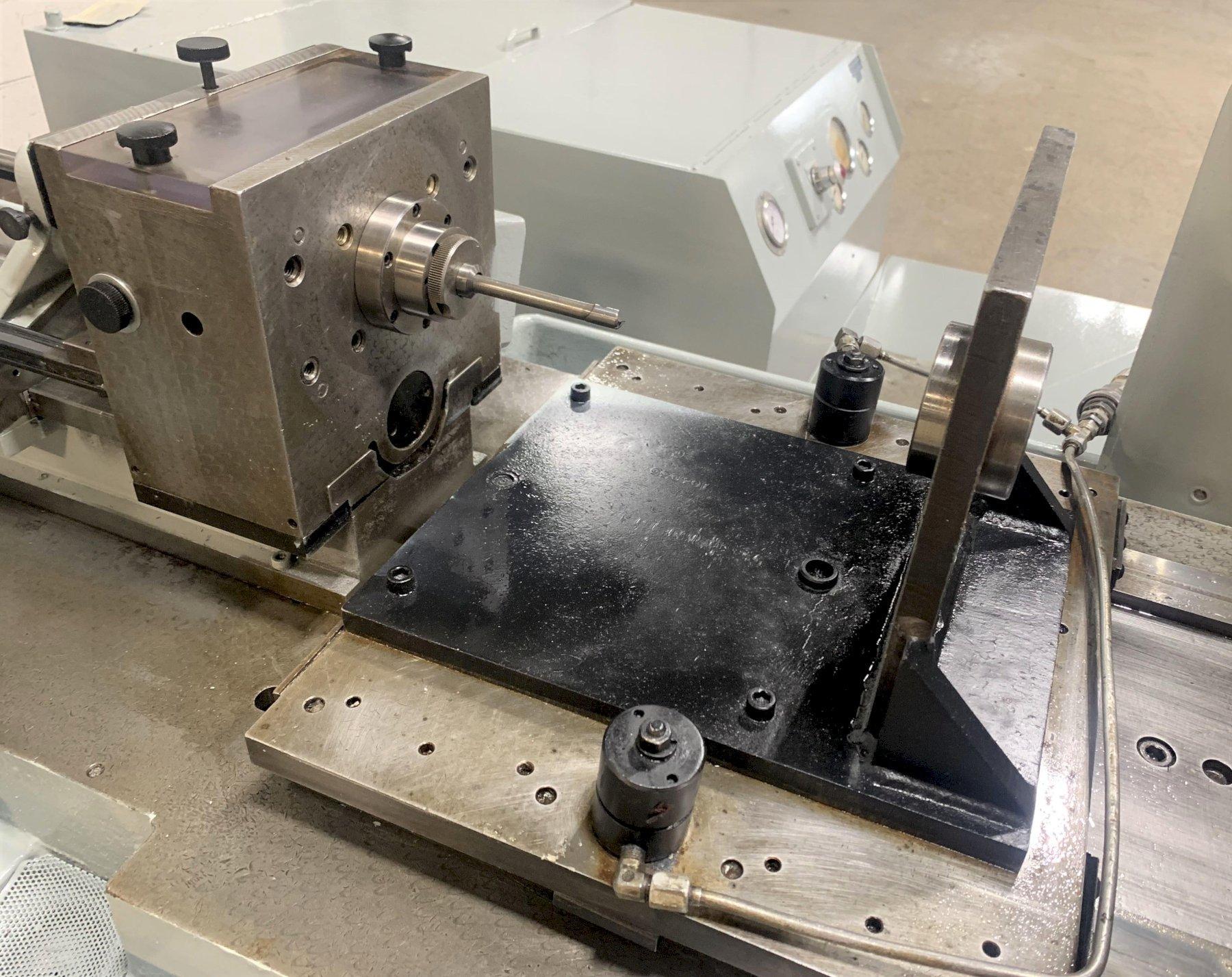

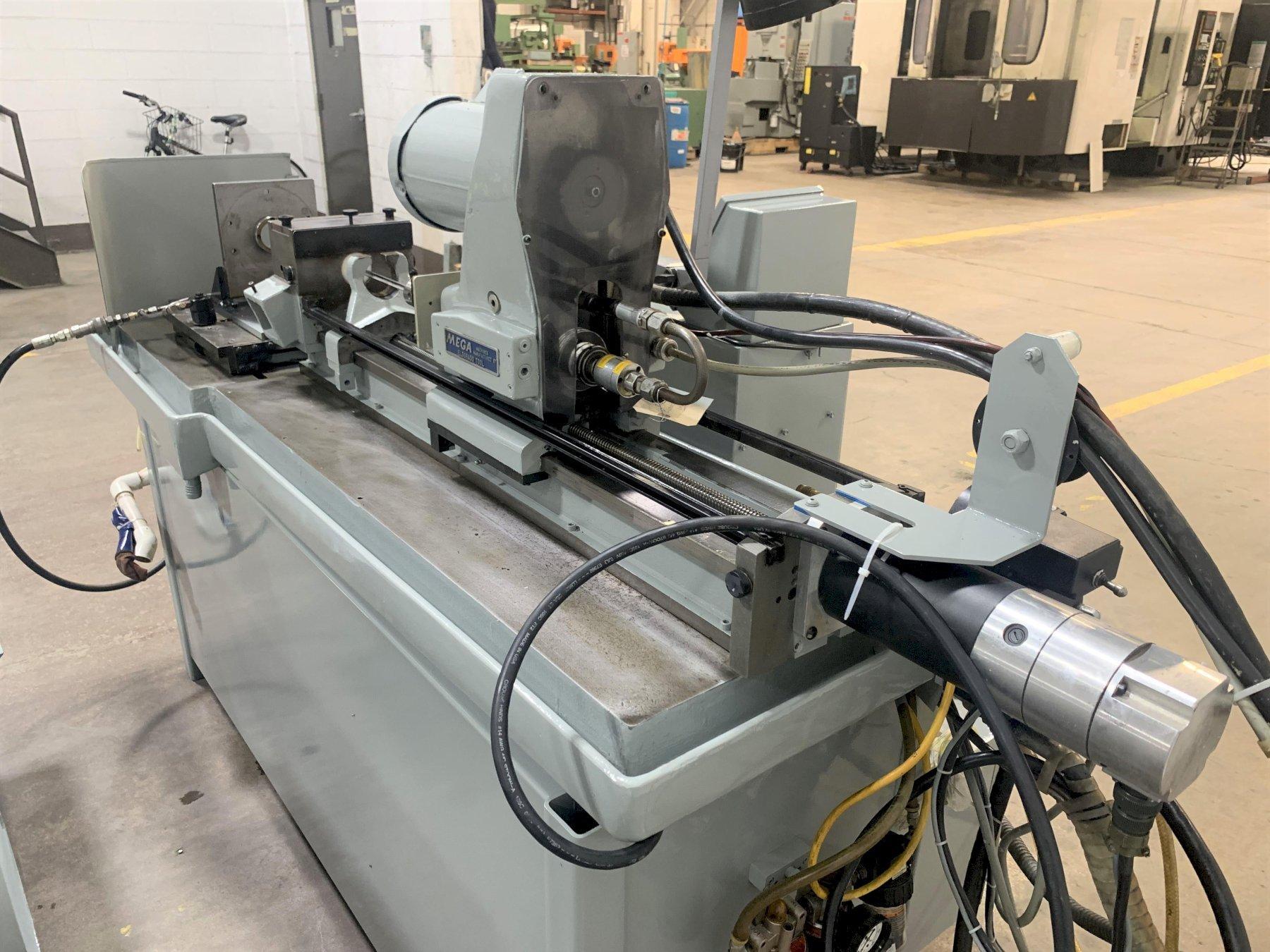

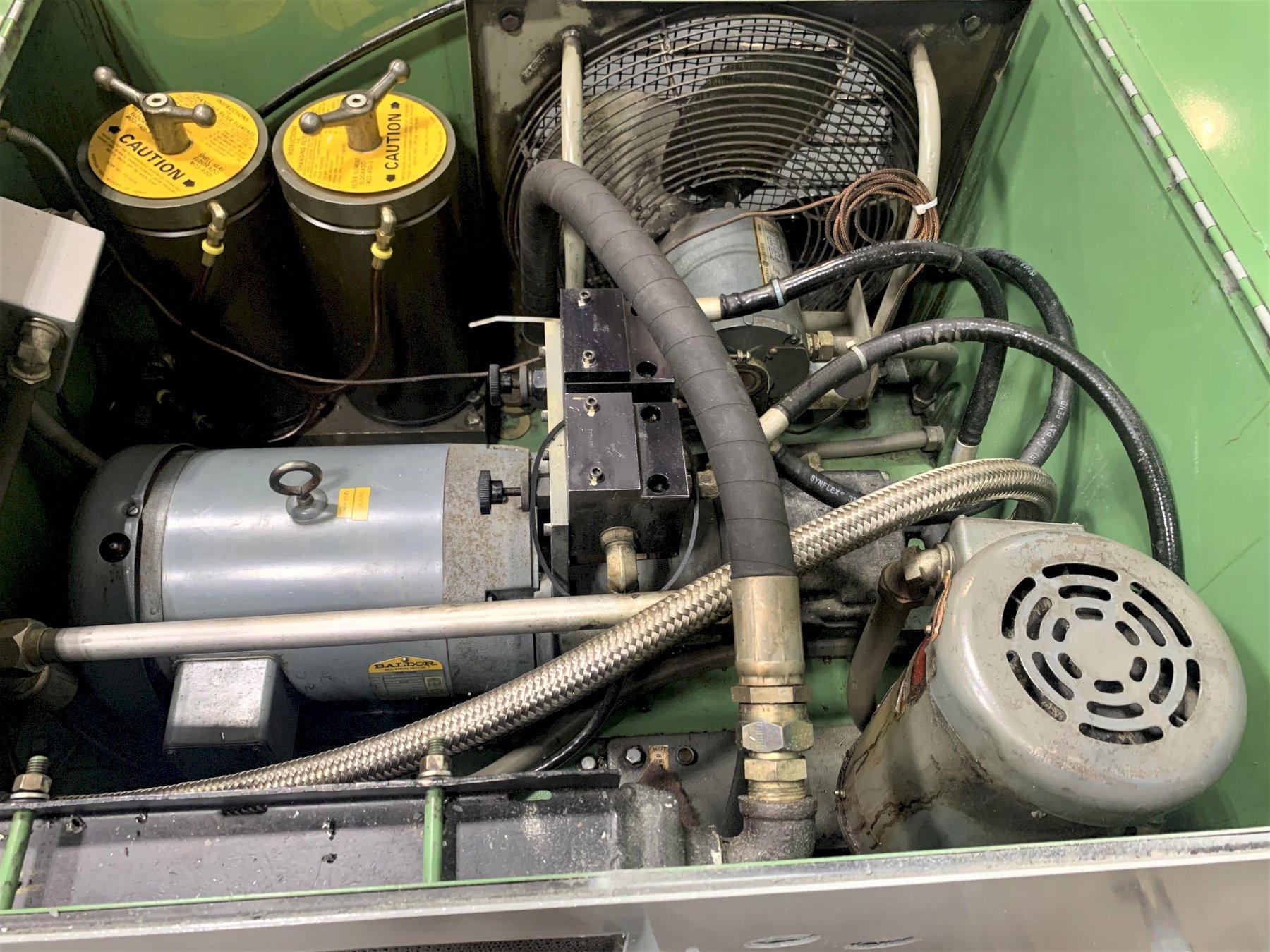

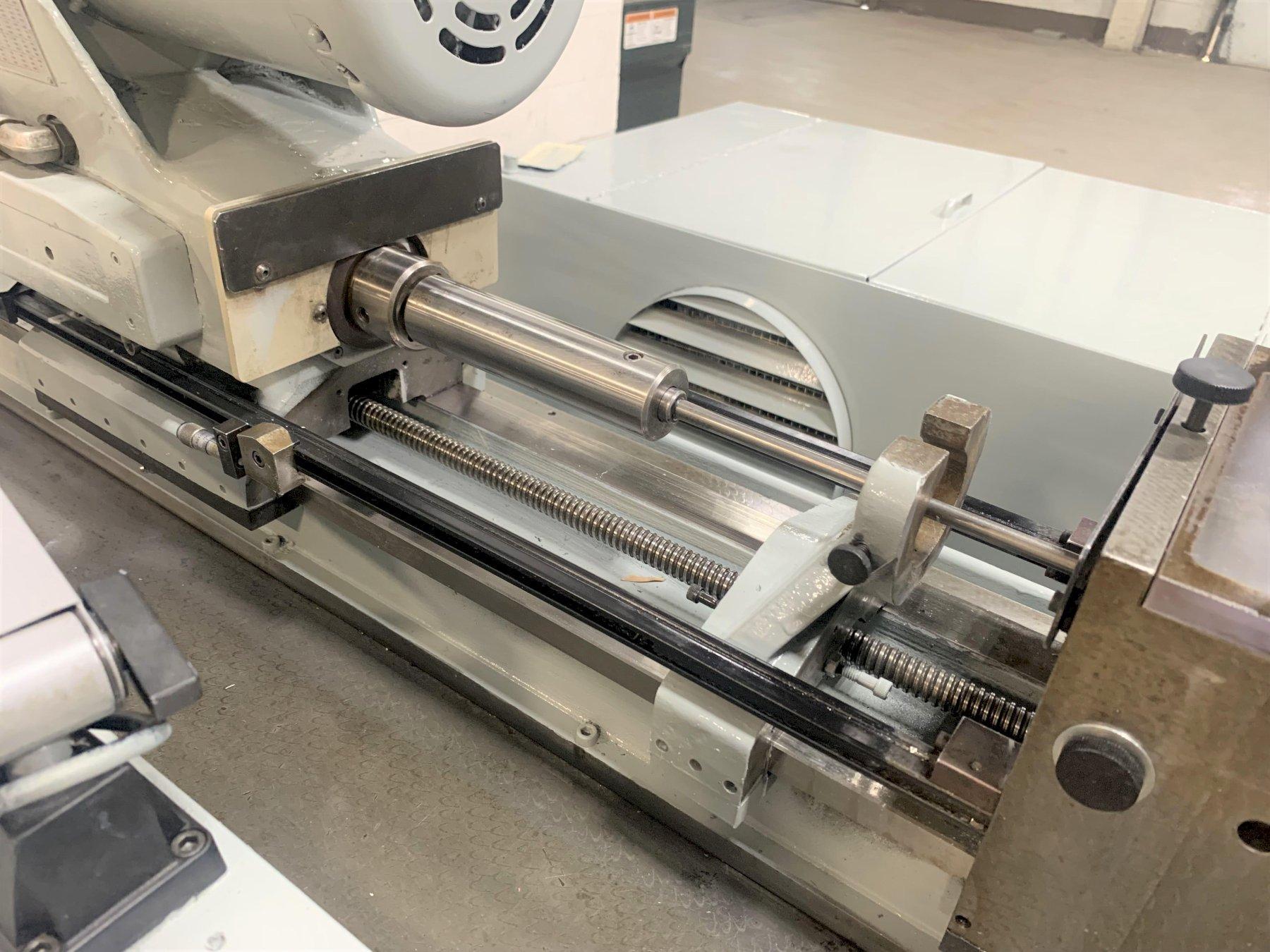

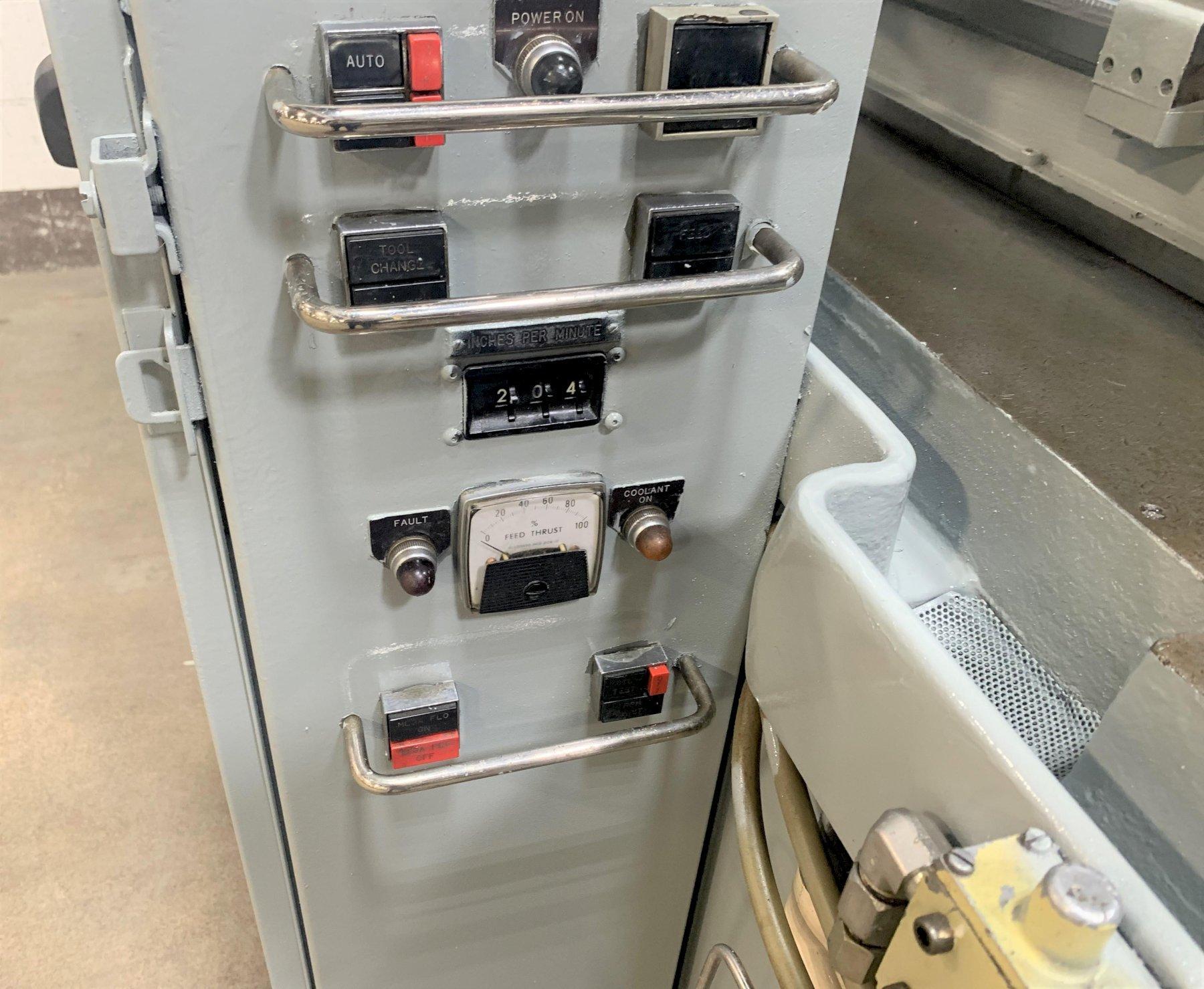

Ball Screw Driven Drill Feed. Eldorado F18 "Mega Flo" High-Pressure Coolant System with Filtration and Heat Exchanger. Ball Screw Driven Headstock Feed System. Thumbwheel Feed Rate. Feed Thrust Load Meter. Chip Box. Automatic Slideway Lubrication. Spindle Load Meter. “Mega Flo” Flo-Minder. Whip Guide. Pneumatic Positioning Fixture Table. Work Light.
