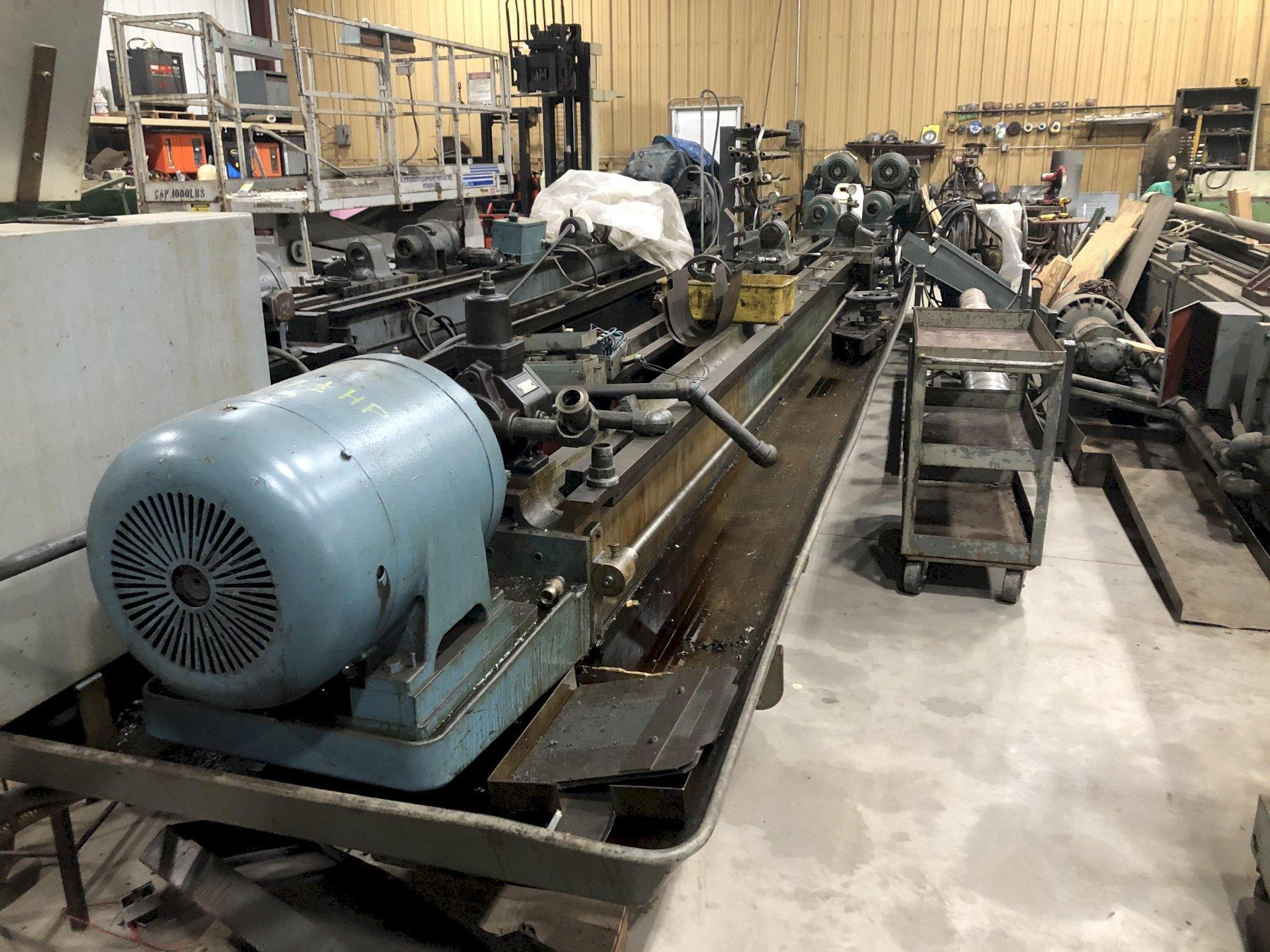

1 ½B x 81” Pratt & Whitney Deep Hole Drilling Machine

Model
1 ½B

Stock #
hsd112cx

Condition
Used

Year

Location
City Not Specified, Illinois
United States

Specifications

Drilling Capacity, Diameter 1" - 2"
Drilling Capacity, Length 81 inches
Swing over Bed, Diameter 10 inches
Distance between Spindles 12 inches
Feed per Revolution of Spindle .0005" - .011"
Spindle Drive Motor (2) 10HP
Spindle Speeds (Variable) 115 - 854 RPM
Pump Motors, Constant Speed (2) 7.5 HP
Floor Space (L x W) 334" x 40"
Approximate Weight 15000 pounds

Equipped With

DC Variable Speed Spindle Drives. Large Assortment of Feed Gears. Stationary Tool. Rotating Work Spindles. Built-In High-Pressure Coolant System. (2) Independent Drilling Spindles. Drilling Feeding Slide. Combination Drill Guide/Work Support Carriage.

This machine appears to be in good operating condition and can be inspected under power at your convenience.

It is being offered with a 1 ½B x 37” Machine (1 Spindle Complete). Details Available.  Priced for the package.
