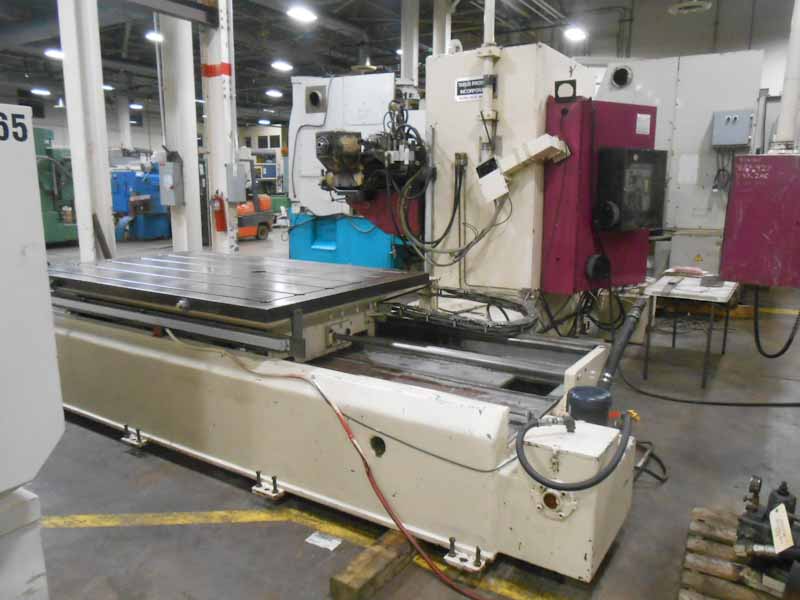

1-1/4" x 72" Tarus TPGD Traveling Table Gun Drilling Machine

Brand
TARUS

Model
TPGD

Stock #
hsd1142

Condition
Used

Year
1979

Location
Lake Bluff, Illinois
United States

Specifications

Maximum Drilling Diameter 1.25 inches
Maximum Drilling Depth 93 inches
Minimum Drilling Diameter 0.187 inches
X-Axis Travel Table 84 inches
Y-Axis Travel (Vertical Head) 42 inches
Z-Axis Travel (Drilling Stroke) 72 inches
Auxiliary Drill Travel (Rack & Pinion Extension) 21 inches
Table Size, T-Slotted 60" x 96"
Hydraulic Motor 5 HP
Spindle Motor 15 HP
Approximate Weight 38000 pounds
F.O.B. Our Plant

Equipped With

RETROFIT 2000.

Autocon Dynapath Delta 50 CNC Control. 60" x 96" T-Slotted Table With Programmable Positioning. 42" Vertical Spindle Travel With Programmable Positioning. Ball Screw Driven Programmable Spindle Feed. Rack And Pinion For 19" Of Auxiliary Drill Travel Positioning. (1) Jiffy Hydraulic Auxiliary Spindle (No. 5 MT)  For Drilling, Tapping And Spotting. High Pressure Coolant System. Tank In Base. Large Quantity of Lead Screws for the Jiffy Tapping Head.
