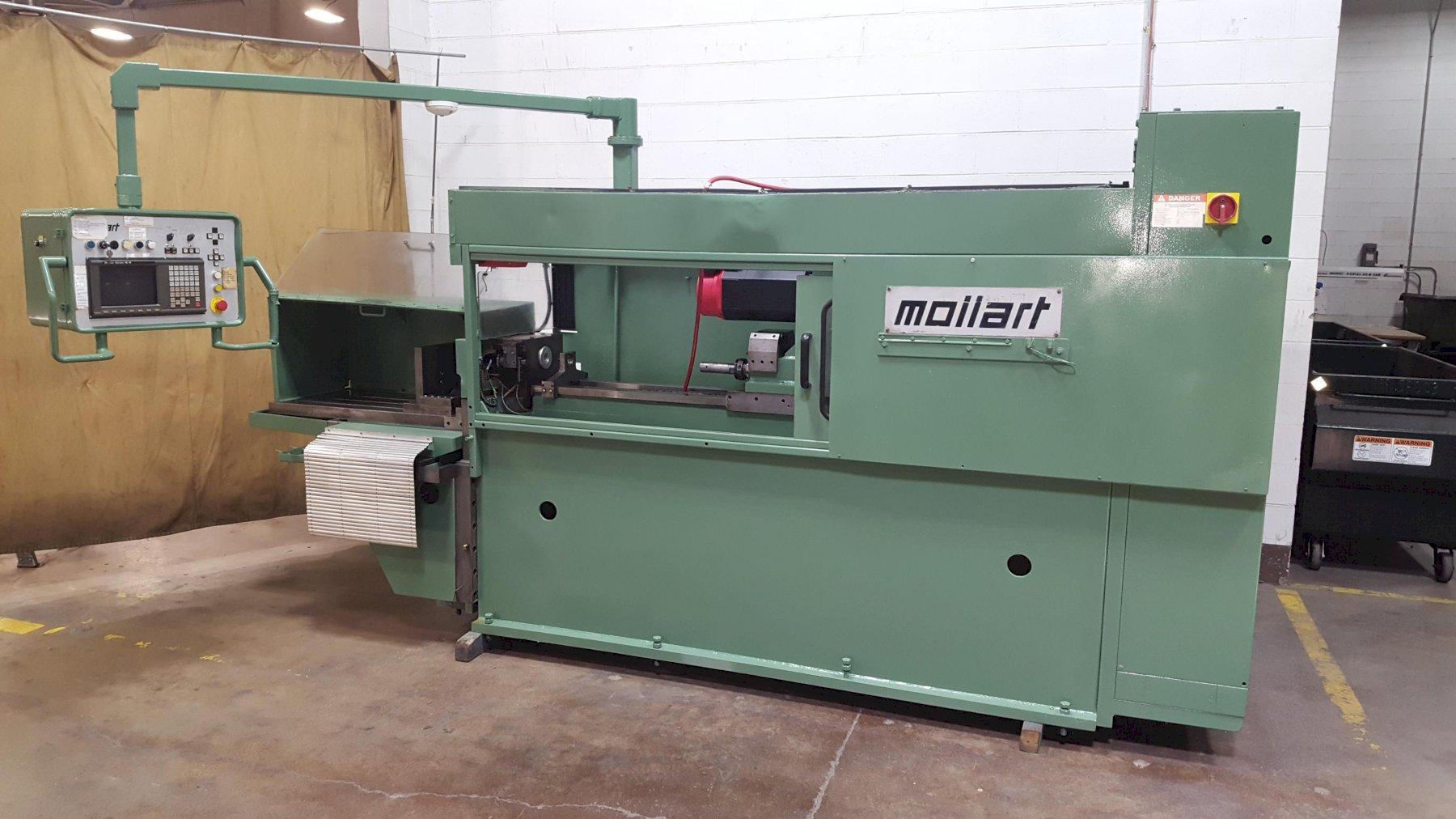

1” x 40” Mollart CNC OmniSprint Knee Type Gun Drilling Machine

Brand
MOLLART

Model
FHK

Stock #
hsd1148

Condition
Used

Year
1994

Location
Lake Bluff, Illinois
United States

Specifications

Gun Drilling Diameter Range 0.078" - 1"
Drilling Depth and/or Maximum Stroke 40 inches
Max. Drilling Stroke 48 inches
Spindle Type 36mm Collet
X-Axis Travel 20 inches
Y-Axis Travel 10 inches
Machine Table Dimensions 24" x 40"
Spindle Power 11 HP
Spindle Speed: HI 30 / 6000 RPM
Spindle Speed: LOW 30 / 3750 RPM
Axis Feedrate (X,Y, Z) 80 in/min
Rapid Traverse Rate (X, Z) 394 in/min
Rapid Traverse Rate (Y) 160 in/min
Coolant Tank Capacity 320 gallons
Coolant Flow 0 - 24 gal/min
Maximum Coolant Pressure 1450 PSI
Approximate Weight 13500 pounds

Equipped With

Fanuc 18M 3-Axis CNC Control. Pendant Mounted CRT and Keyboard with Remote MPG. 3-Axis Control and additional program for Touch Probe. Bushing Retraction Coolant. 24” x 24” T-Slotted Knee with Programmable Cross and Vertical Travels. 24” x 40” T-Slotted Bolster Plate. Mollart High Pressure Coolant and Filtration System with Chiller. Lubrication System. Work Enclosure. Travelling Whip Guide.
Cleaned, Cycled, and Guaranteed.
