Specifications
Equipped With

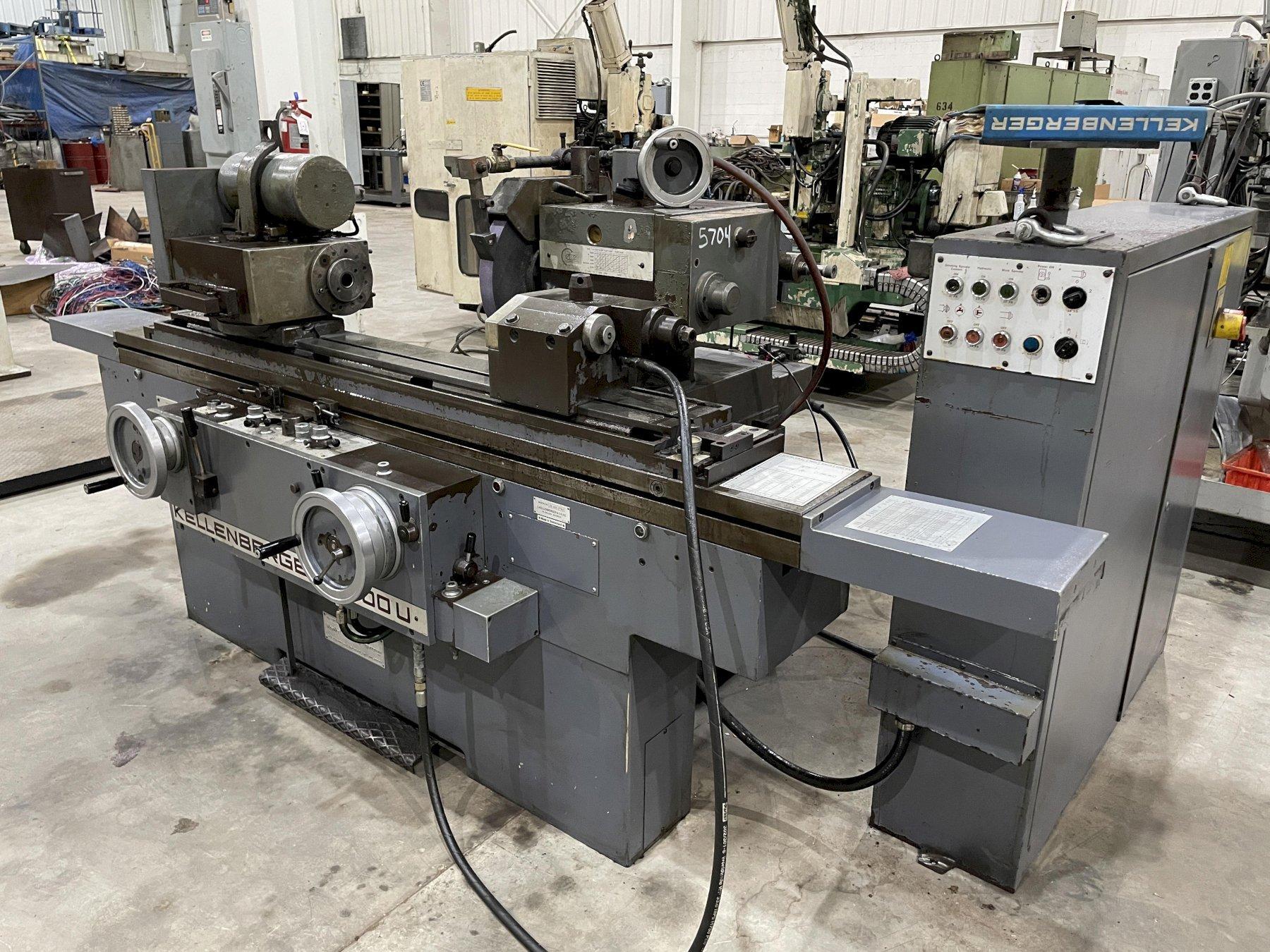

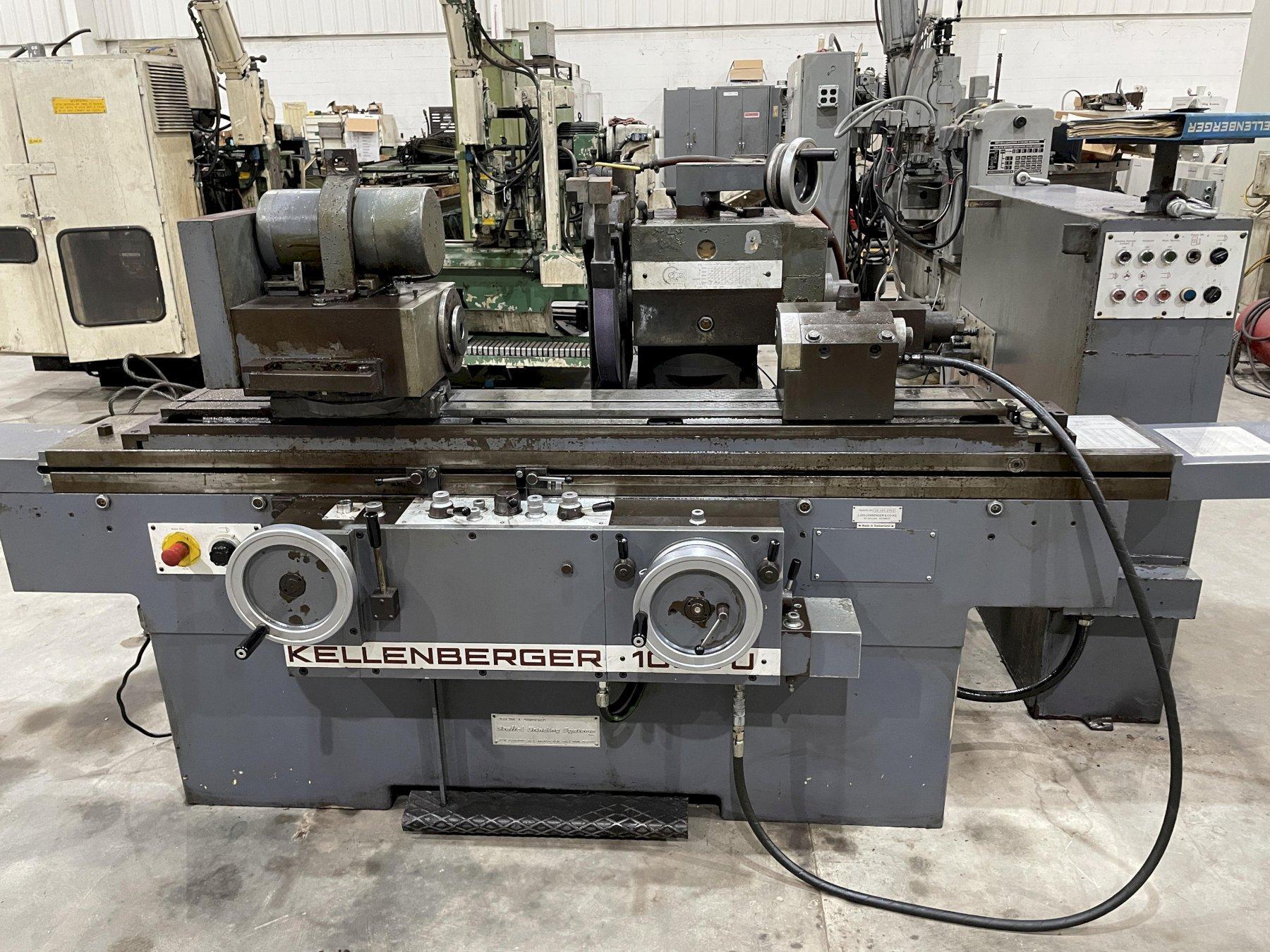

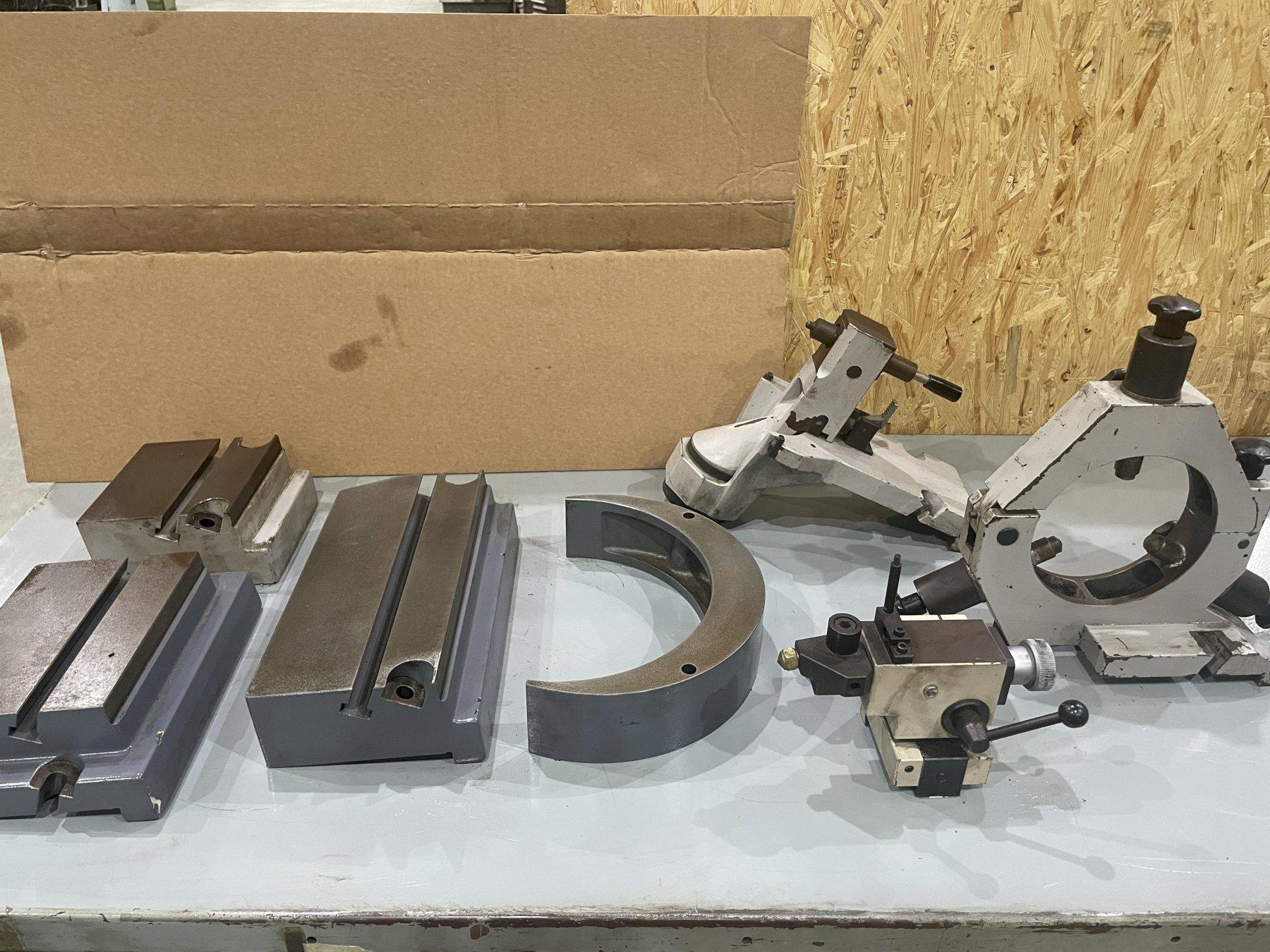

Equipped 360 Degree Swivel WheelHead. LH OD Grinding Wheel. Swing Around ID Grinding Wheel. Hand Wheel Workhead Positioning for Surface Grinding. Riser Blocks for WheelHead, Workhead, Table Mounted Dresser and Tailstock. Variable Speed Swiveling Workhead. Swivel Table. Air Actuated Tailstock with Foot Actuator. Free Standing Electrical Cabinet. Radius Dressing Fixture. Straight Dressing Fixture. Steady Rest. Coolant Pump and Tank. Misc Tooling including Drive Dogs, spare mandrels. Books and Drawings.
Distance between Centers 40"
Maximum Table Travel 51"
Maximum Swing over Table 10"
Maximum Swing over Table with 6" Risers 22"

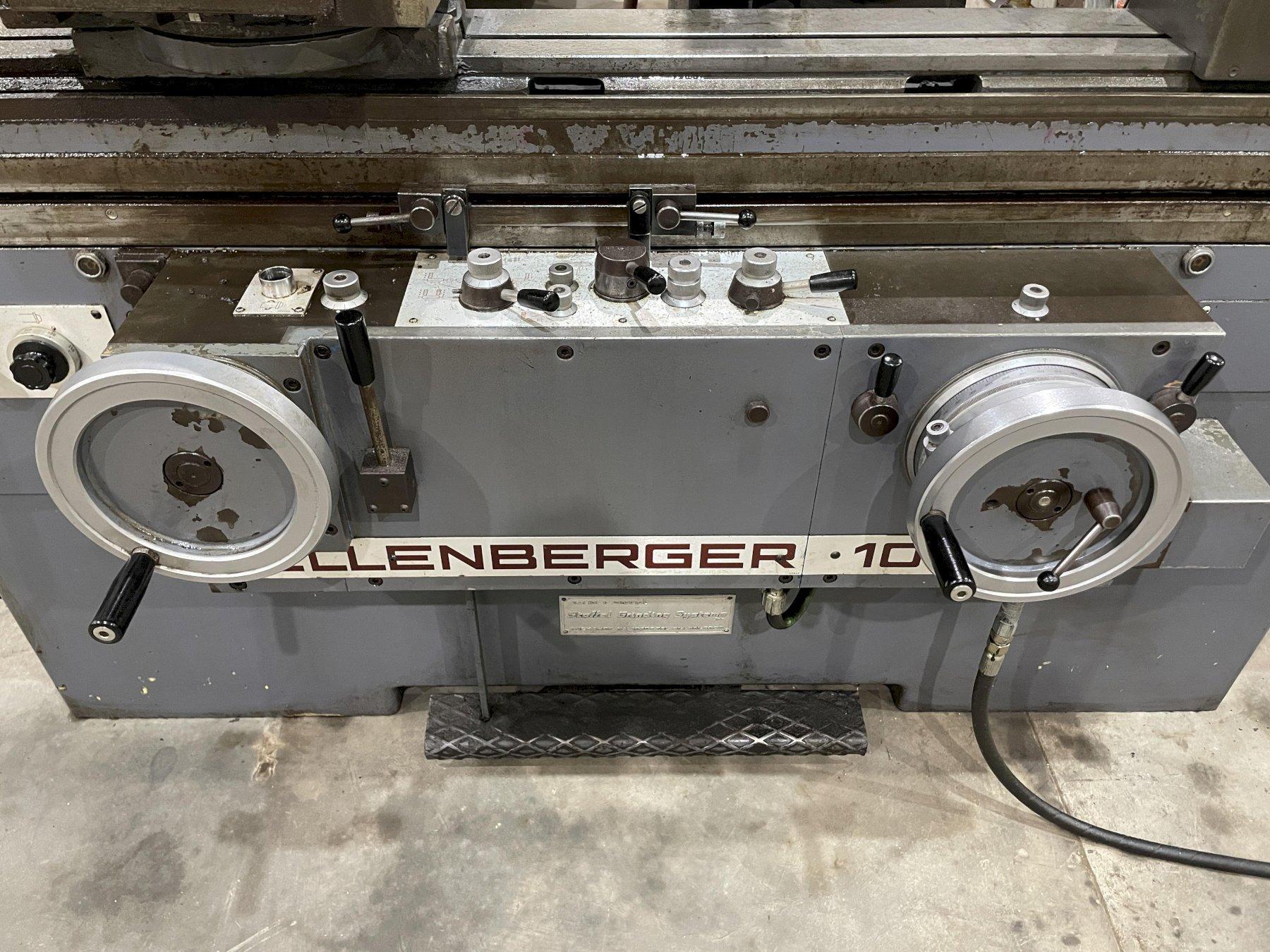

Traverse per Revolution of Handwheel Coarse .8"
Traverse per Revolution of Handwheel Fine .1"
Traverse Speed (Infinitely Variable) .06-18 FPM
Minimum Table Oscillation .1"
Dwell at Reversal (Infinitely Variable) 0.5 Sec
Swivel Range 9�
WHEELSLIDE
Travel with Handwheel Coarse/Fine 9-5/8"
Infeed per Revolution of Handwheel Coarse .3"
Infeed per Revolution of Handwheel Fine .04"
Rapid Advance and Retraction, Hydraulic 1-9/16"
Hydraulic Infeed 0-.035"
Plunge Grinding, Infeed Speed .00001-.0001
Traverse Grinding, Infeed per Table-Slide Reversal .00004-1.18

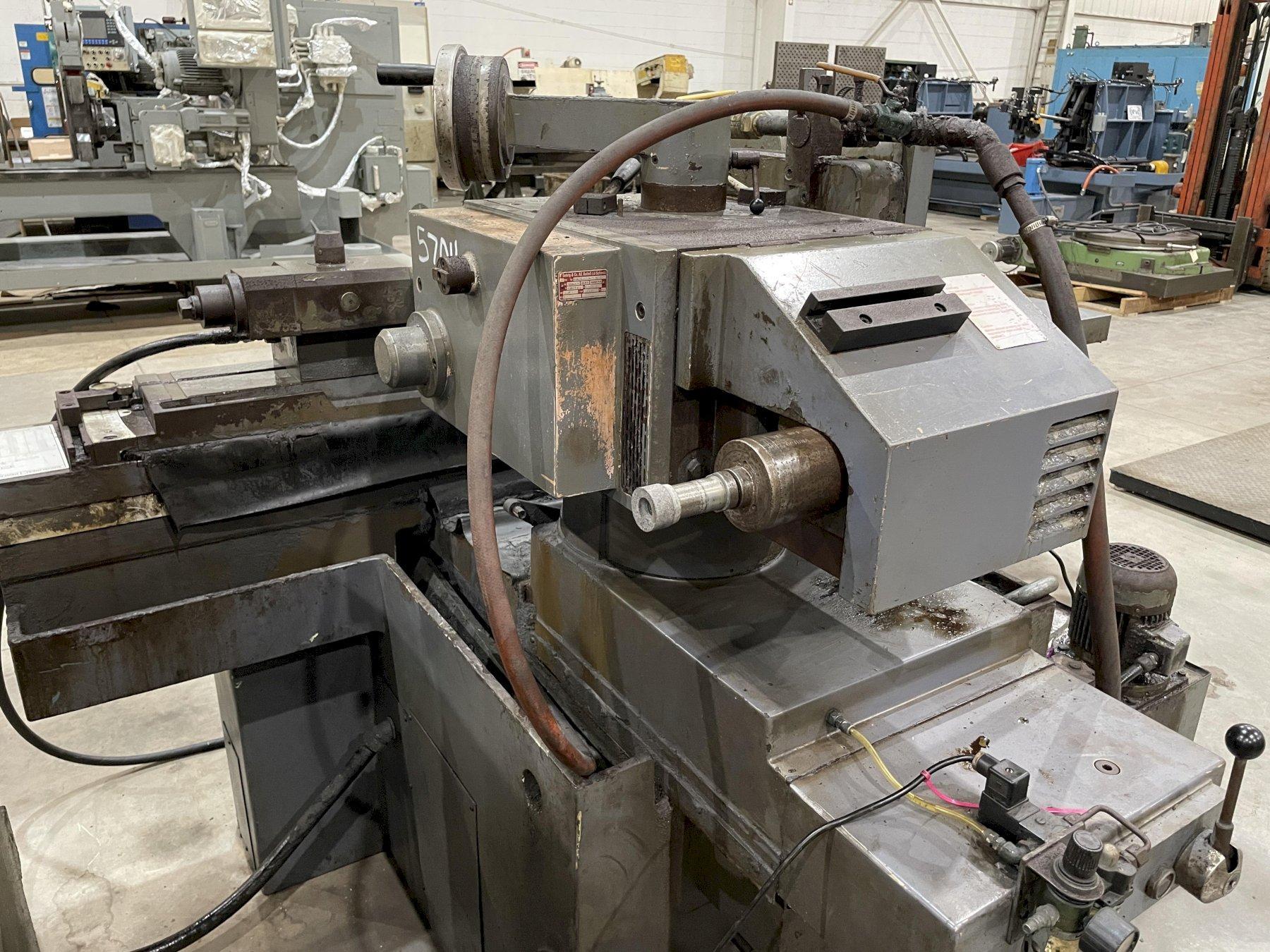

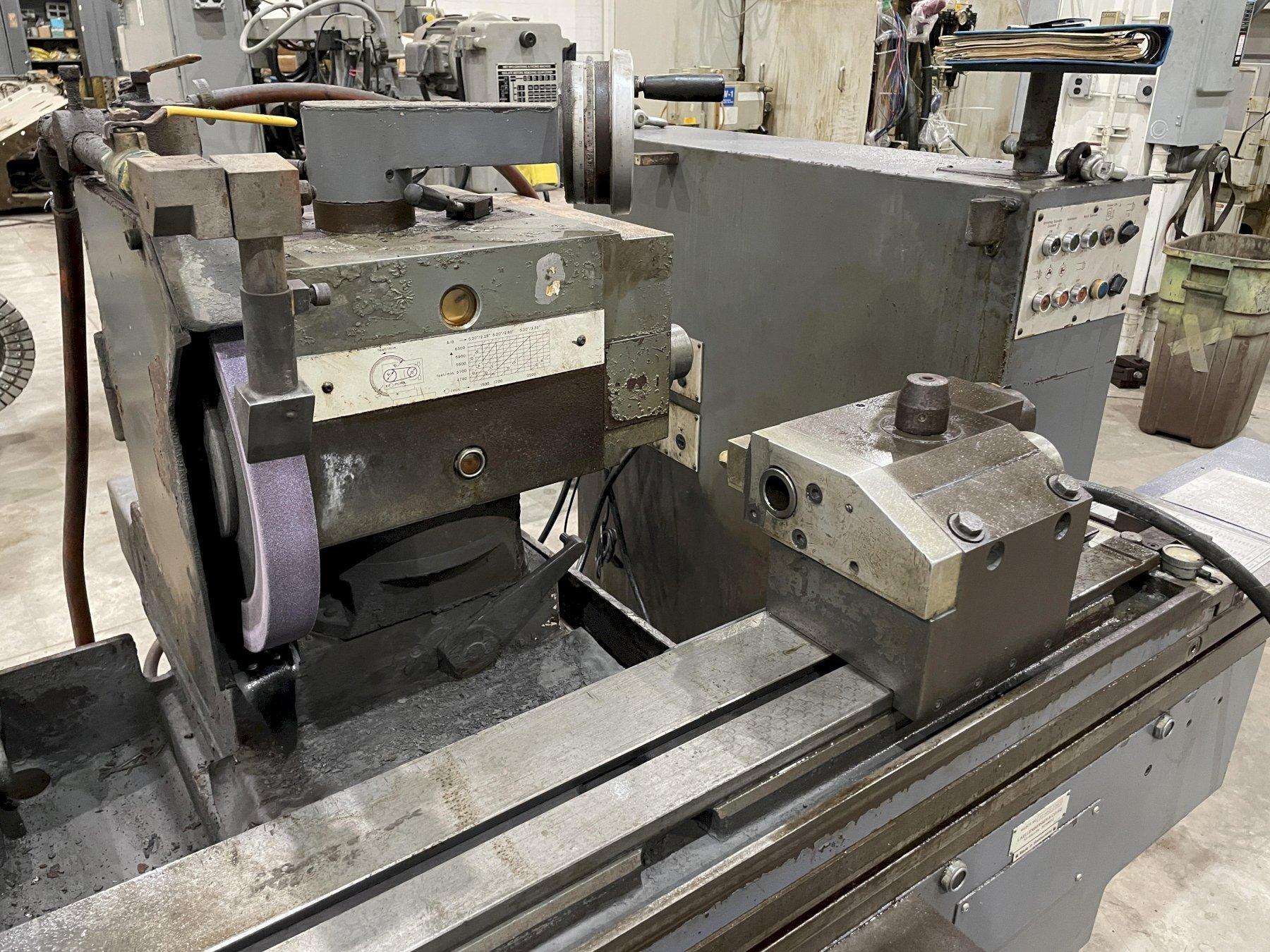

WHEELHEAD
Grinding Wheel for OD Grinding 16" x 2" x 5"
Grinding Wheel for Right Hand Spindle End 9" x �" x 3"
Spindle Speeds 1500, 1700, 2200 RPM
Wheelhead Swivel Range �8 to -195�
Carrier Bore for Internal Grinding Spindles 3-5/32"
Wheelhead Drive 4 HP

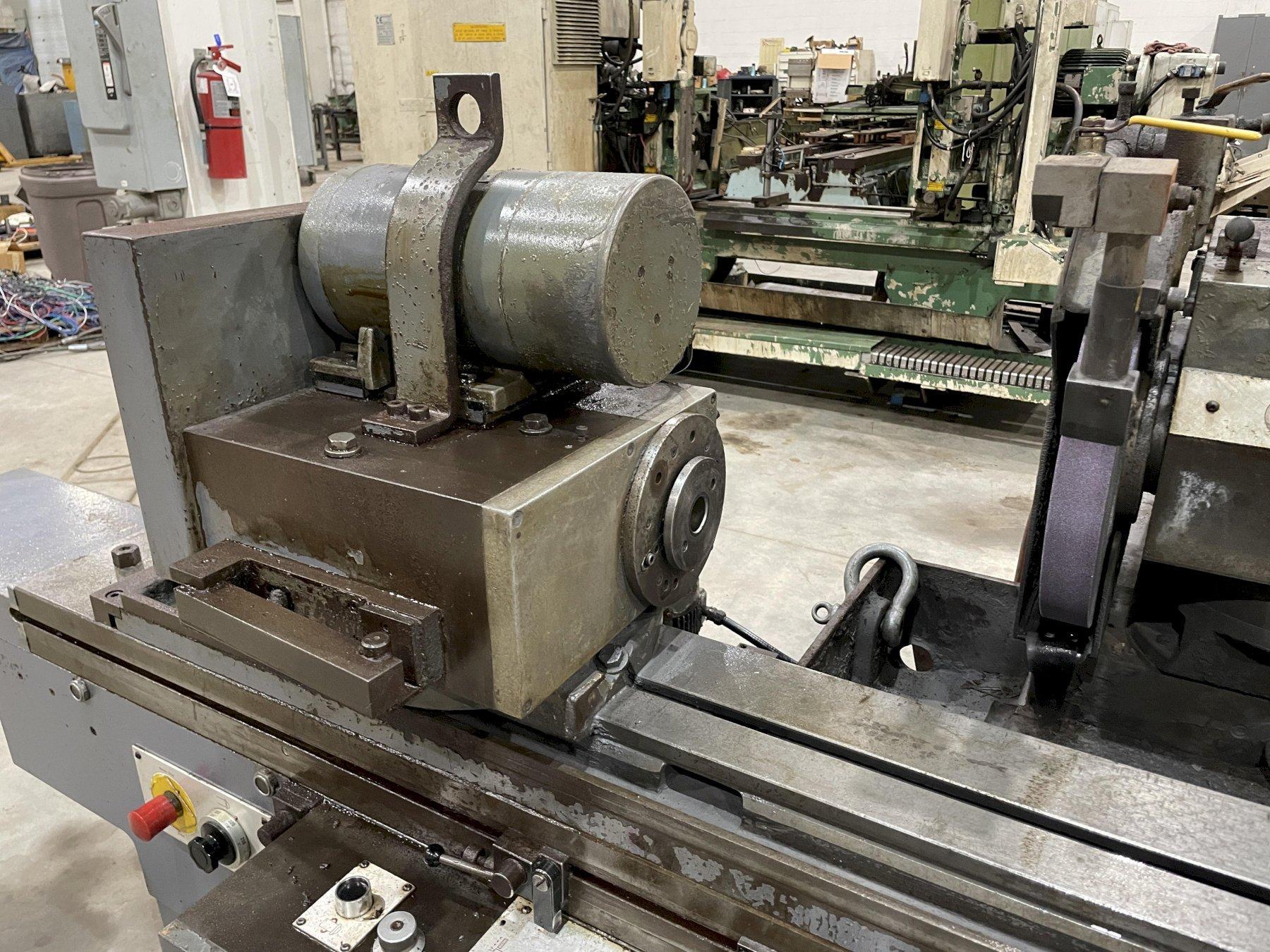

WORKHEAD
Swivel Range 360�
Spindle Speeds (Infinitely Variable) 20-400 RPM
Internal Taper of Work Spindle No. 5 Morse

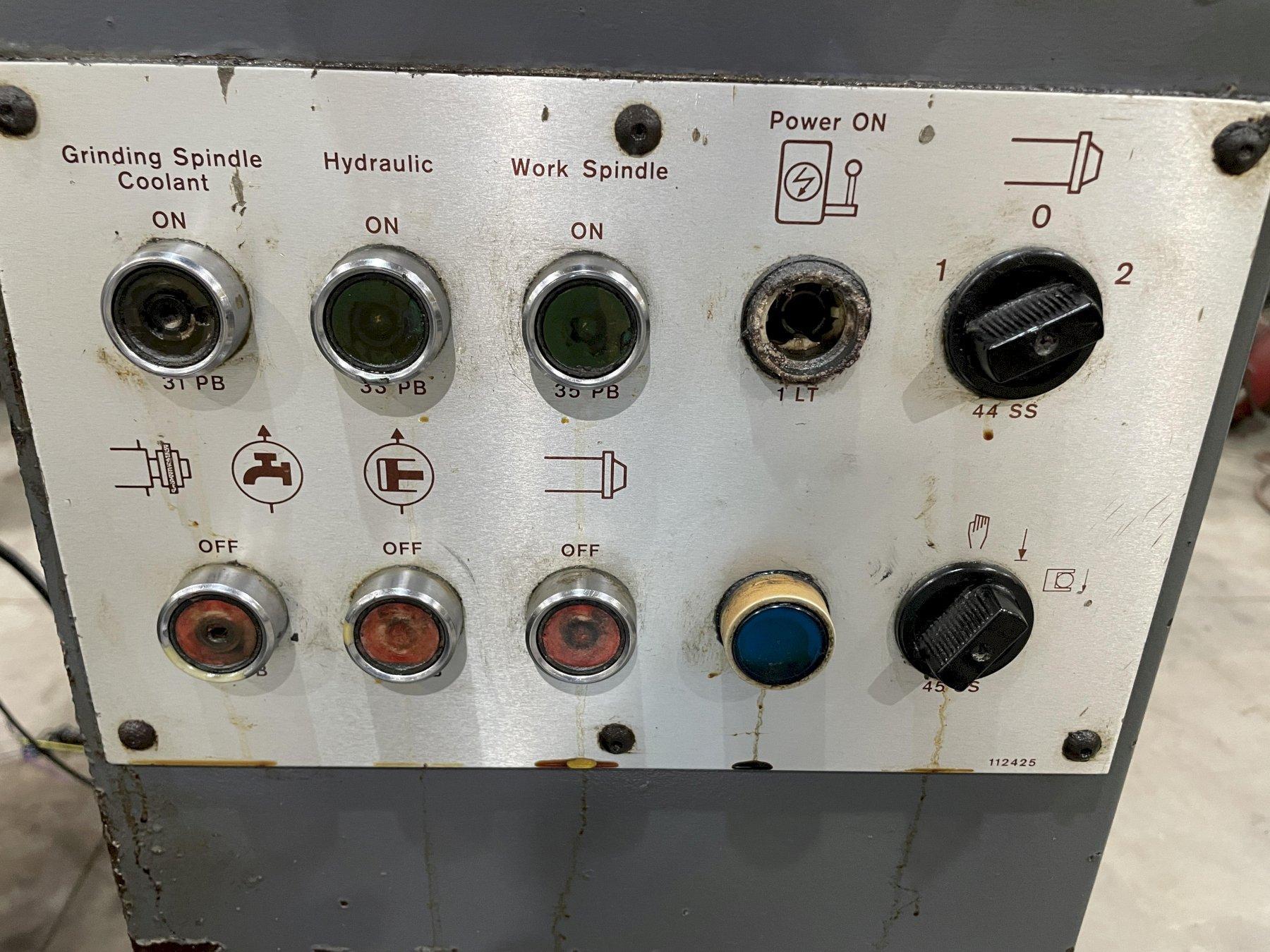

Electrics 3/60/460V
Approximate Weight 8,700 lbs
