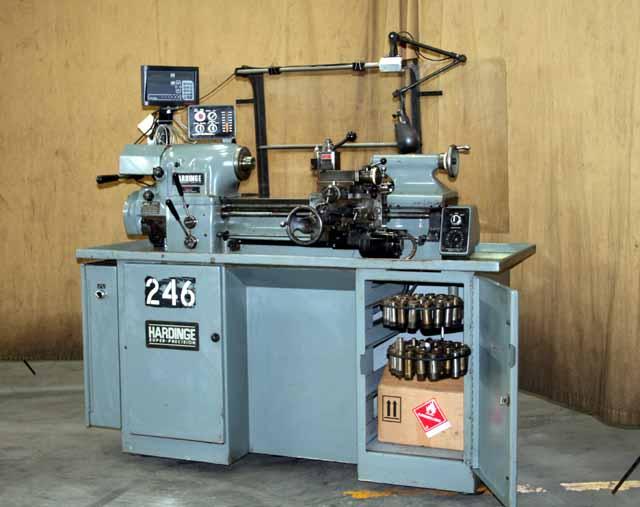

10 x 18 Hardinge Model HLV-H Super Precision High Speed Tool Makers Lathe, DRO, Well tooled, 1995

Brand
HARDINGE

Model
HLV-H

Stock #
l1121

Condition
Used

Year
1995

Location
Lake Bluff, Illinois
United States

Specifications

Spindle Capacity with Round 5C Collets 1.0625 inches
Spindle Capacity with Hexagon 5C Collets 0.875 inches
Spindle Capacity with Square 5C Collets 0.75 inches
Spindle Capacity with Step Chucks 1.0625" - 6 "
Spindle Capacity with Jaw Chucks 5 inches
Variable Spindle Speeds 125 - 3,000 RPM
Swing Over Bed 11 inches
Cross Slide 6 inches
Carriage 9 inches
Distance Between Centers 18 inches
Hole Thru Spindle 1.25 inches
Compound Slide Travel 3 inches
Carriage Power Feed Range 0.3125" - 7 IPM
Cross Slide Power Feed Range 0.1875" - 4 IPM
Tailstock Spindle Travel 3.75 inches
Tailstock Spindle Taper No. 2 MT
Number & Range of Theads (inch)(27) 11 - 108 TPI
Approximate Weight 1700 pounds
F.O.B. Our Plant

Equipped With

Motor Driven with 2 Speed, 3 Phase, 60 Cycle 230 Volt Variable Speed Drive Unit with Direct Reading Spindle Speed Indicator and Controls. Hardinge Super Precision Ball Bearing Spindle. Hardinge Tapered Spindle Nose. Hardened and Ground Dovetail Bed. Independent Variable Power Feed Drive for Carriage and Cross Slide. Quick Change Gear Box.

Leadscrew Inch Threading with Automatic Stop. Tailstock. Newall DP700 DRO. Heavy Duty Ball Bearing Centers. Lever Operated Collet Chuck. Large Quantity of 5C Collets.  Stop Chucks. Auxiliary Change Gear Box with Change Gears. Aloris Toolholder with Interchangeable Toolholders. Indicator Carriage Stop. Inch Reading Dials. Coolant. Worklight.

This machine is being offered thoroughly checked out in our shop, cleaned and cycled.  It is being offered with a 30-Day Return Privilege and may be inspected under power here in our plant.
