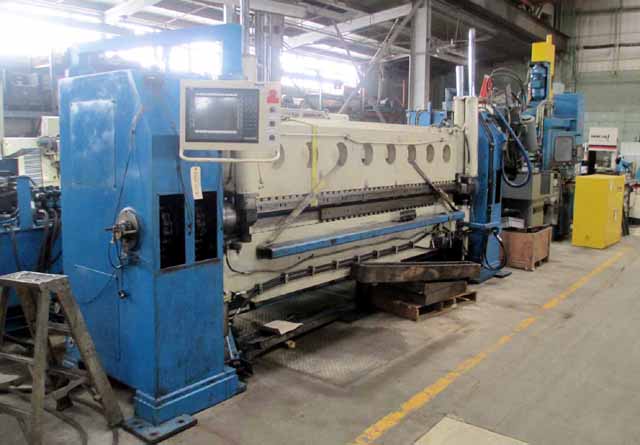

10' x 3/16" Ystadt Model KMD 3150x4 CNC 5-Axis Double Bending Hydraulic Bending & Folding Machine

Brand
YSTAD

Model
KMD 3150x4

Stock #
bra454x

Condition
Used

Year
1996

Location
City Not Specified, Illinois
United States

Specifications

Workin Length 10 feet
Sheet Thickness (Mild Steel) 0.1875 inches
Clamping Beam Stroke 24 inches
Daylight of Clamping Beam (w/o tool) 30 inches
Shutheight of Clamping Beam (w/tool) 6 inches
Max. Clamping Beam Force 40 tons
Max Speed of Clamping Beam (Up or Down) 180 in/min
Angle Adjustment for Upper and Lower Beam 0 - 130°
Speed of Folding Beam Cycle (Lower or Upper) 0 - 90° bend (4 sec.)
Repeatability of Folding Beam (2) ± 0.1°
Clamping Beam Repeatability ± 0.004°
Up/Down Adjustment of Bending Beam (Lower) 4 inches
Up/Down Adjustment of Bending Beam (upper) 24 inches

Equipped With

Weight of machine without back gauge, approx. 20,000 lbs
Maximum positioning of b.g. 10 ft.
Minimum positioning of flip up stops on b.g. 1/2"
Positioning accuracy +-.004"
Programming b.g. positioning in increments of .004"
Space required excl. hydr unit 15 ft by 14 ft.
Hydraulic power unit will require 50" x 35" approx.


Mitsubishi EC900 With Full CRT. Graphics Keyboard. Pendant For Front Or Rear Operation. Beams. And Back Gauge With Pneumatic Flip Up Stops. 10' Wide Back Gauge With (4) 10' Loading Arms. Pneumatic Flip Up Stops At 20 Increments. Crowning Attachments. Variable Speed Folding Beam. 2-Axis Synchronization For Parallelism Control Of Clamping And Bottom Beam With Off Center Loads. CNC Controlled Back Gauge And Flip Up Stops. (2) Lift Up Arms On Back Gauge To Assist Turning Over Panels. Large Quantity Of Dies. Die Handling Cart. Work Zone Barrier Guards.
