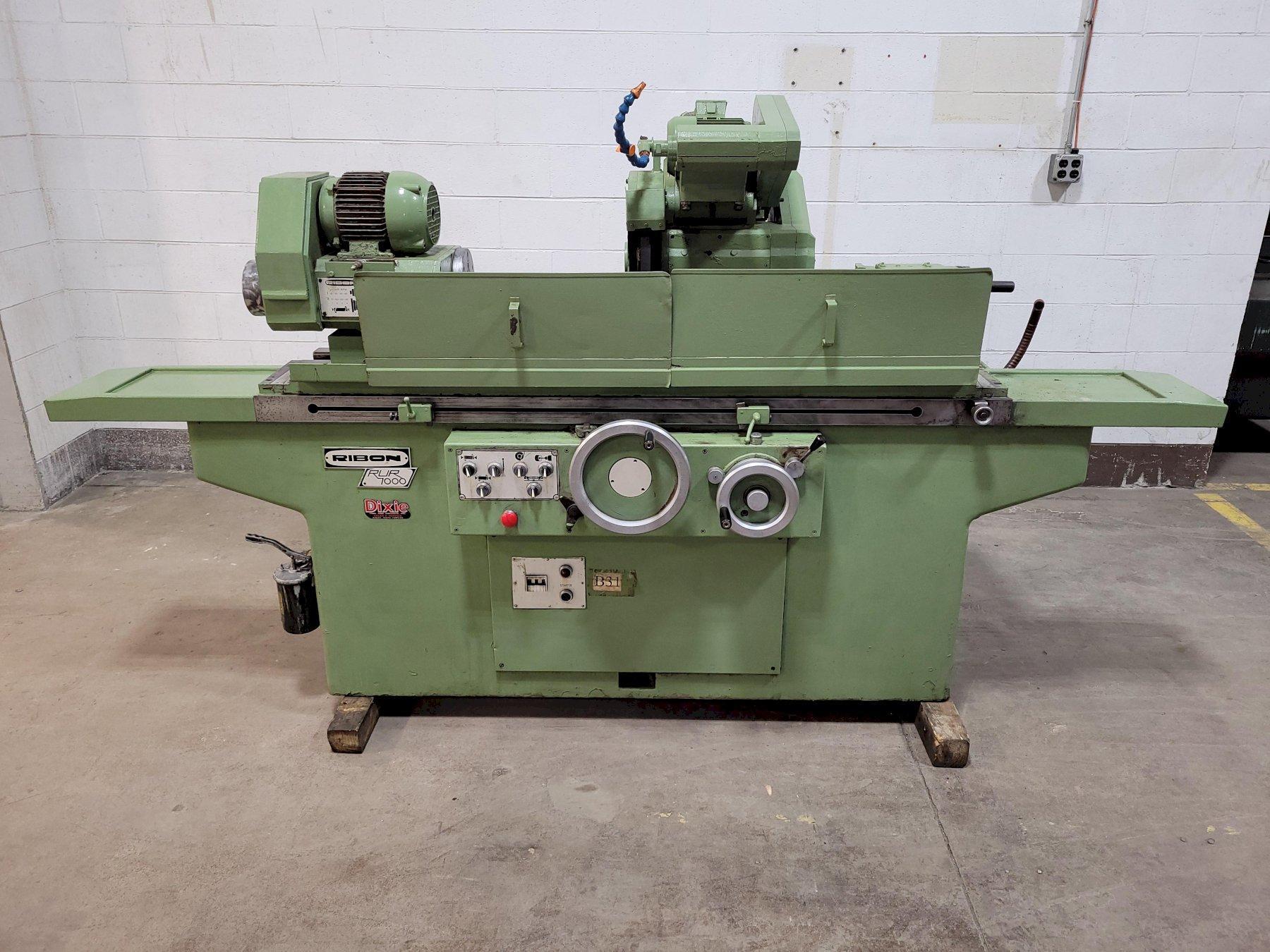

12.5” x 40” Ribon Model RUR-1000 Hydraulic Universal ID/OD Grinder

Brand
RIBON

Model
RUR-1000

Stock #
g1461

Condition
Used

Year
1982

Location
Lake Bluff, Illinois
United States

Specifications

Max Distance Between Centers 40" / 1000mm
Max Swing 12.59" / 320mm
Work Spindle Taper 4MT
Grinding Wheel Diameter / Width 16.1" (410mm) / 2.36" (60mm)
Wheel Motor 5 HP
Wheel Spindle Speeds 1450 - 1730 RPM
Workhead Speeds (8) 35 - 310 RPM
Tailstock Quill 0.66" / 17mm
Max Weight Between Centers 286 lbs / 130 kg
Task Swivel
Workhead Swivel +90° , -30°
Approximate Weight 4800 lbs / 2160 kg

Equipped With

Universal 8-Speed Workhead with Live/Dead Center and Handwheel for Manual Rotation. Swing Down Internal Grinding Attachment. Pick Feed Lever. Lever Operated Tailstock with Dionard Holder. Coolant Pump and Tank.
