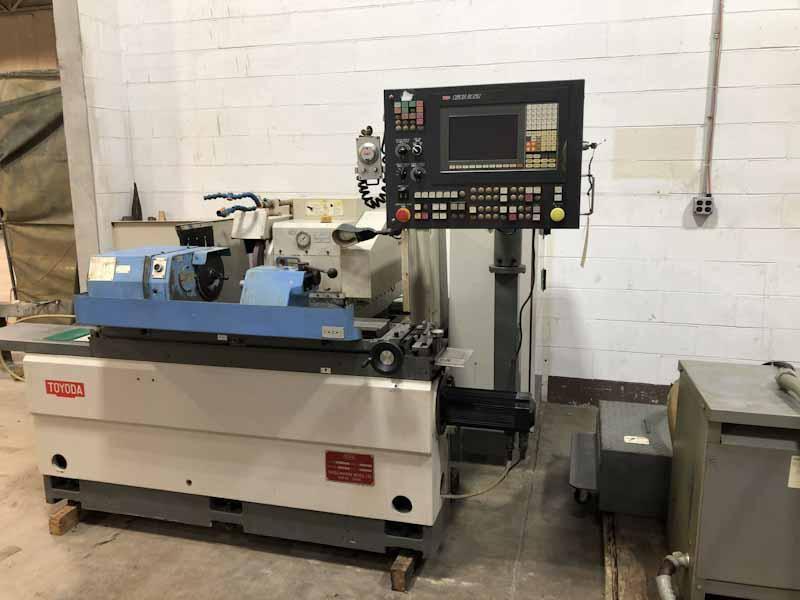

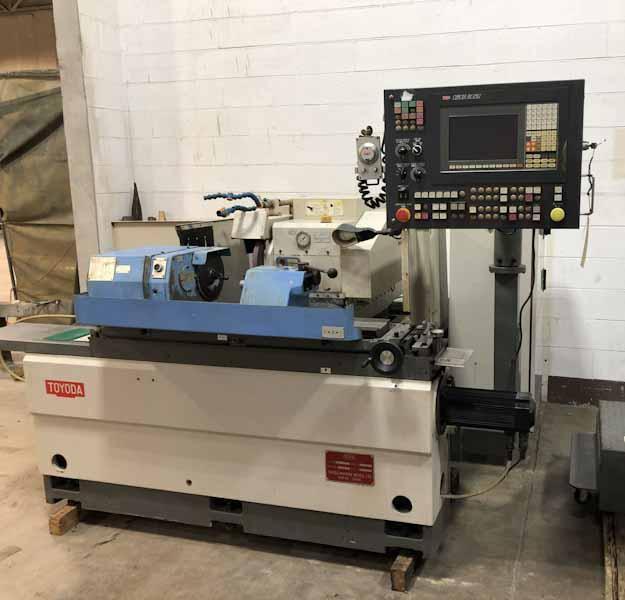

12" x 20" Toyoda Model GE4P-50M CNC Plain Grinder

Brand
TOYODA

Model
GE4P-50M

Stock #
G1437

Condition
Used

Year
1999

Location
Lake Bluff, Illinois
United States

Specifications

Swing over Table 320mm / 12.59"
Maximum Distance between Centers 500mm / 19.68”
Wheelhead Feeding Angle to Workpiece Center 90°
Max. Load between Centers 150kg / 330lbs
Grinding Wheel: .
Outside Dia x Inside Dia 405mm x 75mm x 127mm (16”x3”)
Max. Width 5 inches
Speed 6500 SFPM
Wheelhead: .
Total Stroke 250mm / 9.84”
Max. Grinding Diameter 300mm / 11.84"
Rapid Feedrate 10 m/min / 393 ipm
Least Input Increment (Dia) 0.0001mm
Swing Angle (CCW-CW) 12.5-0°
Workhead: .
Center MT No.4
Work Spindle Speed 16 – 500 RPM
Footstock: .
Quill Travel 25mm / 0.984”
Center MT No.4
. .
Wheel Spindle Drive Motor 3.7kw
Work Spindle Drive Motor (AC Servomotor) 0.8kw
Approximate Weight 400 kg / 8400 lbs
F.O.B. Our Plant

Equipped With

Toyoda GC32 CNC Controls. Manual Pulse Generator. Live/Dead Workhead wih Jog Control for work positioning. Heavy Duty Diamond Nib Dresser mounted behind workhead. Tailstock with Lever Control. Coolant System. Transformer.

Cleaned, Cycled, Guaranteed
