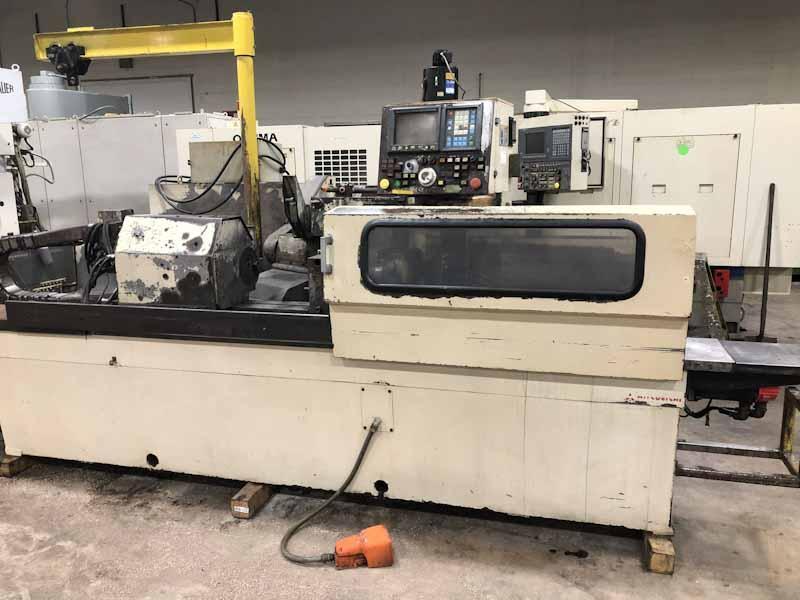

12” x 40” Mitsubishi Model RB32 #100A CNC Angle Grinding Machine














12” x 40” Mitsubishi Model RB32 #100A CNC Angle Grinding Machine

Brand
MITSUBISHI

Model
RB32#100A

Type
Grinders, Angle Head

Stock #
G1432

Condition
Used

Year
1992

Location
Lake Bluff, Illinois
United States

Request a Quote

Specifications

Maximum Swing	12.6 inches
Maximum Center Distance	39.37 inches
Maximum Workpiece Diameter	7.87 inches
Maximum Workpiece Weight	331 pounds
Wheel Size	17.9" x 6" x 3"
Wheel Peripheral Speed	148 Ft/S
Wheel Rotation	1888 RPM
Wheel Spindle Rapid Traverse	39 Ft/S
Wheel Spindle Feed Rate	0.0004 - 472 IPM
Wheel Motor	7.3 HP
Table Rapid Traverse	39 FPM
Table Rapid Feedrate	0.00004 - 472 IPM
Headstock Spindle (Infinitely Variable)	10 - 500 RPM
Headstock Center Taper	No.4 MT
Tailstock Stroke	6.5 inches
Tailstock Center Taper	No.4 MT
Tailstock Taper Fine Adjusting Stroke	± 0.05"
Approximate Weight	12500 pounds
F.O.B.	Our Plant

Equipped With

Fanuc Series O B CNC Control. Swing Down End Locator For Longitudinal Positioning. Controls For Automatic Dressing Compensation. Air Cut Eliminator. Taper, Shoulder, Contour, Plunge And Traverse Grinding Cycling. Radius Grinding Cycle. Standard And Programmable Multi Step Dress Cycles. Variable Speed Live/Dead Center Headstock. Hydraulic Tailstock Stroking. Tailstock Foot Switch. Headstock Mounted Single Point Diamond Dresser. Front Splash Cover. Transformer. Manuals And Drawings. Coolant with Magnetic Filtration. Wheel Balancing Arbor. 1000lbs Jib for Wheel and Parts Handling.

This machine is being offered thoroughly checked out in our shop, cleaned and cycled. It is being offered with a 30-Day Return Privilege and may be inspected under power here in our plant.
