Brand

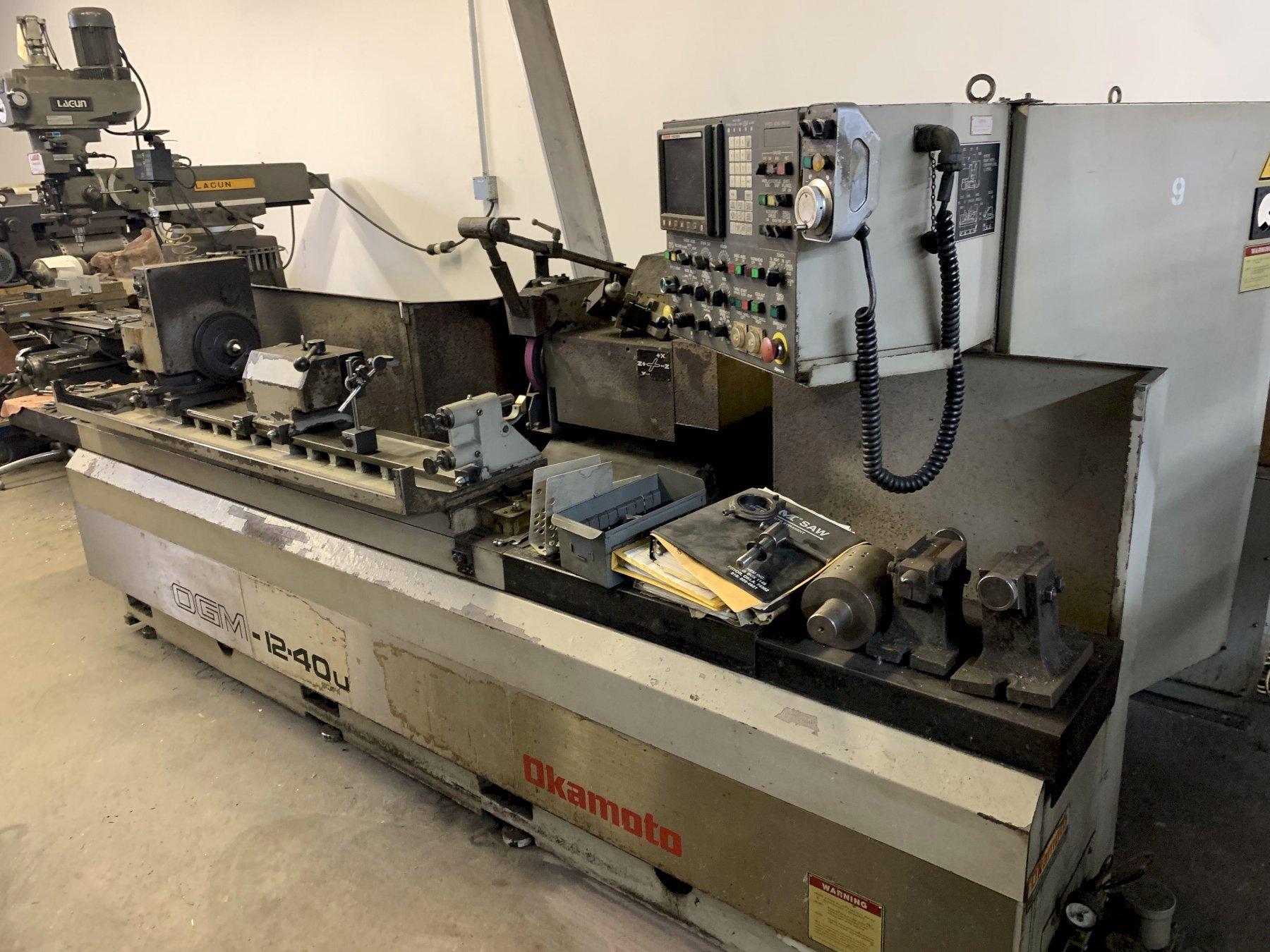

OKAMOTO
Model
OGM 1240U
Stock #
G1240UX
Condition
Used
Year
1996
Location
City Not Specified, Illinois
United States
| Swing Over Table | 12.6” |
| Distance Between Centers | 40” |
| Max. Diameter to the Ground | 12” |
| Max. Weight Between Centers | 330 Lbs |
| Grinding Wheel Size | 14” x 1.5” x 5” |
| Grinding Wheel Speed | 2,000 rpm |
| Wheelhead | : |
| Total Stroke | 11.8” |
| Swivel Angle | +/- 30° |
| Automatic Infeed | 0.00001” |
| Continuous Feedrate | 0-157 ipm |
| Manual Pulse Feed | .00001”, .0001”, .001 |
| Wheelhead Rapid Retract | 1.5” |
| Rapid Feedrate | 157 ipm |
| Grind Feed Override | 0-200% |
| Table | : |
| Max. Table Travel | 46” |
| Swivel Angle | +1° to -7° |
| Transverse Speed | 0-390 ipm |
| Manual Pulse Speed | .00001”, .0001”, .001 |
| Rapid Feedrate | 390 ipm |
| Sparkout (Plunge/Transverse) | 0-10 Sec/ 0-10 Cycles |
| Workhead | : |
| Center | MT # 4 |
| Swivel Angle | +30° to -90° |
| Spindle Speed | 10-500 rpm |
| Tailstock Center/Stroke | MT # 4/1.2” |
| Grinding Wheel Spindle Motor | 7.35 HP |
| Workhead Spindle Motor | 1.0 HP |
EQUIPPED WITH:
Okamoto Precision PLC Control with CRT. Coolant System with Magnetic Drum Filtration. Manual Pulse Generator. Teach Mode. Follow Rest. Table Mounted Universal Dresser. (2) Wheel Hubs.
