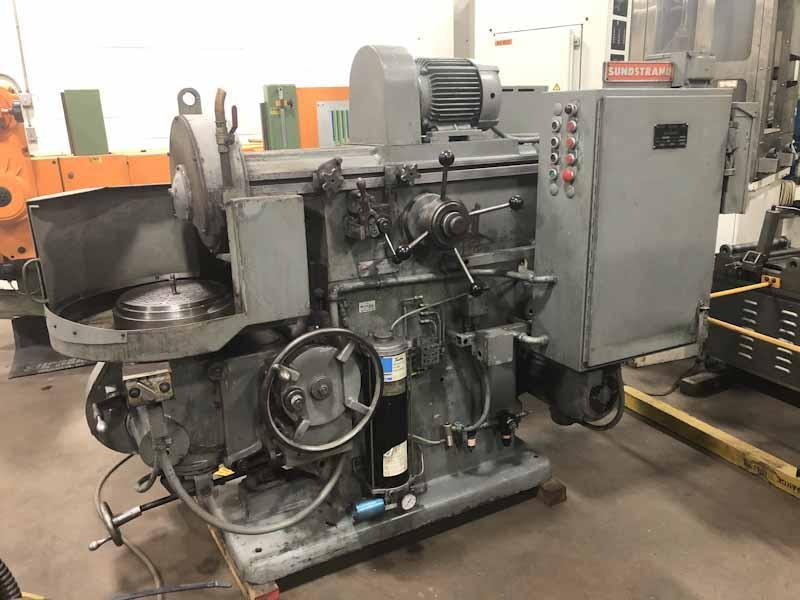

13” Arter Model D-16 RAM Type Horizontal Spindle Rotary Surface Grinder

Brand
ARTER

Model
D-16

Stock #
G1425

Condition
Used

Year
1963

Location
Lake Bluff, Illinois
United States

Specifications

Guard 25 inches
Chuck Size 13 inches
Working Height 7.5 inches
Tilt of Table Convex/Concave Grinding 20° / 10°
Table Speeds 60 - 250 RPM
Standard Size Grinding Wheel: Cylinder Type 16" x 1.5" x 8" Hole
Grinding Wheel Feeds 0 - 10 FPM
Max Wheel Head Stroke 9 inches
Knee Maximum Vertical Travel 9 inches
Power Feed Adjustment .0001 - .0015
Main Motor 10 HP 220 / 440v
Hydraulic System Drive 1.5 HP
Floor Space 65" x 102"
Height 68 inches
Approximate Weight 7000 pounds
F.O.B. Our Plant

Equipped With

13” Electromagnetic Chuck with remote control. Manual tilt on knees. Rough and Finish Cycle feed controls. Variable Speed Wheelhead Table Control. Trabon Automatic Lubrication. Splash Guards. Coolant System.

Cleaned, Cycled.
