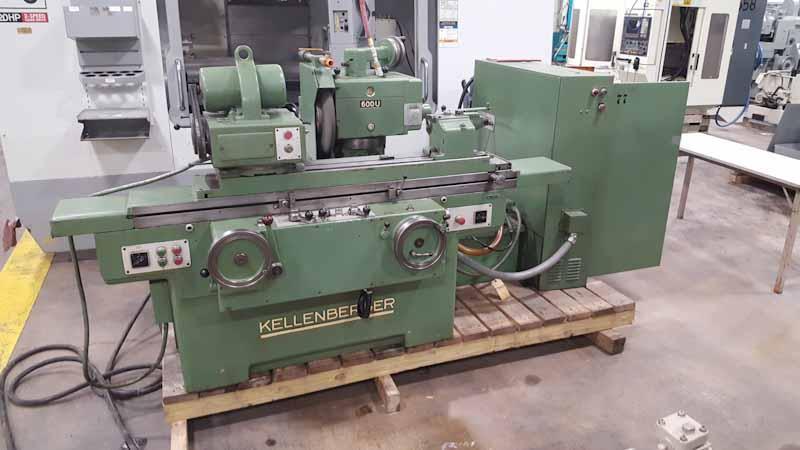

16" x 24" Kellenberger Model 600U-125 Universal Grinder

Model
600U-125

Stock #
G1427

Condition
Used

Year

Location
Lake Bluff, Illinois
United States

Specifications

Distance Between Centers 23-5/8"
Maximum Table Travel 35.4"
Maximum Swing over Table (with Riser Block) 16-5/8"
Traverse per Revolution of Handwheel Coarse .8"
Traverse per Revolution of Handwheel Fine .1"
Traverse Speed (Infinitely Variable) .06-18 FPM
Minimum Table Oscillation .1"
Dwell at Reversal (Infinitely Variable) 0.5 Sec
Swivel Range 11°
Travel with Handwheel Coarse/Fine 9-5/8"
Infeed per Revolution of Handwheel Coarse .3"
Infeed per Revolution of Handwheel Fine .04"
Rapid Advance and Retraction, Hydraulic 1-9/16"
Hydraulic Infeed 0-.035"
Plunge Grinding, Infeed Speed .00001-.0001
Grinding Wheel for OD Grinding 16" x 2" x 5"
Grinding Wheel for Right Hand Spindle End 9" x ¾" x 3"
Spindle Speeds 1500, 1700, 2200 RPM
Wheelhead Swivel Range ±5 to -195°
Carrier Bore for Internal Grinding Spindles 3-5/32"
Swivel Range 360°
Spindle Speeds (Infinitely Variable) 20-400 RPM
Internal Taper of Work Spindle No. 5 Morse
Tailstock Internal Taper of Sleeve No. 4 Morse
Tailstock Stroke of Sleeve 1-3/16"
F.O.B. Our Plant

Equipped With

Motor Driven With 4.5 HP, 3 Phase, 60 Cycle, 460 Volt Spindle Drive. MD Workhead. MD Hydraulics. Complete Electrical Controls.

270° Swiveling Wheelhead With Indexing And Clamping Every 90°. External Grinding Wheel (LH). Indexing And Clamping Every 90° Allows For Multiple Operations To Be Performed In One Chucking Of The Workpiece. Rise & Fall Mechanism For Grinding Wheelhead. 360° Swiveling Workhead With Combination Live/Dead Spindle. Hydraulic Infeed. Hydraulic Traverse. Plunge Feed. Pick Feed. Dwell Timer. Shift Knob For Coarse/Fine Feeds. Surface Grinding With Wheelhead Downfeed. 3" Riser Blocks For The Workhead, Wheelhead and Tailstock. Lever Operated Tailstock. Dresser Mounted On Tailstock. Coolant Pump And Tank.

This machine is being offered thoroughly checked out in our shop, cleaned, painted, and cycled.  It is being offered with a 30-Day Return Privilege and may be inspected under power here in our plant.
