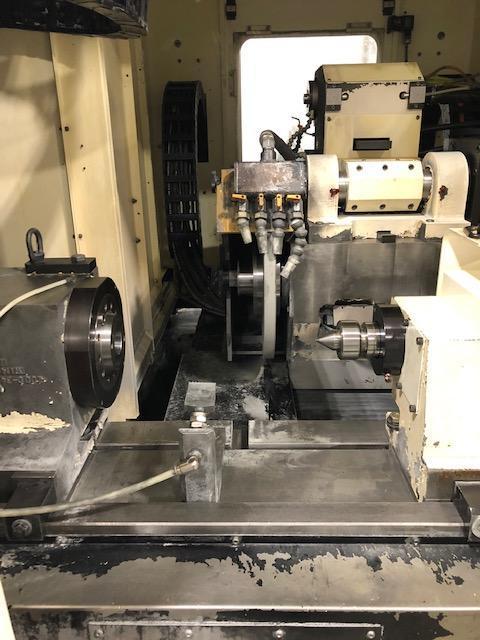

16” x 32” Weldon 1632/Gold CNC Cylindrical Grinder

Brand
WELDON

Model
1632/Gold

Type
Grinders, Cylindrical (Incl Plain & Angle Head)

Stock #
GWELX

Condition
Used

Year
2013

Location
City Not Specified, Pennsylvania
United States

Request a Quote

Specifications

Quill Retraction (Hydraulic) 1.5 inches
Approximate Dimensions (w/Pendulum Swing In) 131”LR x 93” FB x 85” Height
Approximate Weight 16000 pounds
Maximum Swing 16 inches
Maximum Distance between Centers 26 inches
Work Table Travel 32 inches
Workhead Spindle Nose 6" A-2
Workhead Center Taper No.5 MT
Spindle Speed Range (Infinitely Variable) 0 - 900 RPM
Workhead Motor, GE Fanuc AC Servo Drive 5 HP
Wheelhead Drive 15 HP
Wheel Speed Variable RPM 8500 SFPM (Nominal)
Maximum OD Wheel Diameter 16 inches
Maximum Wheel Width 3 inches
Tailstock Center Taper No.5 MT

Equipped With

Fanuc 32i-Model B CNC Control. ID Grinding Spindle, Swing Down (Hydraulically Operated). Hydraulic Tailstock. In Process gage for automatic size control. Electric Rotary Wheel Dresser. Automatic Lateral Locator, wheel head Mounted with Renishaw Probe. Dittel Acoustic Emissions Sensor for gap elimination, crash detection, and touch dressings. SBS Wheel Balancer. Coolant Flow Switch – Coolant Detector. Extra Program Storage. Precision Glass Scale of X-Axis. High Pressure Wheel Scrubbing for CBN Wheels. Side Mounted Wheel Change Assist Mechanism. Air Flow Mist Collector. Barnes Coolant Filtration System with Magnetic Separator. Fanuc LR Mate 200iD Robot for loading/unloading that is currently off the machine and was never used at its present location. Manuals and Drawings.
