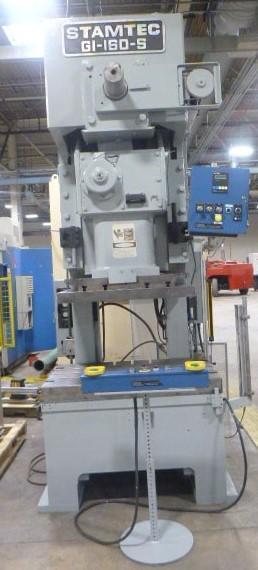

160 Ton Stamtec G1-160-S Gap Frame Punch Press

Brand
STAMTEC

Model
G1-160-S

Stock #
PP1333

Condition
Used

Year
1987

Location
Lake Bluff, Illinois
United States

Specifications

Stroke 10”
Slide Adjustment 4” (Powered)
Shut Height S.D.A.U. 22” To Top of Bed
Area of Bed 50.5” L-R X 30.75” F-B
Bolster Thickness 4.5” (T-Slotted)
Area of Slide 27.5”
T-Slotted Fixture on Slide 39” X 25”
Shank Hole Diameter 2.5”
Throat Depth 15.5”
Opening Through Back 23”
Floor to Top of Bed 33”
S.P.M. Approx. 25-40
Main Motor 15 HP, 1750 RPM, 230/460/3/60 Motor
Weight Approx. 36,000 Lbs
Overall Dimensions Approx. 74” L-R X 96” F-B X 150” H

Equipped With

EQUIPPED WITH:
Air Clutch & Brake. Air Counterbalance. Back Geared Type. Dual Palm Buttons for Run with Emergency Stop button Key Selector Switches for Single, Continuous, Inch, Off, Run, & Slide Adjustment. Off/On Push Buttons for Forward, Reverse, Slide Up/Down. Ram Control Via Knob. Brake Monitor. Knock out Slots in Slide Safety Light Curtain. Air Surge Tank.
