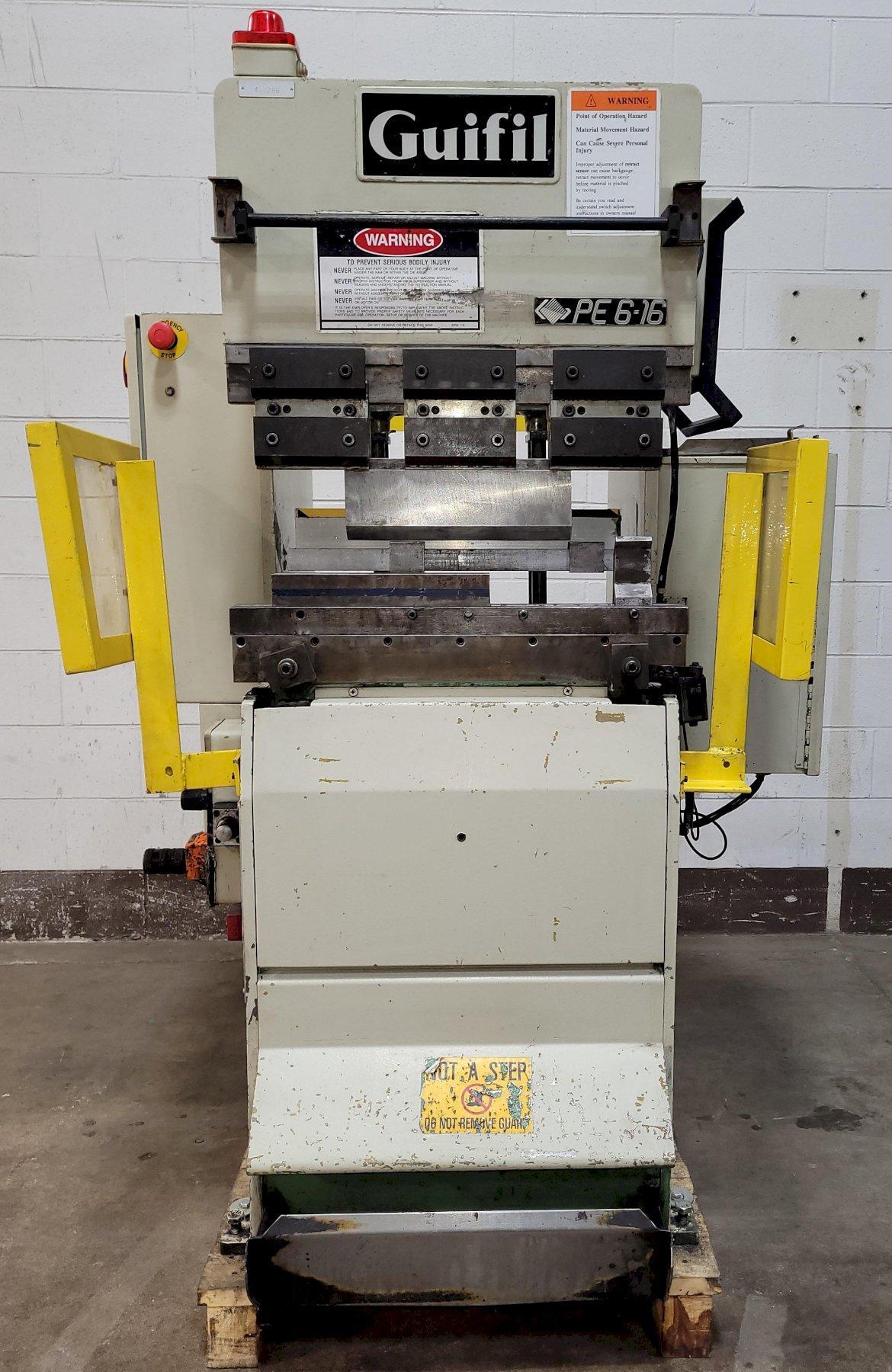

17.5 Ton Guifil Model PE6-16 Hydraulic Press Brake

Brand
GUIFIL

Model
PE6-16

Stock #
BRA461

Condition
Used

Year
1988

Location
Lake Bluff, Illinois
United States

Specifications

Tonnage Capacity 17.5
Table Length 24.6”
Distance Between Uprights 24.6”
Throat Depth 6.4"
Stroke Length, Adjustable 3.937”
Approach Speed 198 I.P.M.
Working Speed 60 I.P.M.
Return Speed 210 I.P.M.
Open Height Without Tools 12"
Number of Cylinders 1
Back Gauge Capacity 24”
Hydraulic System 5.5 H.P. / 3 ph./ 60 Cy. 240 Volt
Approximate Weight 2,350 Lbs.
Approximate Dimensions 35” x 42” x 74” H

Equipped With

EQUIPPED WITH:

All Steel Welded Construction. Hurco Autobend 6 CNC Control Back Gauge. Upper Die Clamps. Lower Die Holder. Foot Treadle Control for Speed of Ram Travel. Stroke Length Adjustment and Ram Pressure Controls. Sliding Switch for Setting Ram Shift Point.
