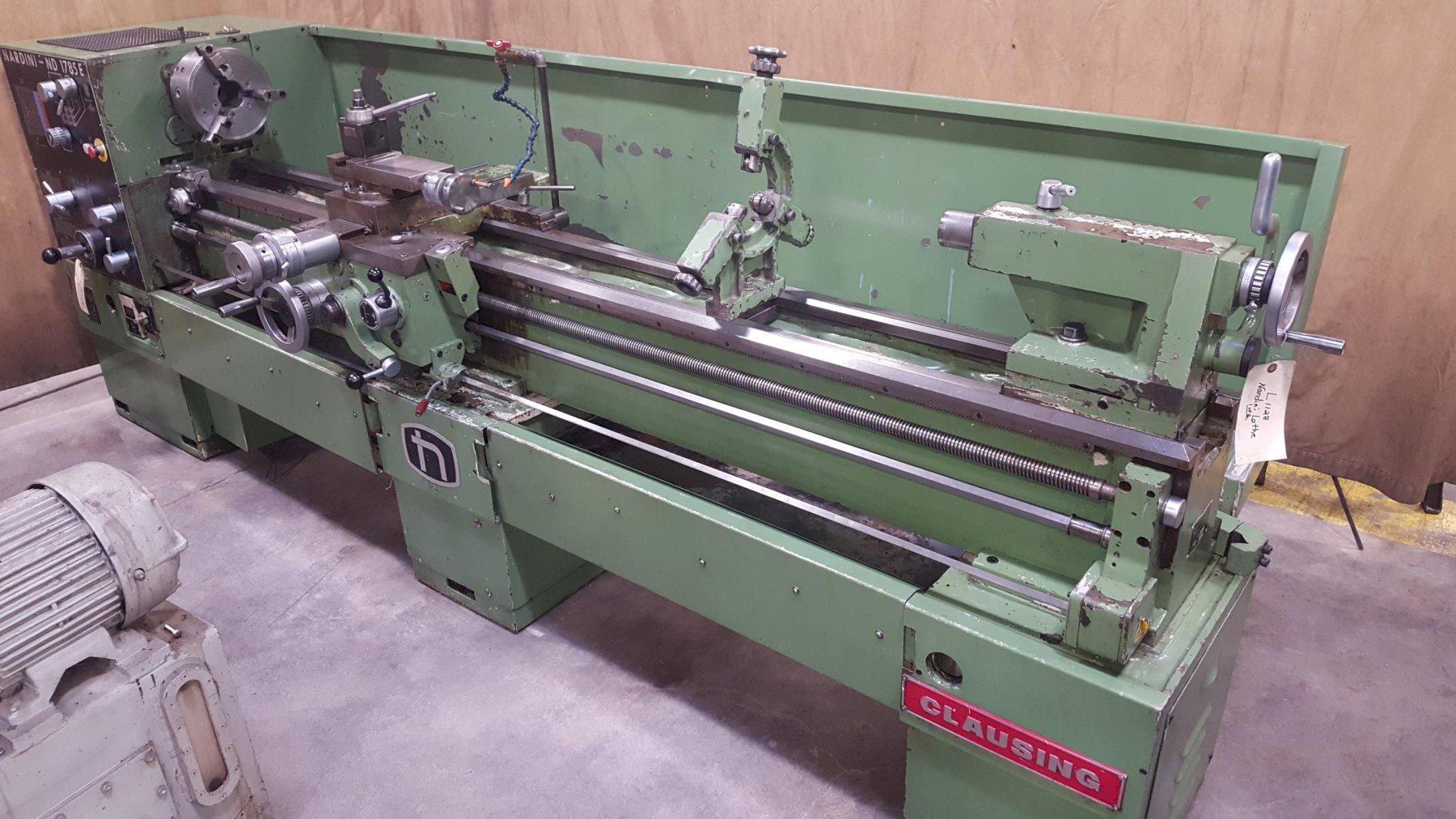

Brand
NARDINI
Model
ND1785
Type
Lathes, Gap Bed
Stock #
L1128
Condition
Used
Year
1991
Location
Lake Bluff, Illinois
United States
| Swing Over Bed | 17.25 inches |
| Distance Between Centers | 85 inches |
| Swing Over Wings of Saddle | 15.375 inches |
| Swing Over Cross Slide | 10.625 inches |
| Swing in Gap | 24.75 inches |
| Gap Length from Face Plate | 7 inches |
| Spindle Nose | Cam Lock D1-6" |
| Spindle Bore | 2.03125 inches |
| No. & Range of Spindle Speeds (18) | 30 - 2360 RPM |
| Tailstock Quill Diameter | 2.375 inches |
| Tailstock Quill Travel | 8.625 inches |
| Tailstock Quill Taper | 4MT |
| Longitudinal Feeds (48) | 0.0016 - 0.04 per rev |
| Cross Feeds (48) | 0.0008 - 0.02 per rev |
| Inch Threads (48) | 3.5 - 42 TPI |
| Metric Threads (48) | 0.4 - 7.0 mm |
| Main Motor (2 Speeds) | 8 / 5 HP |
| Approximate Dimensions | 118" LR x 40"FB |
| Approximate Weight | 3400 pounds |
12” 4-Jaw Chuck. Inch/Metric Threading. Steady Rest. Follow Rest. Face Plate. Quick Change Tool Post with Assorted Tool Blocks. Assorted Centers. Coolant.
This lathe is offered Cleaned, Cycled, and Guaranteed to be in good operating condition. It can be inspected under power at your convenience.
