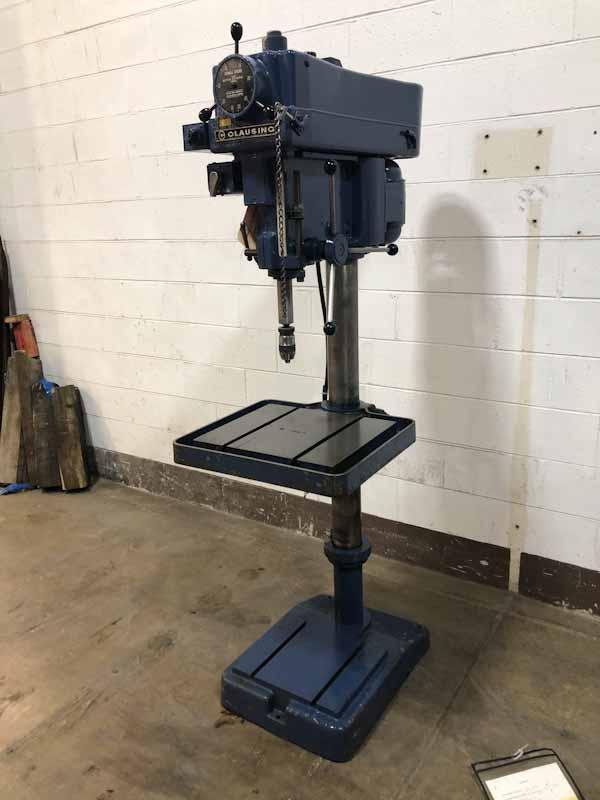

20” Clausing Model 2277 Variable Speed Floor Model Drill Press

Brand
CLAUSING

Model
2277

Stock #
HSD1144

Condition
Used

Year

Location
Lake Bluff, Illinois
United States

Specifications

Working Surface of Table 22" x 19.5"
Table Slot Center Distance 9 inches
Table Travel 20 inches
Spindle To Table Top 33.125 inches
Working Surface (Ground) 15.5" x 13"
Base T-Slots (2) 13" Long (for 0.5" T-Bolts)
Base T-Slots Center Distance 9 inches
Spindle to Base (max) 43.375 inches
Spindle Speed (Variable) 150 - 2000 RPM
Production Rated (Cast Iron) 1.125 inches
Production Rated (Mild Steel) 0.875 inches
Drill to Center of Circle (Diameter) 20 inches
Spindle Nose 3 MT, 1.74" OD
Spindle Travel 6.5 inches
Column (Ground Steel) 4" Diameter, 0.5" Thick Wall
Quil (Ground Steel) 2.5" Diameter
Quill Return Spring Capacity 40 pounds
Motor 1.5 HP / 460v / 3ph
Dimensions 22" x 36" x 69"H
Approximate Weight 630 pounds
F.O.B. Our Plant

Equipped With

3 MT Spindle. Elevating mechanism for Work Table. On/Off Switch, Belt Guard.

Cleaned, Cycled.
