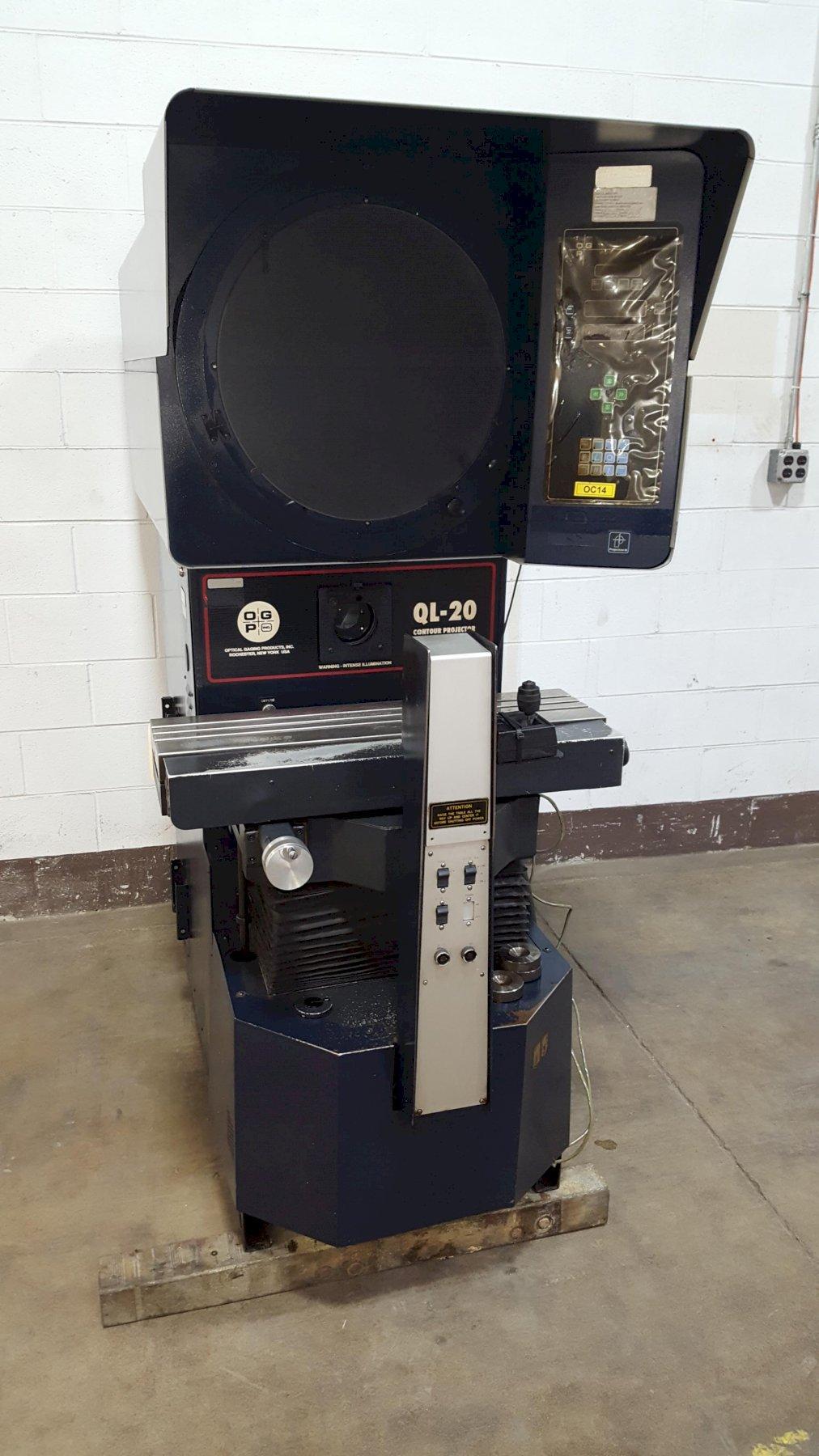

20” Optical Gauging Products (OGP) Model QL-20S Contour Projection Comparator

Model
QL-20S

Stock #
INS305

Condition
Used

Year

Location
Lake Bluff, Illinois
United States

Specifications

Screen Size 20 inches
Cross Travel of Table 12 inches
Vertical Travel of Table 9 inches
Measuring Capacity of Focus Table 3 inches
Table Size 8" x 32"
Throat Clearance 18.375 inches
Table Horizontal Travel Rate 8 IPM
Optical Axis to Work Table 0.75 - 9.75"
Load Capacity 500 pounds
Approximate Dimensions 72"w x 89"l x 77.75"H
Approximate Weight 1200 pounds

Equipped With

Single Phase Cycle. 115 Volts. DiMetric Plus Measuring System Projection III with DRO.  Geometry Functions. RS2323. Motorized Horizontal and Vertical Axis Positioning. Blower Cooled Lamp House. Overhead Hood System. Motorized 6-Lens Turret. Erect Un-Reversed Image. Joy Stick Motion Control. Mercury Arc Projection. Tungsten-Halogen Surface Illumination. Digital Rotary Screen Ring. 20x, 50x Lens. Heavy Duty 8” x 32” Table.
