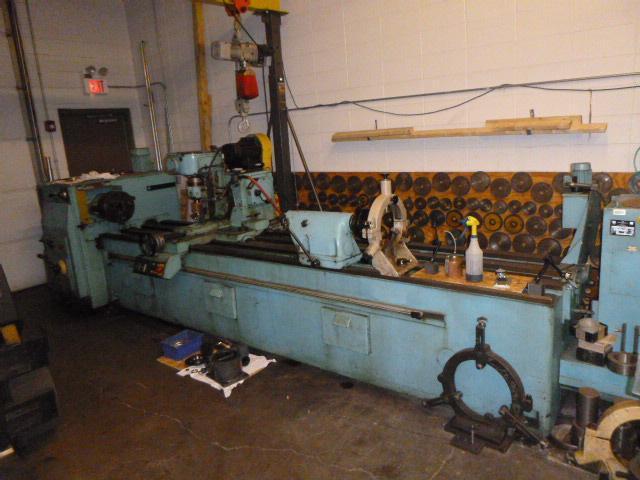

20” x 124” WMW Heckert Model ZFWVG 250-NX3150 Thread Milling and Spline Hobbing Machine

Model
ZFWVG 250-N X 3150

Stock #
gh250nx

Condition
Used

Year
1981

Location
City Not Specified, Illinois
United States

Specifications

Maximum Workpiece Diameter over Bed 19.68" / 500mm
Maximum Workpiece Diameter over Saddle 9.84" / 250mm
Maximum Threading Length 124" / 3150mm
Spindle Bore 4" / 102mm
Module (Max / Min) 10 / 2
Thread Pitch 1 - 800mm
Speed of Workpiece (Milling) 0.0034 – 2.65 u/min
Feeds - Rolls 0.0256 – 5.17 mm/wu
Hob Turning Speeds 45 -900 u/min
Electrics 3/60/460v
Approximate Weight 12000 pounds

Equipped With

12” 3-Jaw Chuck. Differential. (1) Heavy Duty Milling Head. (1) Head for Keyways and Acme Threads. (3) Steady Rests. Tailstock. Large Quantity of Threading, Differential and Index Change Gears. Automatic Lubrication. Coolant. Manuals and Drawings.

The Heckert appears to be in good operating condition and is available for an inspection under power at your convenience.
