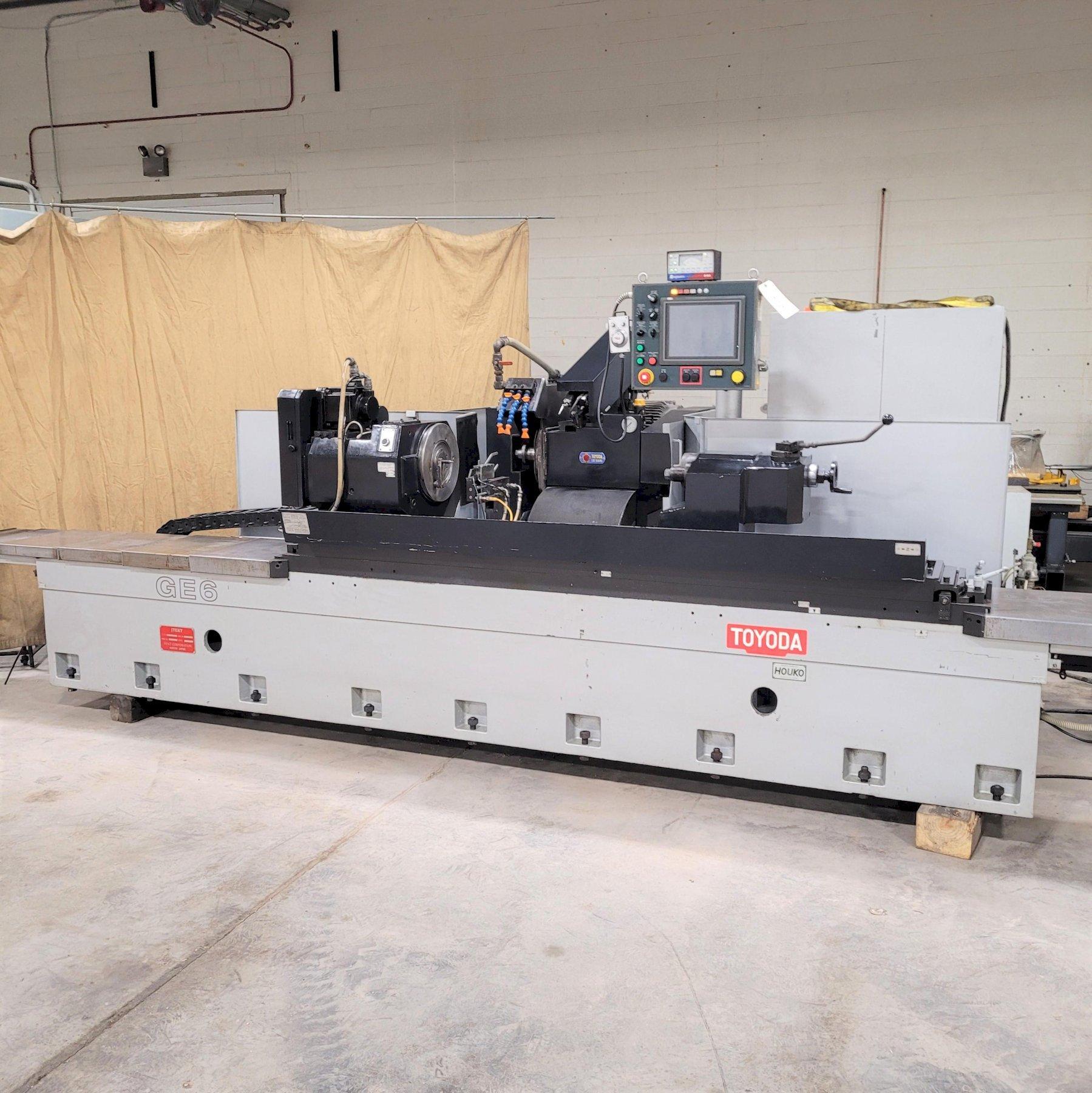

Brand
TOYODA
Model
GE6P-160II
Stock #
G1500
Condition
Used
Year
2007
Location
Lake Bluff, Illinois
United States
| Table Feed Drive Motor (AC Servo) | 6 HP |
| Lubricant Pump Motor | .27 HP |
| Wheel Spindle Lubrication Motor | .67 HP |
| Swing | 22" |
| Center Distance | 63" |
| Maximum Grinding Diameter | 21.65" |
| Maximum Load Between Centers | 1,100 lbs |
| Centerline Height from Floor | 46.45" |
| Approx. Floor Space Required | 229" x 91" |
| Net Weight | 18,800 lbs |
| WHEELHEAD | : |
| Wheel Size (OD x ID) | 24" x 10" |
| Maximum Wheel Width | 3" |
| Wheel Surface Speed | 6,500 SFPM |
| Spindle | Toyoda Stat Bearing |
| Minimum Move Increment (on diameter) | .000010" |
| Wheelhead Rapid Feed (on diameter) | 590 IPM |
| Wheelhead Slide Configuration | 90° |
| Table Structure | 2-Piece Swiveling |
| Table Swivel (CCW to CW) | 3° - 0° |
| Table Stroke | 72.2" |
| Table Minimum Move Increment | .000010" |
| Table Rapid Feed | 511 IPM |
| Workhead Type | Dead |
| Workhead Center Taper | MT#5 |
| Work Speed (Variable) | 7-140 RPM |
| Footstock Type | Manual |
| Footstock Center | MT No. 5 |
| Maximum Center Retraction | 1.26" |
| Center Position Adjustment | 1.18" |
| Dresser Type | Stationary Diamond Holder |
| Dresser Location | Workhead Mount |
| Wheel Drive Motor | 15 HP |
| Work Drive Motor (AC Servo) | 4 HP |
| Wheelhead Feed Drive Motor (AC Servo) | 2.9 HP |
