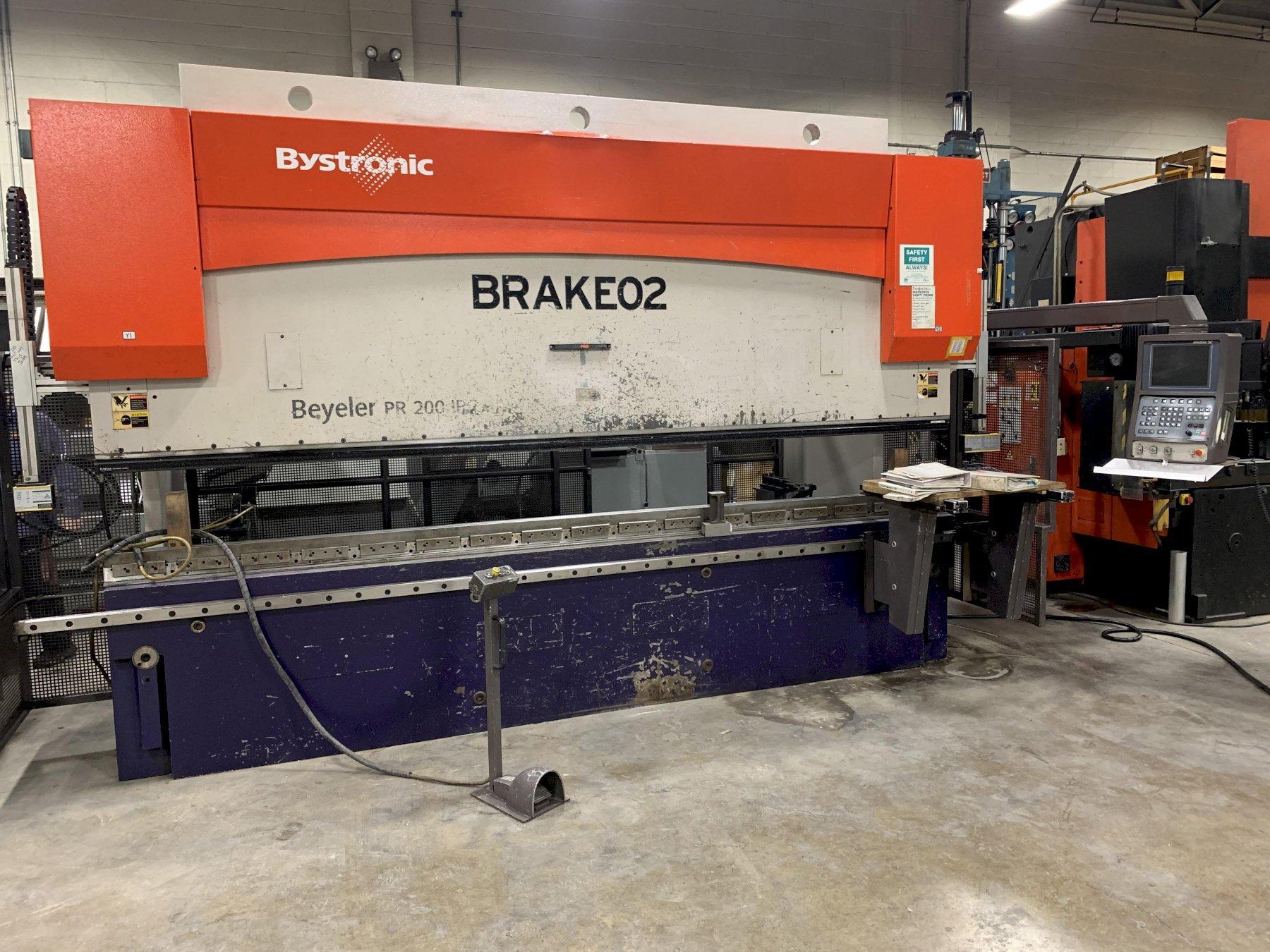

220-Ton x 161” Bystronic Beyeler PR200 IPC 8-Axis CNC Press Brake

Brand
BYSTRONIC

Model
PR200 IPC

Stock #
BRA468

Condition
Not specified

Year
2004

Location
Lake Bluff, Illinois
United States

Specifications

Capacity 220-Tons
Length of Bed 4000 mm / 161”
Distance Between Housing 3,733 mm / 147”
Stroke 216 mm / 8.5”
Open Height 244 mm / 19.6”
Closed Height 282 mm / 11.1”
Throat 400 mm / 15.7”
Rapid Speed 200 mm/s / 1.75 ISP
Bending Speed 1 mm -m 10 mm/s / 0.04 – 0.41 IPS
Return Speed 5.9 IPS
Main Motor 22 kw (30 HP), 3 Phase, 60 Cycle, 480 Volt
Approx. Weight 16,000 kg / 35,274 lbs.

Equipped With

EQUIPPED WITH:

Bystonic/ Cyblec Modeva 12 User-Friendly Graphic Controls. ‘PR’ Pressure Reference for Non-Symmetrical Loads. ‘IPC’ Automated Sheet Spring Back Compensation. Hydraulic Dynamic Crowning. Automatic Pressure Control. Tool Protection. 6-Axis Back Guage. (2) Front Workspace Support Table Can Be Manually Adjusted in X, R, and Z-Axis. Wila ‘New Standard’ Full-Length Upper Die Tool Holder. Lower Die Holder. Fiessler AKAS Laser Light Curtain. Foot Pedal. Remote Floor Pedestal Pushbutton Station. Transformer.
