220lb American Hofmann Model PCX-131 Horizontal Hard Bearing Balancing Machine

Brand
HOFMANN

Model
PCX-131

Type
Balancers

Stock #
INS310

Condition
Used

Year
2014

Location
Lake Bluff, Illinois
United States

Specifications

Bearing Journal Diameter 1.18" - 3.14"
Belt Drive 1 HP / 3 phase / 60 cycle / 480 volt
Base Size 16" x 30"
Speed 400 - 4800 RPM
Max. Weight of Rotor 220 pounds
Max. Weight per Pedestal 110 pounds
Min. Weight of Rotor 110 pounds
Max. Diameter of Rotor over Belt Tensioners 31 inches
Max. Length of Rotor between Bearing Centers 24 inches
Min. Length of Rotor between Bearing Centers 3.5 inches
Approximate Weight 2500 pounds

Equipped With

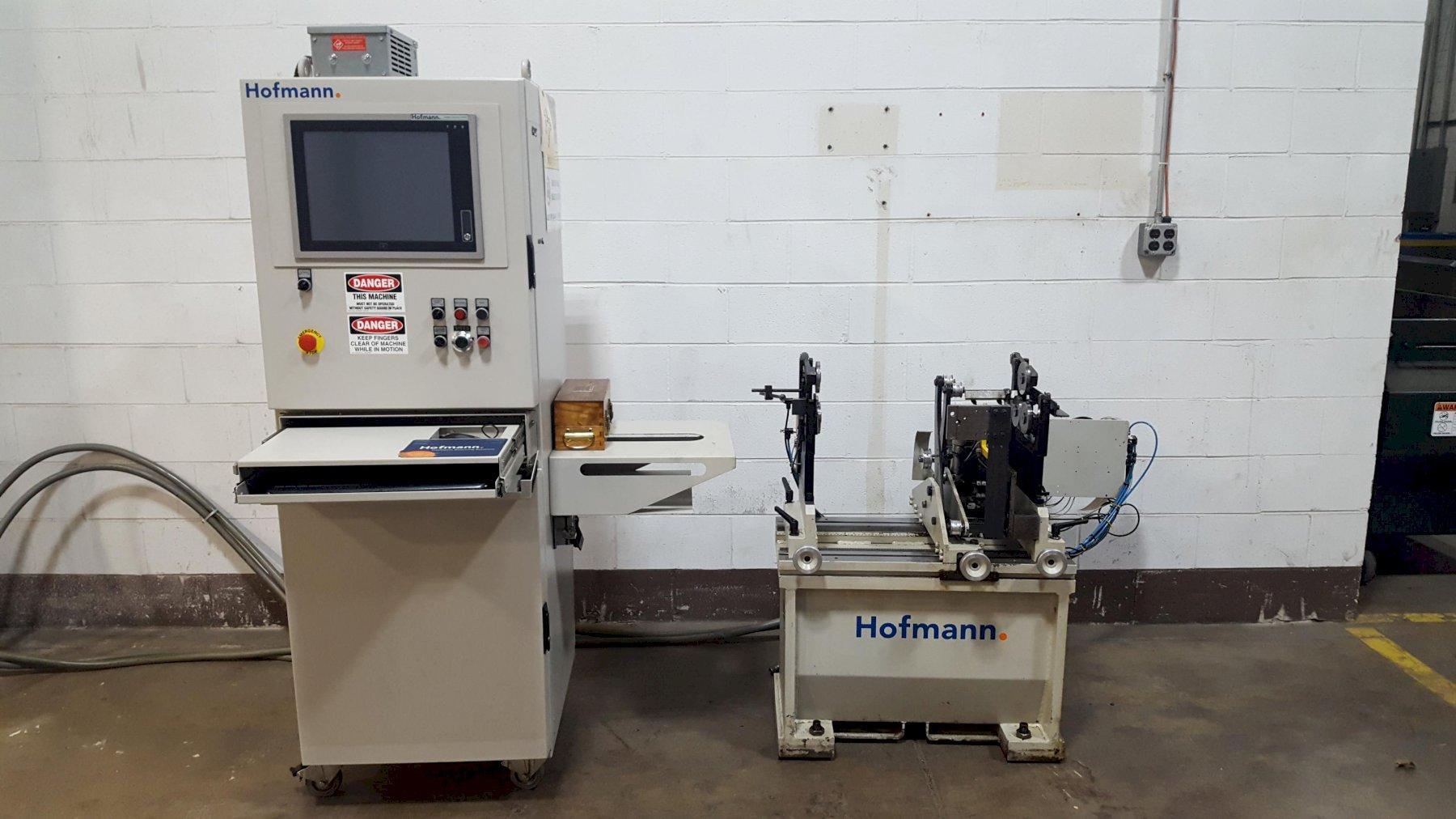

Hofmann CNC Unbalance Measuring System with PC Based System. Applications Version 2.1.11, Measure Version 4.0.9. For Two Plane, Static Couple, Belt Drive Applications with Allen-Bradley Touch Screen HMI. Push Button Controls for 16” x 30” Base with Adjustable Height Hard Bearing Supports with Pneumatic Hold Down Brackets. End Stops. Photo Electric Scanning Head. Under Slung Variable Speed Belt Drive Air Tensioner. American Hofmann 11lb Test Rotor.

The Balancer is being offered cleaned, cycled, and guaranteed to be in very good working condition. It can be inspected under power on our floor.
