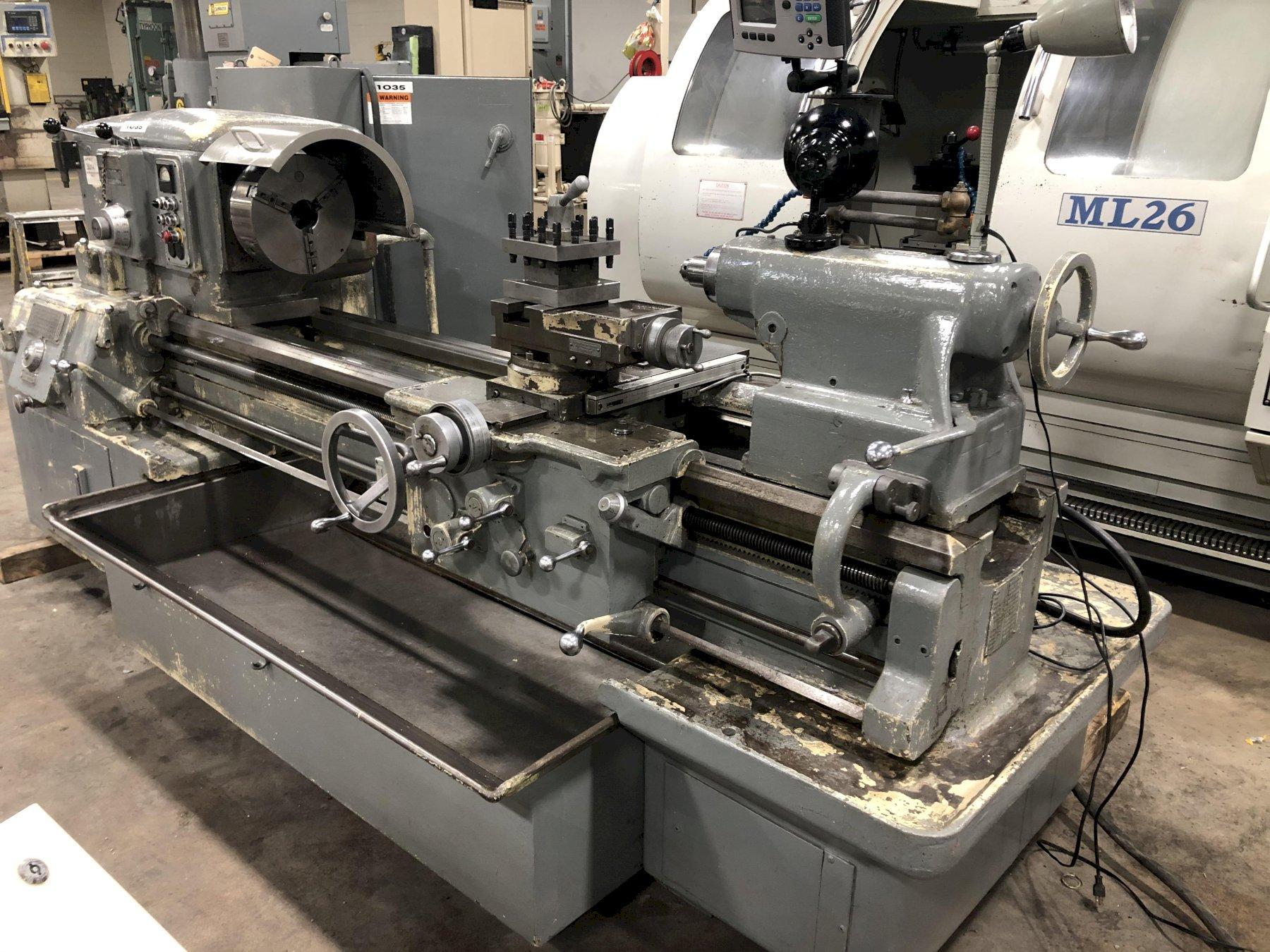

24” x 54” Monarch 2516 Series 610 Engine Lathe

Brand
MONARCH

Model
2516

Stock #
L1127

Condition
Used

Year
1962

Location
Lake Bluff, Illinois
United States

Specifications

Swing Over Bed 24 inches
Swing Over Cross Slide 16 inches
Distance Between Centers 54 inches
Hole Through Spindle 2.0625 inches
Headstock Center No.4 MT
Headstock Spindle Nose 6" D-1
Headstock Spindle Speed Range (36) 12 -1500 RPM
Gearbox Range of Thread per inch 2 - 120
Gearbox Range of Feed per Revolution .001" - .068"
Gearbox Thread Cut (66) 2 - 120
Tailstock Spindle Diameter 4.25 inches
Tailstock Spindle Travel 7 inches
Tailstock Spindle Taper No.4 Morse
Bed Width 17 inches
Main Drive Motor 20 HP
Approximate Weight 10600 pounds

Equipped With

12” 3-Jaw Chuck. Front Operated Chuck Collet and Assorted Collets. Compound Cross Slide with Square Tool Post. Tailstock with Handwheel Quill Advance. Acu-Rite 2-Axis D.R.O. Worklight. Coolant. Chip Pan.

This lathe is offered cleaned, cycled and guaranteed to be in good working condition
