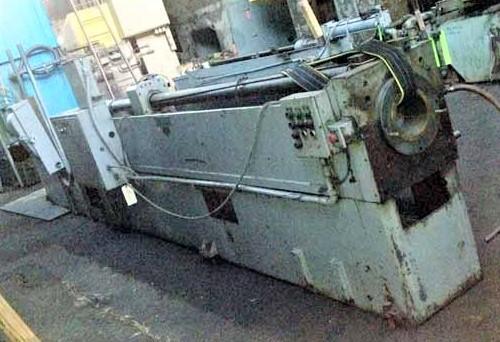

25-Ton x 120" stroke Oilgear Model XL-50Bx120 Horizontal Broaching Machine

Brand
OILGEAR

Model
XL

Stock #
bro493

Condition
Used

Year
1953

Location
F.O.B. MI Shipping Point,
United States

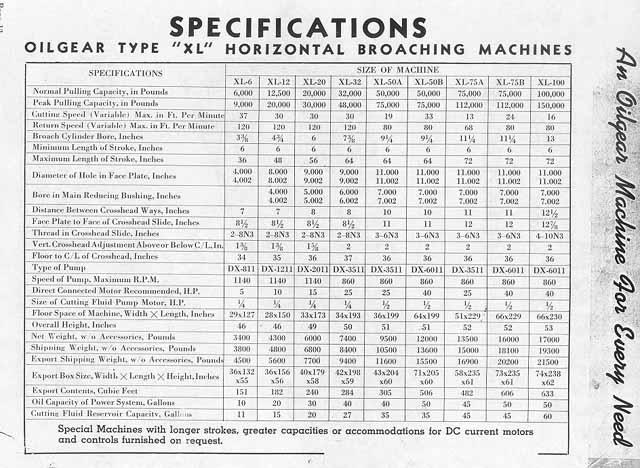

Specifications

Normal Pulling Capacity 50000 pounds
Peak Pulling Capacity 75000 pounds
Cutting Speed (Variable), Max. 15-30 FPM
Return Speed (Variable), Max. 80 FPM
Broach Cylinder Bore 9-1/4"
Minimum Length of Stroke 6"
Maximum Length of Stroke 120"

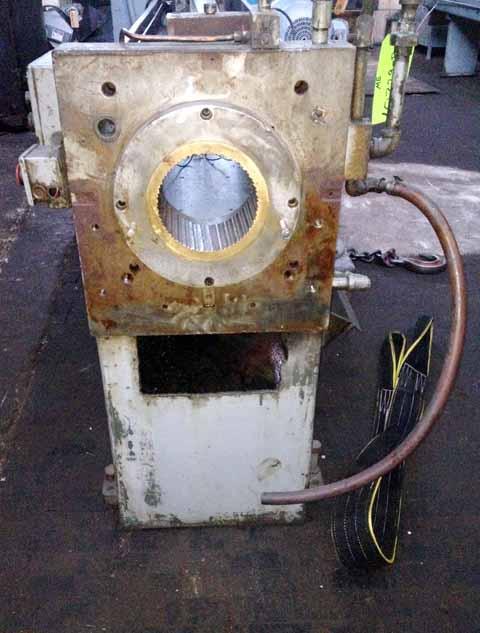

Diameter of Hole in Face Plate 11"
Bore in Main Reducing Bushing 7"
Distance between Crosshead Ways 10"
Face Plate to Face of Crosshead Slide 11"
Vertical Crosshead Adjustment Above or Below C/L 2"
Floor to C/L of Crosshead 36"
Direct Connect Motor Recommended 40 HP
Actual Dimensions without retriever 306" x 70" x 78"
Actual Dimensions with retriever 476" x 70" x 78"
F.O.B. MI Shipping Point

Equipped With

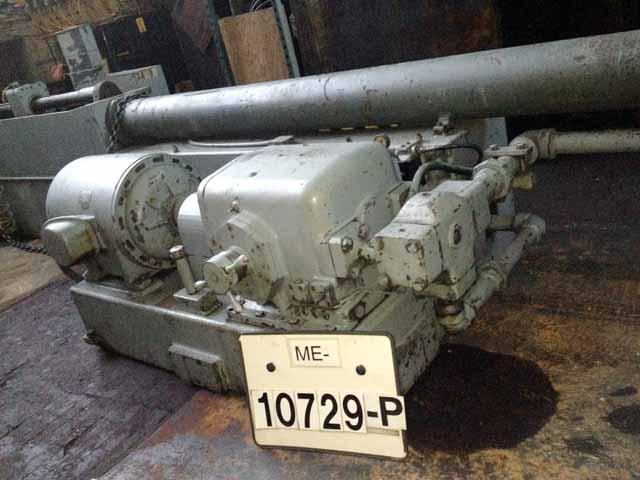

Variable Speed Cutting And Return Stroke. Variable Length Of Stroke. 11" Diameter Hole In Work Face Plate. Retriever/Follower Unit. Spiral Attachment for Rifling or Helical Broaching. Oilgear Hydraulic Pump. Lever Activation.

This machine is being offered cleaned and cycled. It can be inspected under power in the Detroit area at your convenience.
