OPTICAL GAUGING PRO
Model
OQ30
Stock #
INS302
Condition
Used
Year
1982
Location
Lake Bluff, Illinois
United States
| Screen Diameter | 30 inches |
| Angular (Graduated Protractor w/Vernier to 1' of Arc) | 360° |
| Table Size | 8" x 32" |
| Table Travel, Horizontal | 12 inches |
| Table Travel, Vertical | 9 inches |
| Focus Travel | 3 inches |
| Angular (Graduated Protractor w/Vernier to 1’ Arc) | 360° |
| Helix Rotation (to 5° Arc) | ± 15° |
| Throat Clearance | 20 inches |
| Working Distance, Focal Plane to Front Relay Lens Housing | 10.375 inches |
| Optical Axis to Worktable, w/Helix (Max/Min) | 9.75" / 0.75" |
| Optical Axis to Worktable, w/o Helix (Max/Min) | 12" / 2" |
| Worktable to Floor, w/Helix (Max/Min) | 44.25" / 34.25" |
| Worktable to Floor, w/o Helix (Max/Min) | 43" / 33" |
| Approximate Dimensions | 72"W x 88"L x 80"H |
| Approximate Weight | 5500 pounds |
| F.O.B. | Our Plant |

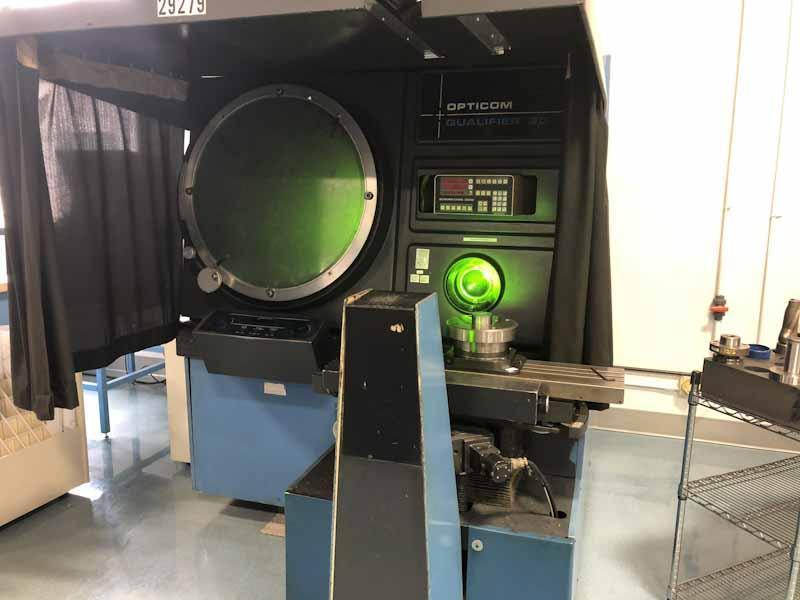

Relay Lens System for Erect Unreversed Image (Left-Right, Up-Down). 6” Thick Granite Base. Twin Screw Table with Variable Speed Power Elevation. Heavy Duty Table Slide with Cross Roller Construction for smooth, variable speed positioning. 6-Position Power Lens Turret with 10x , 20x, 31.25x, 50x and 100x Lenses. Quadra-Chek 2000 Programmable Digital Readout. Manual Protractor. Horizontal, Vertical and Surface Illumination. Overhead Hood and Curtain.
Cleaned and Cycled.
