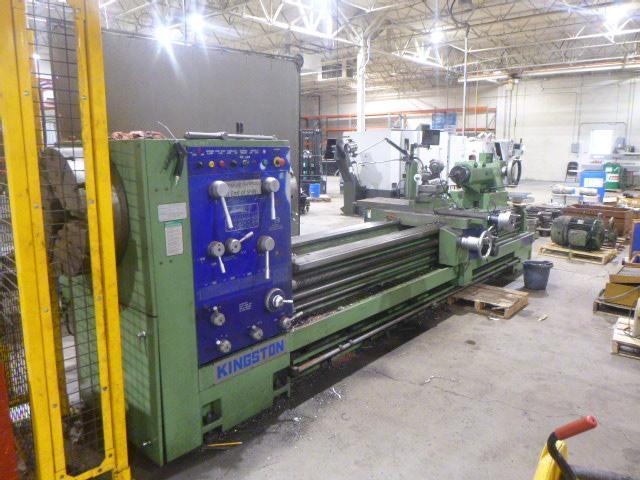

31”/41” x 120” Kingston Model HB31120 Big Bore Gap Bed Engine Lathe

Brand
KINGSTON

Model
HB31120

Stock #
LKINX

Condition
Used

Year
2010

Location
City Not Specified,
United States

Specifications

Swing Over Bed 31.5”
Swing Over Cross Slide 17.7”
Swing Over Gap 41.3”
Distance Between Centers 120”
Spindle Bore 6”
Spindle Nose ASA-A2-11
Number and Range or Spindle Speeds (18) 7-700 RPM
Tailstock Quill Travel 7.9”
Tailstock Quill Diameter 6.5”
Tailstock Center No. 6 MT
Spindle Drive 30 HP
Electrics 3/60/220V
Approx. Dimensions 73” FB X 206” LR
Approx. Weight. 21,000 Lbs

Equipped With

EQUIPPED WITH:

21” 3-Jaw Front Thru-Hole Chuck. 24” 3-Jaw Rear Thru-Hole Chuck. 11.8” Steady Rest with Roller Jaws. Aloris Quick Change Tool Post with (5) Tool Holders. Inch/Metric Threading. 4-Way Power Rapid Transverse. Motorized Tailstock Body Movement. Newall 2-Axis DRO. Coolant System. Hardened & Ground Bed Ways.
