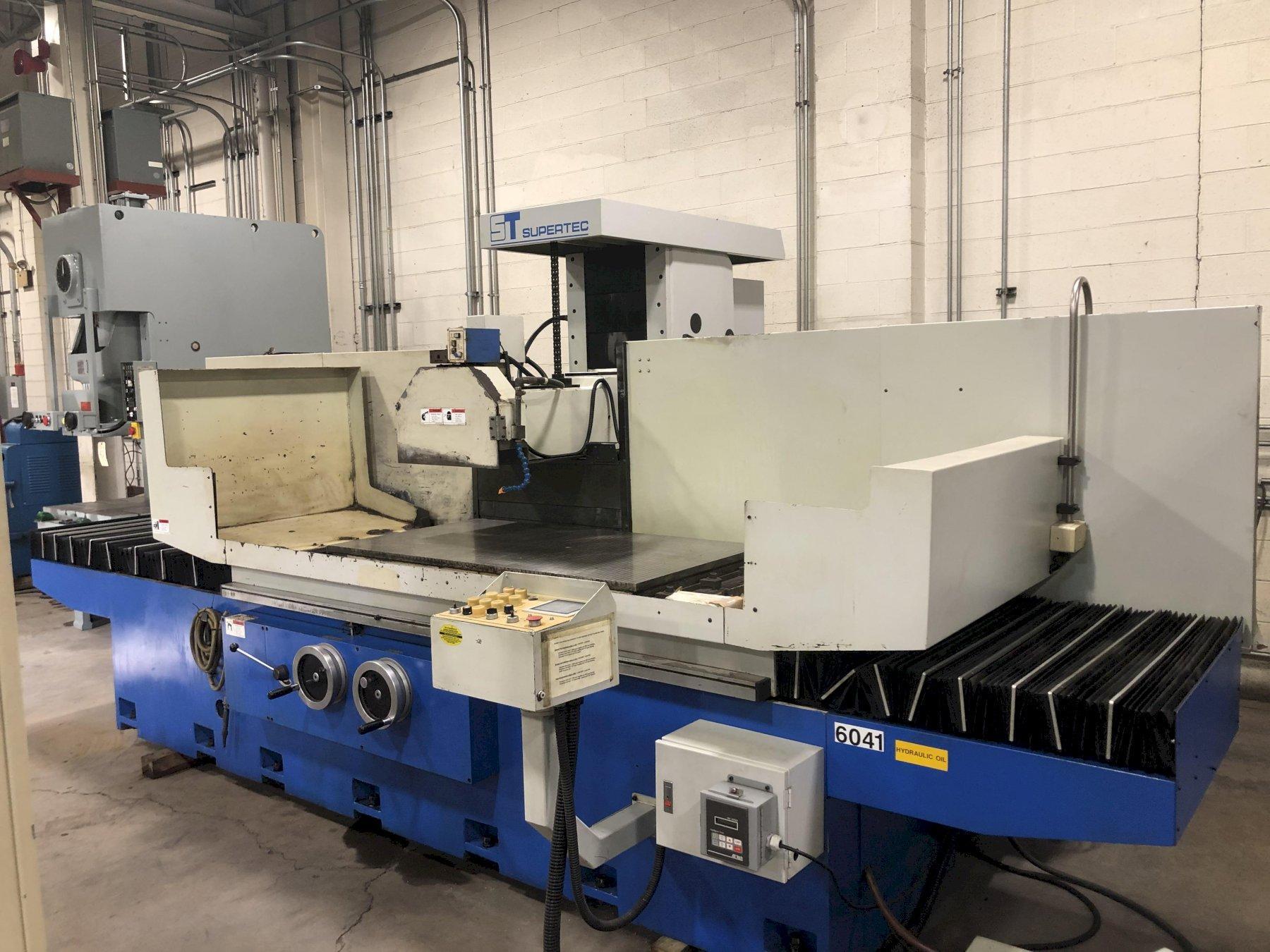

32” x 60” Supertec STP3260 CII Programmable Column Type Hydraulic Surface Grinder

Brand
SUPERTEC

Model
STP3260 CII

Stock #
g1449

Condition
Used

Year
2006

Location
Lake Bluff, Illinois
United States

Specifications

Table Clamping Surface (W x L) 32" x 64.5"
Maximum Grinding (W x L) 32" x 61"
Maximum Cross Travel 33.5 inches
Maximum Longitudinal Travel 67 inches
Max.Distance between Spindle Center and Table 31.5 inches
Downfeed per Division 0.0002 inches
Downfeed per Revolution 0.02 inches
Auto-Downfeed Variable 0.0001" - 0.005"
Longitudinal Table Speed 10 - 82 RPM
Crossfeed Intermittent 0.04" - 1.0"
Crossfeed Continuous 4 FPM
Crossfeed per Division 0.001 inches
Grinding Wheel Dimensions (OD x ID x W) 20" x 5" x 2"
Spindle Speeds 1100 RPM
Spindle Motor 10 HP
Total Power Motors 18.5 HP
Floor Space (H x W x L) 91" x 135" x 211"
Approximate Weight 18040 pounds

Equipped With

Column Travel Design. 31.5” x 59” Electro Magnetic Chuck and Controls. Supertec-Mitsubishi Conversational PLC Controls for Automatic Cycling with Touch Screen and Push Buttons. Handwheel Controls. Over the Wheel Dresser. Coolant System with Paper Filtration. Chiller for Hydraulic System. Halogen Worklight. Splash Guards.

This grinder is offered cleaned, cycled, and guaranteed to be in good working condition. It can be inspected under power at your convenience.
