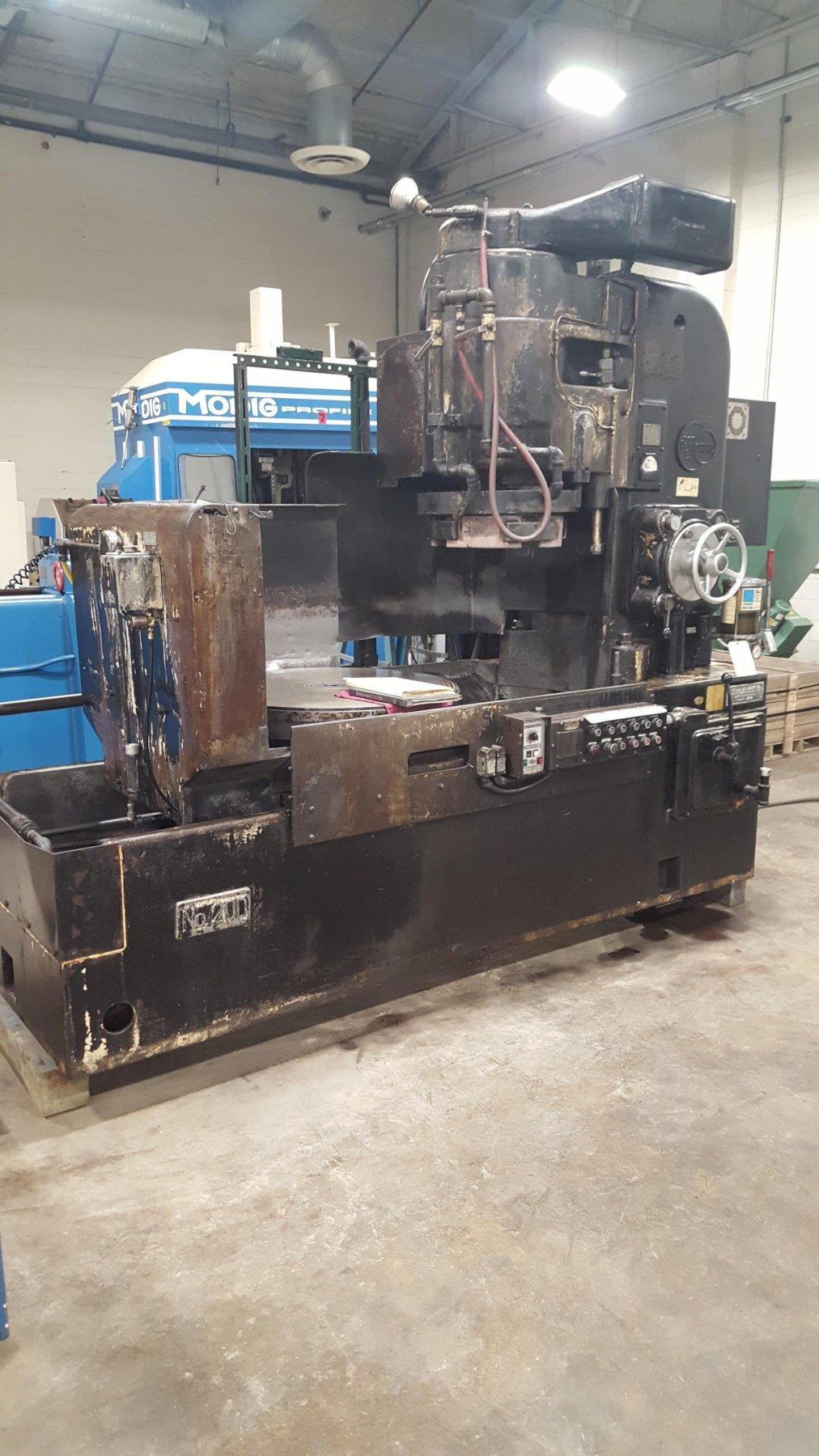

36” Blanchard Model 20D-36 Vertical Spindle Rotary Surface Grinder

Brand
BLANCHARD

Model
20D-36

Stock #
g1442

Condition
Used

Year
1970

Location
Lake Bluff, Illinois
United States

Specifications

Magnetic Chuck Diameter (0.5" Thickness) 36 inches
Maximum Swing Inside Guards 38 inches
Maximum Height under New Wheel 12 inches
Segmented Wheel Diameter 20 inches
Wheel Speed 720 rpm
Grinding Wheel Motor 30 HP
Table Speeds (6) 6 - 33 rpm
Maximum Table Load 3000 pounds
Automatic Downfeed to Wheel Head .004 - .080 ipm
Electrics 3/60/230 volt
Approximate Dimensions 128” x 84” x 106” Height
Approximate Weight 14000 pounds

Equipped With

36” Electromagnetic Chuck. Neutrofier Variable Magnetic Chuck Control. 30 HP Spindle Drive Motor. 24” Height under new wheel. Hand and Power Elevation to Wheel Head. Incremental Downfeed. Wheel Dresser. Bijur Lubrication System for Saddle Traverse. Trabon Lubrication System for Column. Dry Base. Coolant Pump and Tank. Splash Guards.

Cleaned. Painted. Cycled. 30-Day Return Privilege.
