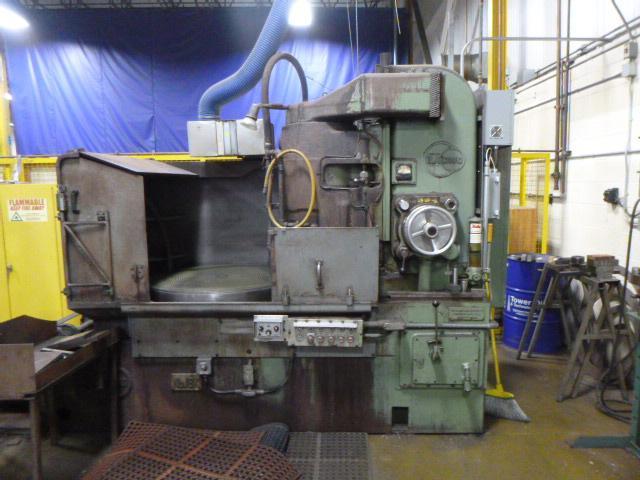

42” Blanchard Model 18-42 Rotary Surface Grinder

Brand
BLANCHARD

Model
18-42

Stock #
G1842X

Condition
Used

Year
1966

Location
Milwaukee, Wisconsin
United States

Specifications

Chuck Dia. 42 inches
CNC Control no
Chuck Diameter 42"
Maximum Swing Inside Guards 48"
Maximum Vertical Height Under Wheel 18"
Grinding Wheel Size (Segmented-Cortland Style) 22"
Grinding Wheel Speed 720 RPM
Chuck Speeds 6, 9, 12, 18, 25, 33 RPM
Chuck Live (Approximately) .39”
Automated Down Feed of Grinding Head .004” - .080”/ Rev
Spindle Drive 40 HP
Table Drive 3 HP
Electronics 3 / 60 /460 V
Approximate Dimensions 117” LR X 65” FB X 98” H
Approximate Weight 14,000 LBS

Equipped With

This machine is currently in production and can be inspected under power in the Milwaukee area at your convenience.

Specifications Subject to Verification
