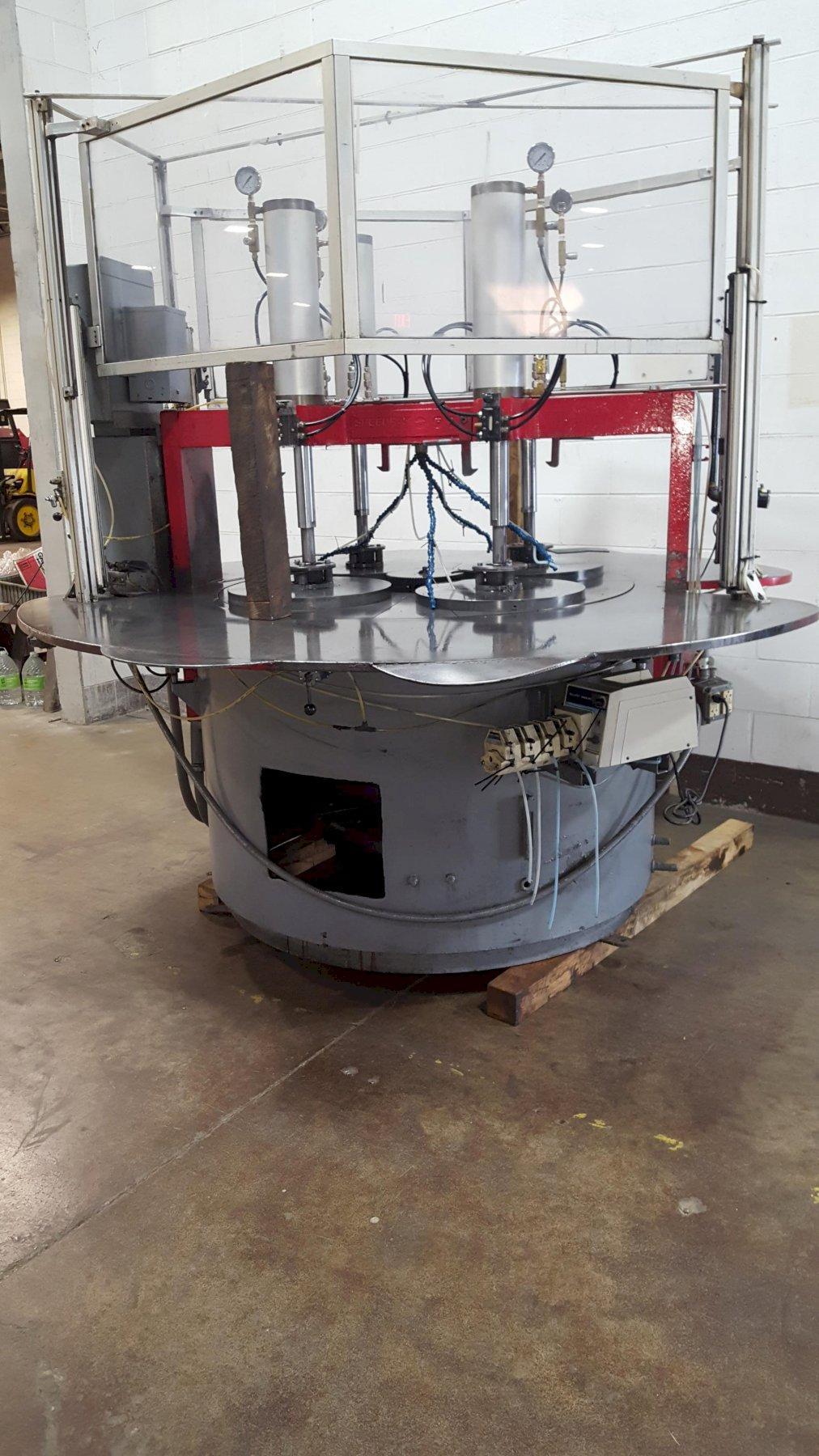

48” Speedfam BTAW Single Sided Lapping Machine

Brand
SPEEDFAM

Model
BTAW

Type
Lappers

Stock #
LA193

Condition
Used

Year
1979

Location
Lake Bluff, Illinois
United States

Specifications

Plate Diameter 48 inches
Ring ID (4) 18 inches
Total Ring Area 1018 sq/in
Segment Thickness 0.625 inches
Plate RPM 0 - 63 RPM
Motor 7.5 HP
Down Pressure 1260 lbs/head
Approximate Size 96" x 96" x 90"H

Equipped With

48” Flat Cast Iron Water Cooled Lapping Plate. (4) Pneumatic Hold Downs with updated Cylinders and Pressure Plates. Variable Speed Drive Ring with DuraPulse Programmable VFD. Adjustable Height Parts Loading Table Cycle Timing. Guarding. (4) Retaining Rings. Pinion Gear for Carrier Reversing.

The Speedfam is offered cleaned, cycled, and guaranteed to be in good working order. It can be inspected under power on our floor.
