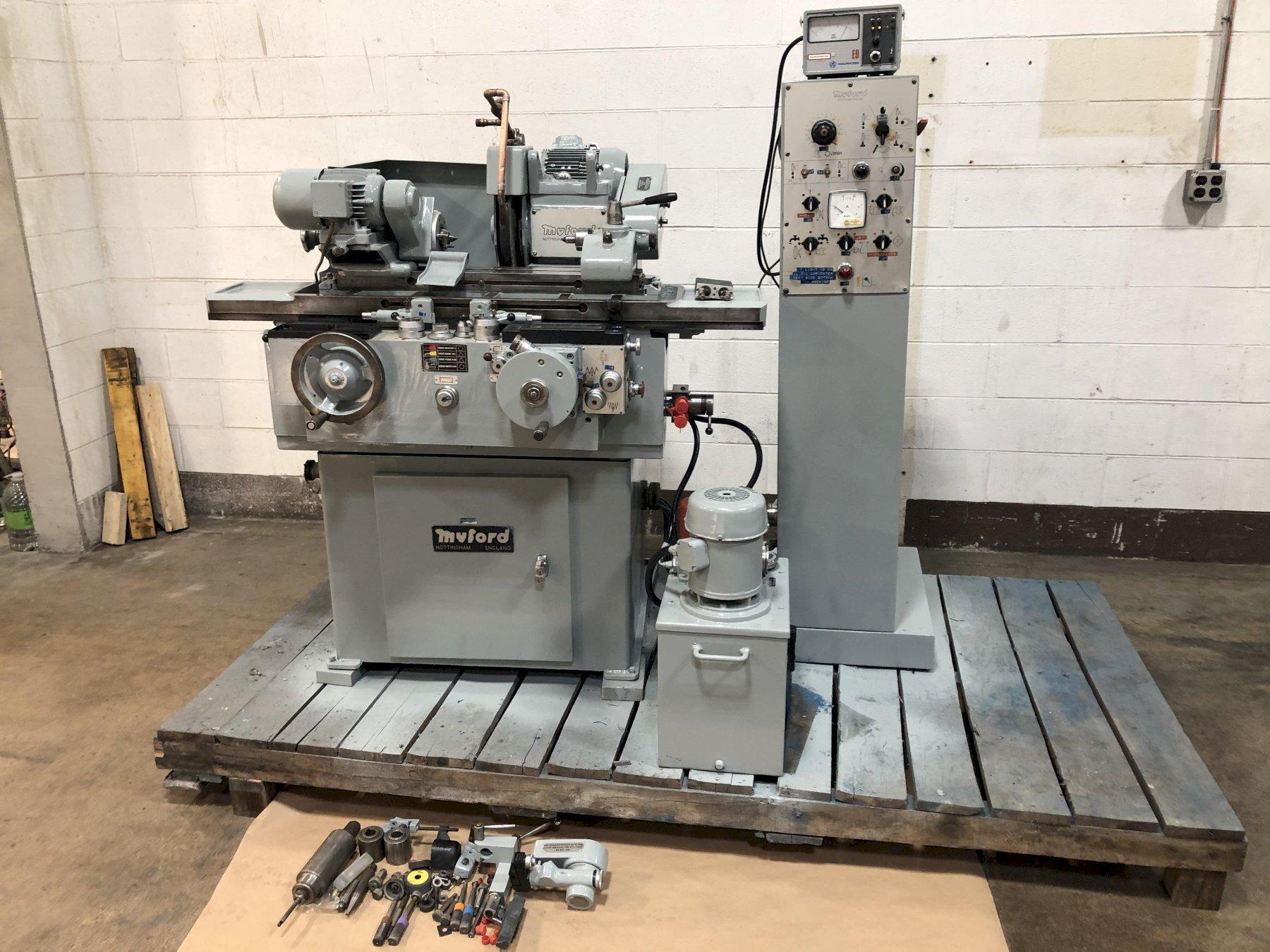

5 x 12 Myford Model MG12-HPM Automatic Plain Cylindrical Grinder












5 x 12 Myford Model MG12-HPM Automatic Plain Cylindrical Grinder

Brand
MYFORD

Model
MG12-HPM

Type
Grinders, Cylindrical (Incl Plain & Angle Head)

Stock #
g1399

Condition
Used

Year
1990

Location
Lake Bluff, Illinois
United States

Request a Quote

Specifications

Swing over Table	5"
Max. Grinding Diameter	3"
Max. Table Travel	13.75"
Distance Between Centers	12"
Swiveling Range of Table	Either Way 10°
Dwell (carriage)	0-8 sec
Hydraulic Rapid Retraction	1-1/8"
Hydraulic Table Travel	0-120 in/min
Grinding Wheel Size	12" x 1-1/2" x 5"
Workhead Speeds (variable)	50-900 RPM
Plunge Feed Rate (maximum)	.125 in/min
Spark Out	0-50 sec.
Collet Capacity (maximum)	3/4"
Infeed of Wheelhead	3-7/8"
Panel Size	24" LR x 24" FB x 60"
Wheelhead Motor	3 HP AC
Workhead Motor	1/2 HP AC
Hydraulic Motor	1/2 HP AC
Approx. Machine Dimensions	56" x 56" x 56"
Approx. Machine Weight	2,226 lbs
F.O.B.	Our Plant

Equipped With

Hydraulic Table Traverse With Dwell Control. Hydraulic Rapid Advance/Retraction Of The Wheelhead. Automatic Plunge Cycle. Automatic Hydraulic Wheelhead Infeed On Traverse And Plunge Grinding. Spark Out Dwell Timer. Automatic Wheelhead Retraction. Plain Workhead And Tailstock. Free Standing Electrical Control Cabinet. Hydraulic Unit. Collets And Draw Tube Assembly. Workhead With Combination Live/Dead Center. Dresser Bracket. Swing Arm Diamond Dresser With Coarse And Fine Adjustment Mounts On Tailstock. Spare Wheel Adaptor. Wheel Balancing Arbor. Marposs E9 Table Mounted Gauging. Assorted Drive Dogs. Assorted Centers. Miscellaneous Wrenches And Repair Parts.

This machine is being offered checked out in our shop, cleaned and cycled. It is being offered with a 30-Day Return Privilege and may be inspected under power here in our plant.
