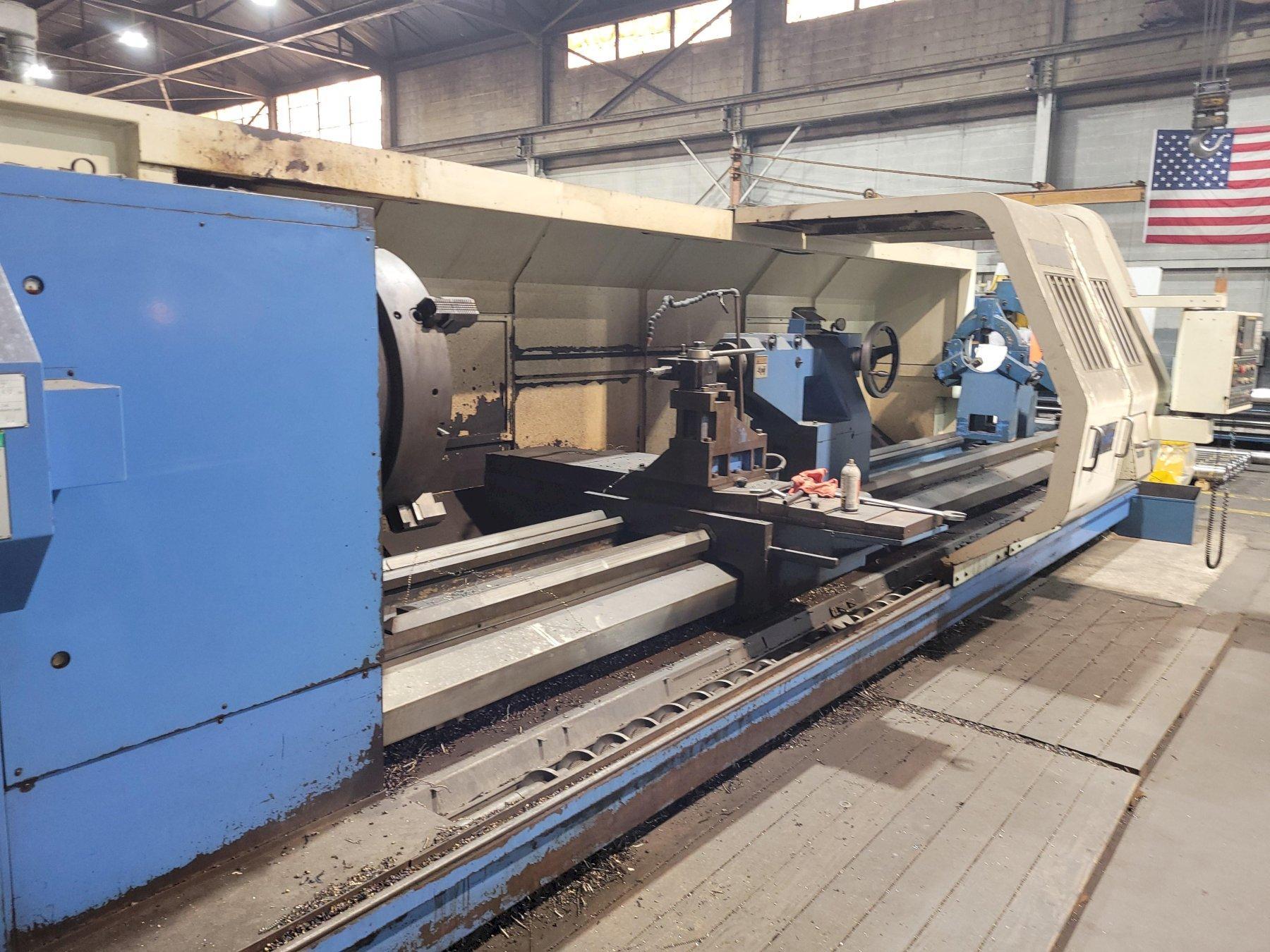

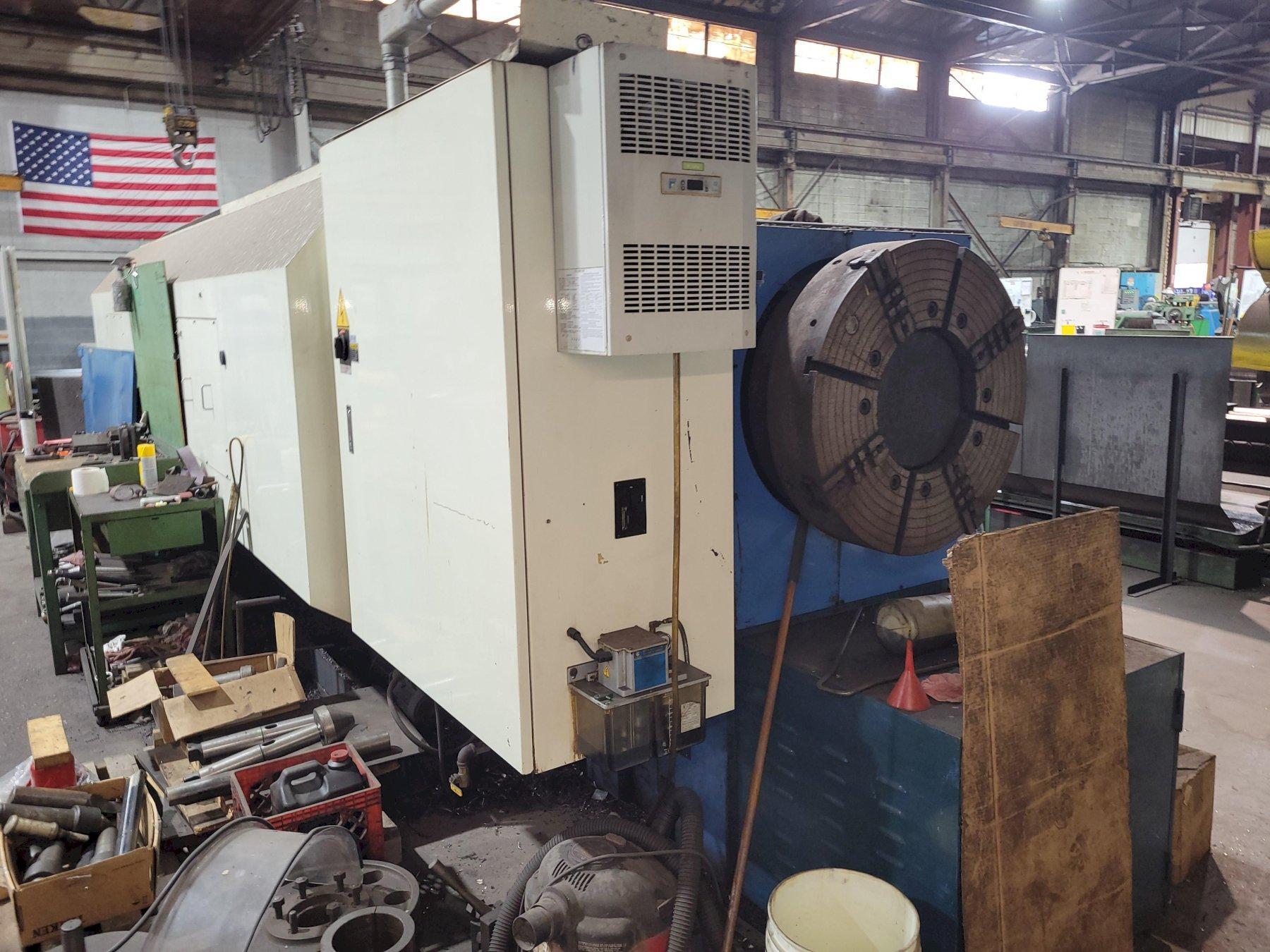

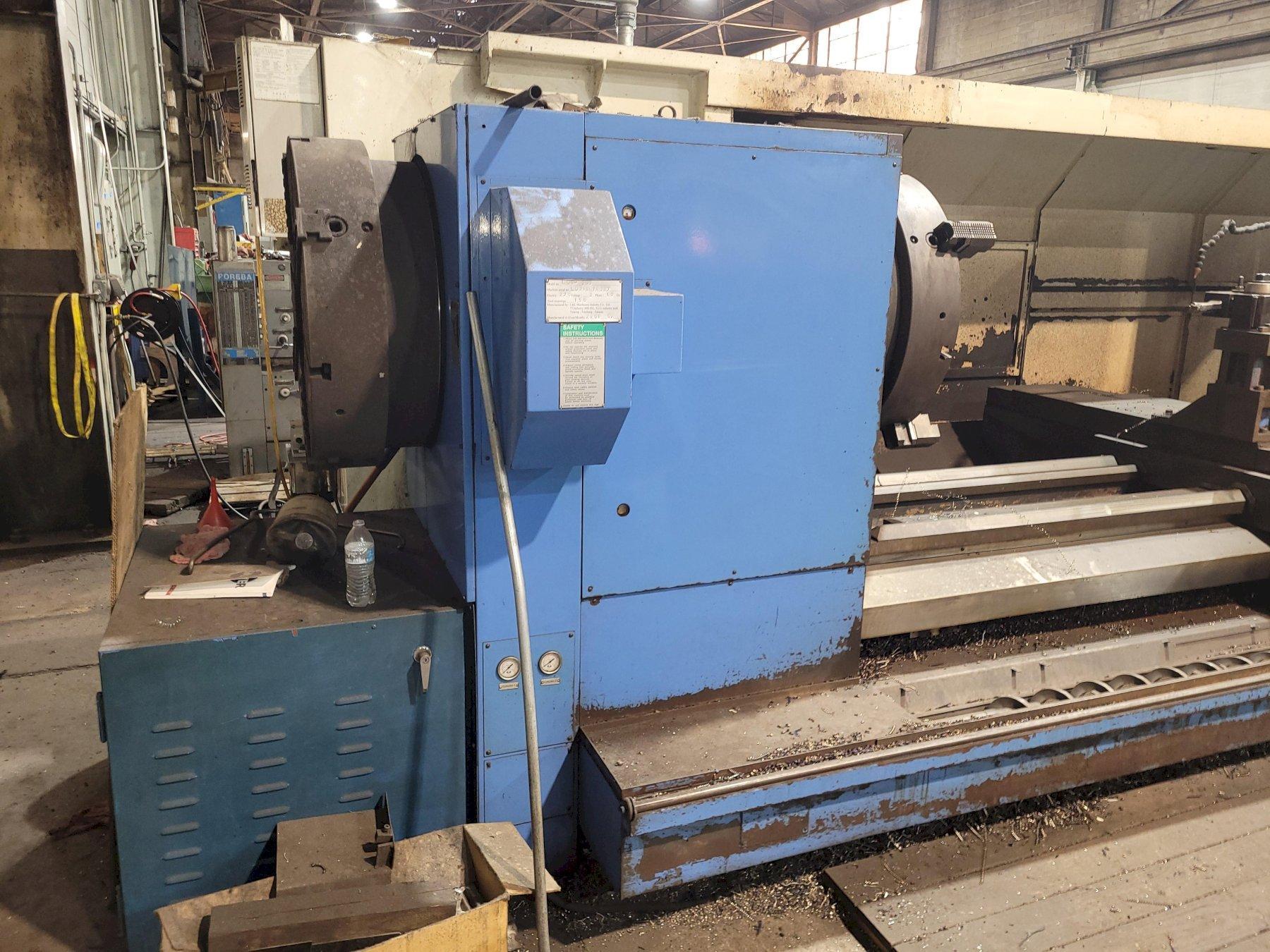

50" x 200" Kingston LD50-200 CNC Hollow Spindle CNC Lathe











50" x 200" Kingston LD50-200 CNC Hollow Spindle CNC Lathe

Brand
KINGSTON

Model
50" x 200" LD50-200

Type
Lathes, Flat Bed, CNC

Stock #
MT6087

Condition
Very Good

Year
2006

Location
Libertyville, Illinois
United States

Request a Quote

Specifications

Swing Over Bed	50"
Swing over Cross Slide	33.5"
Max Dist Between Centers	200"
Hole Thru Spindle	14.5"
Center Height	25.6"
Spindle Speed	9-300 RPM
Width of Cross Slide	16.5"
Width of Carriage	37.4"
Tailstock Center	6 MT
Spindle Nose	A2-20
Approx Weight	50600 lbs

Equipped With

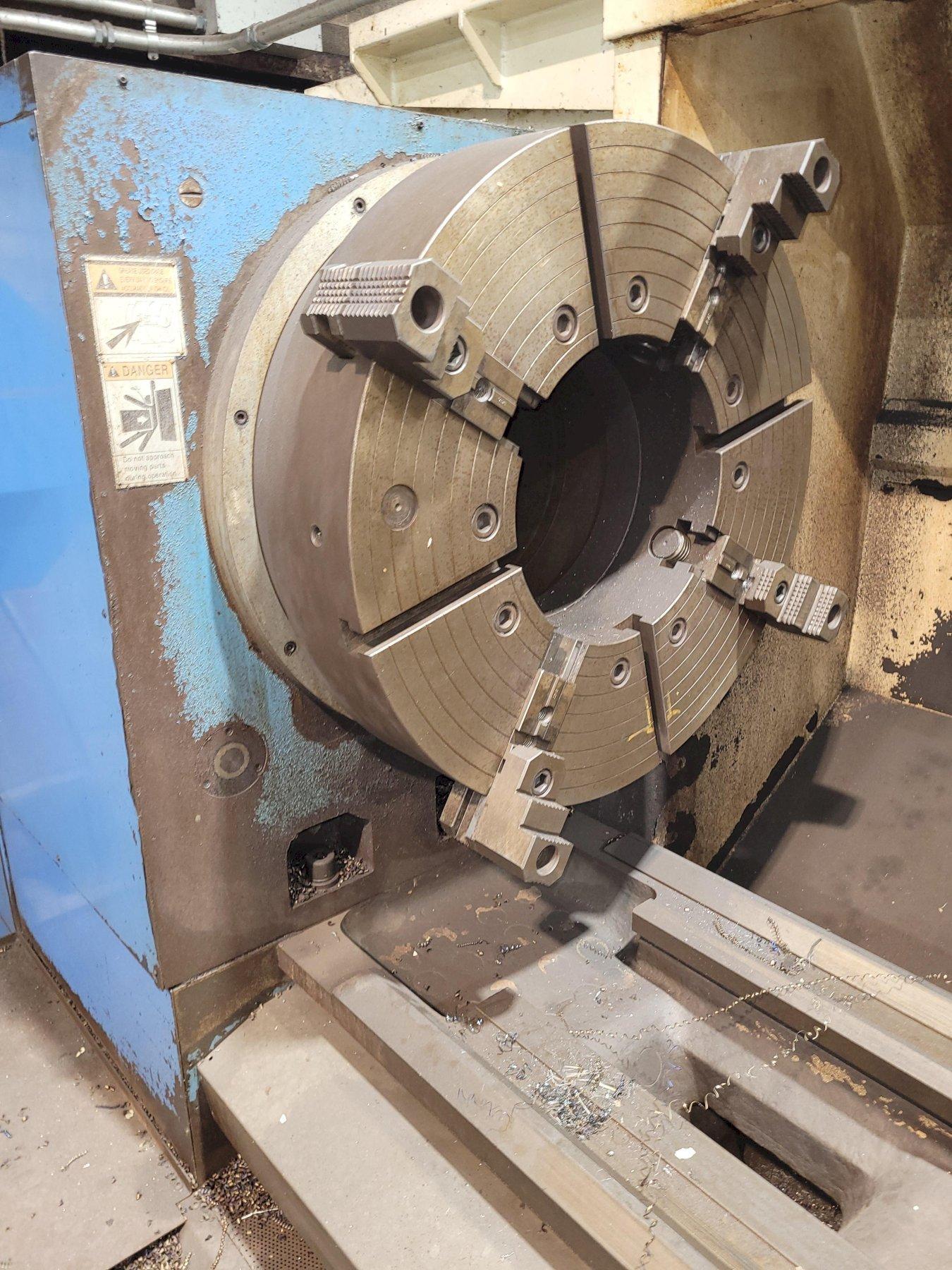

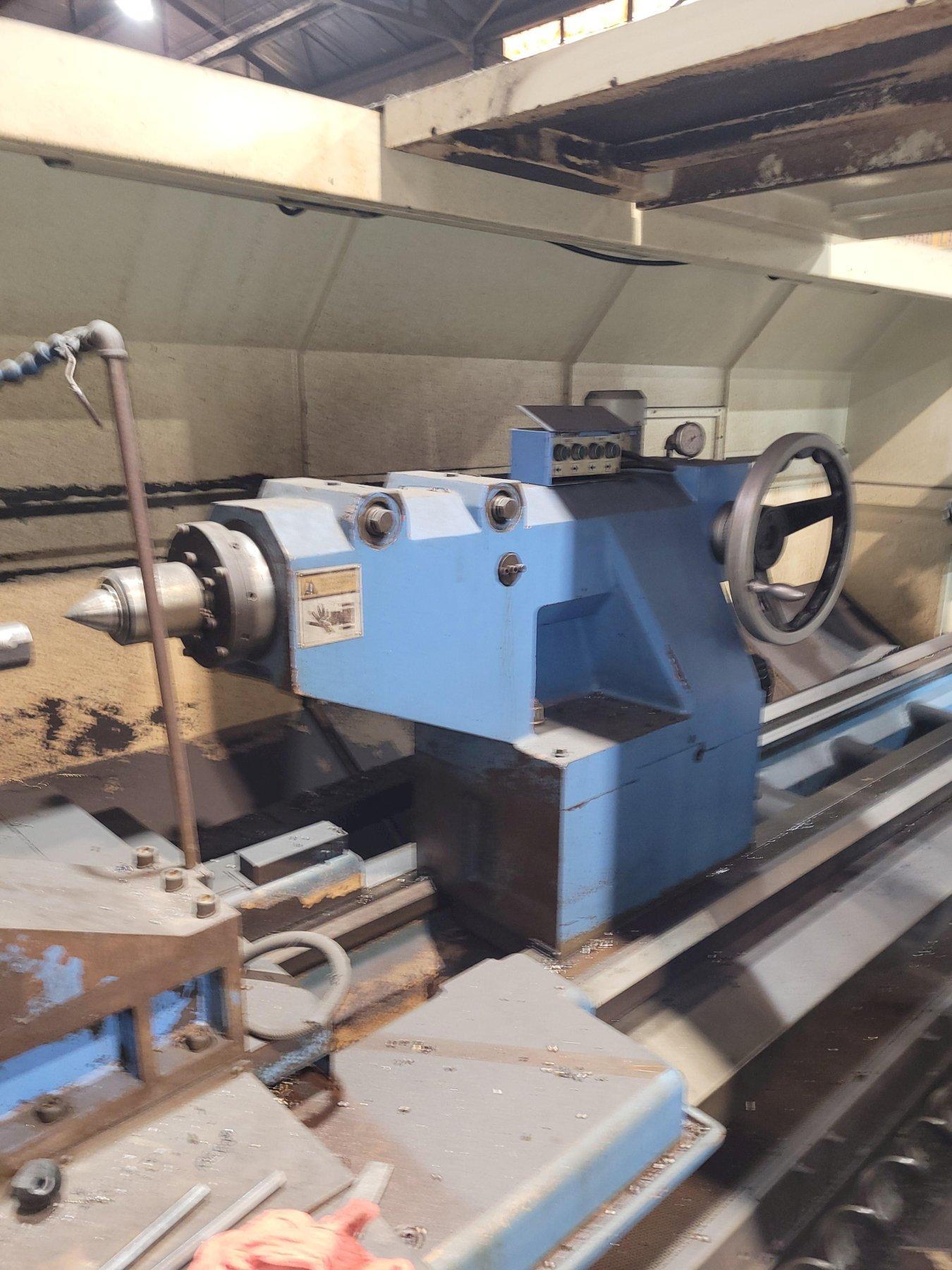

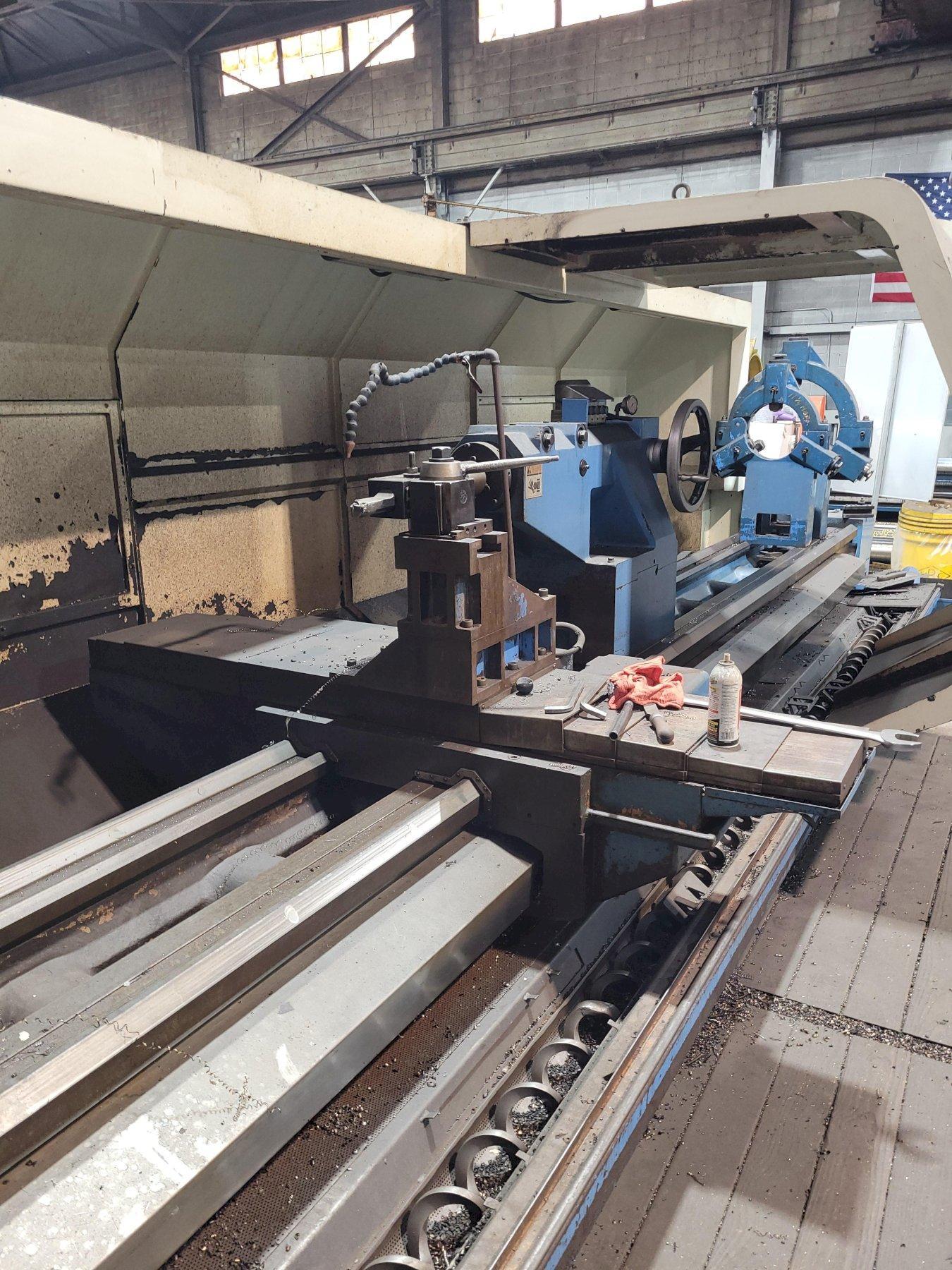

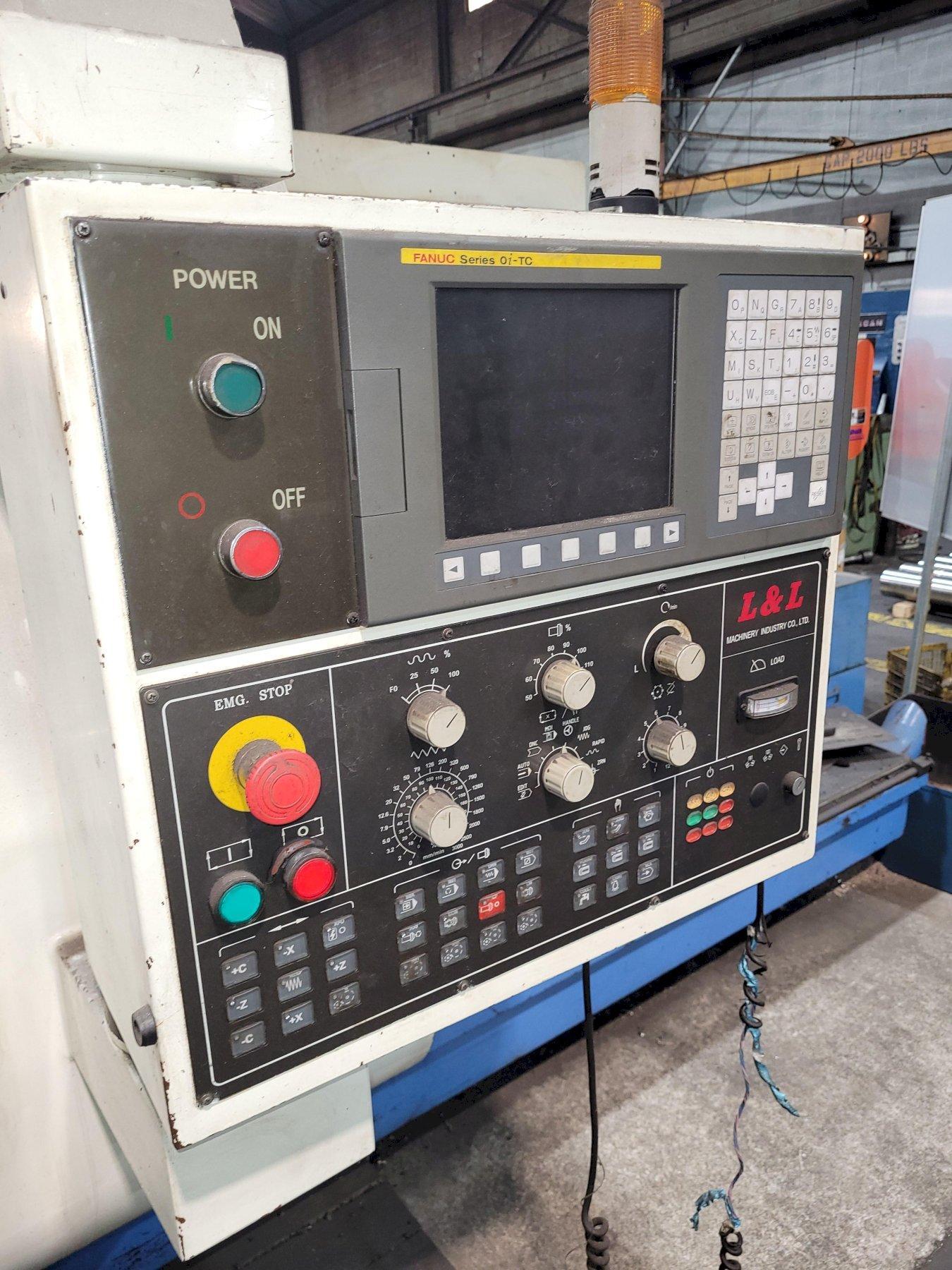

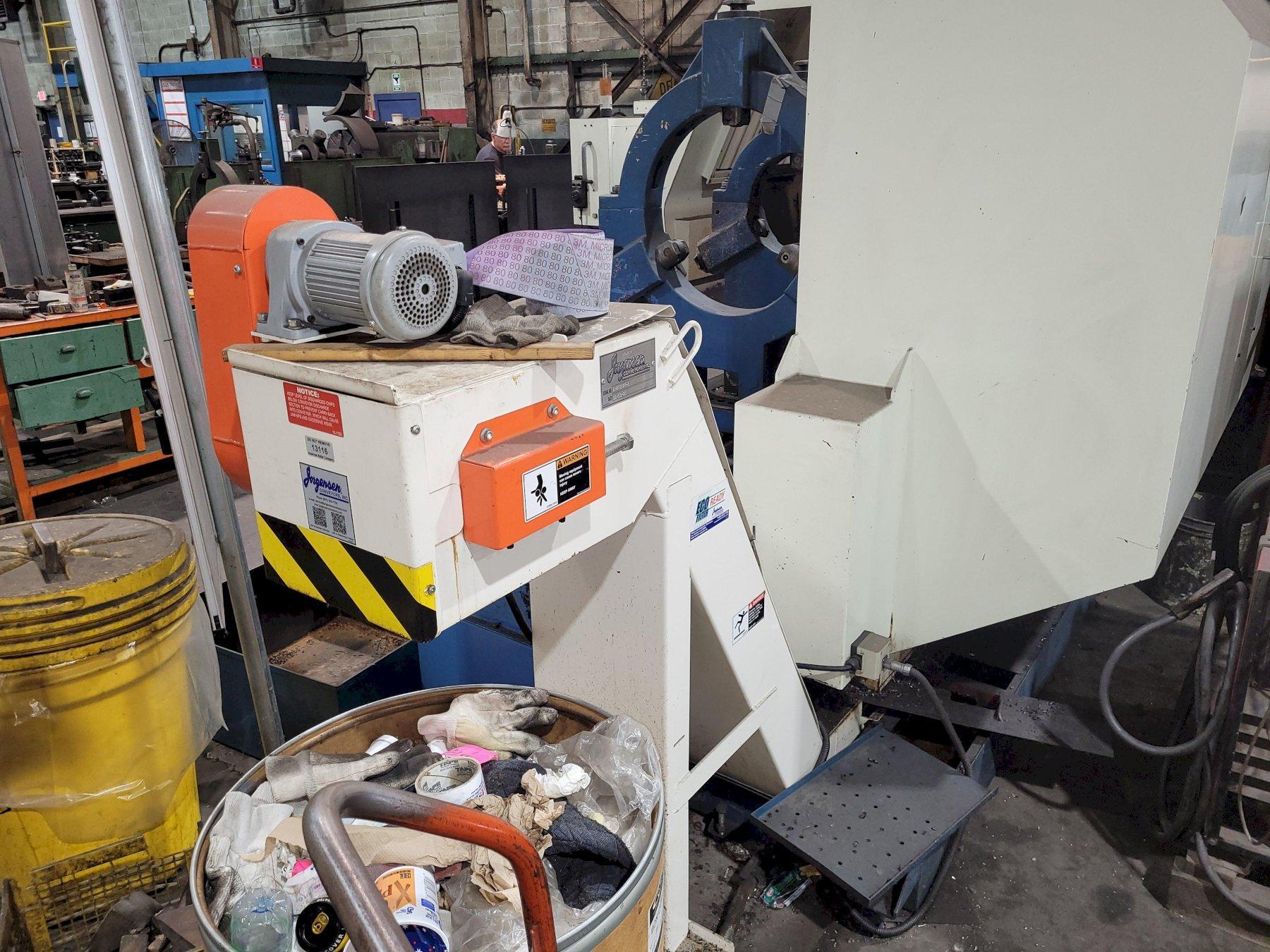

Equipped With: Fanuc 0iTC Swivelling Pendant Mounted CNC Controls with Remoted MPG. 14.5" Hole Thru Spindle (2) 32" 4 Jaw Hole Thru Chucks Mounted Front and Rear. Hydraulic Tailstock with Rotating Quill wih Push Button Controls for Positioning and Quill Advance and Retract. Programable Cross Slide with front Mounted Tool Post. (1) 22" Capacity Steady Rest. (1) 12" Capacity Steady Rest. Full Length Jorgenson Chip Conveyor. Full Length Splash Guard. Sliding Front Splash and Chip Guard. Misc Tooling.
