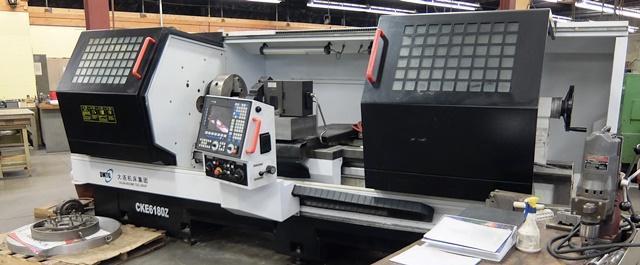

31" x 79" DMTG Model CKE6180Z Flat Bed CNC Lathe

Brand
DMTG

Model
CKE6180Z

Stock #
I:2177

Condition
Not specified

Year
2011

Location
Lake Bluff, Illinois
United States

Specifications

Equipped With

EQUIPPED WITH:
Fagor 8055TC CNC control with RS232 Port. 16" 3-Jaw Chuck. 20" Face Plate. 32" Drilled and Tapped Fixture Plate. 6-Position Vertical Turret. Steady Rest. Coolant System. Manuals and Drawings.



SPECIFICATIONS:

Swing over bed....................................................... 31.5" (800mm)

Max. length of workpiece..................................... 78.7" (2000mm)

Swing over cross slide............................................ 19.3" (490mm)

X-travel (approx.)...................................................... 18" (457mm)

Z-travel.................................................................. 70.5" (1790mm)

Spindle nose.............................................................................. C11

Spindle bore.............................................................. 3.9" (100mm)

Spindle speeds (infinitely variable in 4 steps)........ 40 – 1,000 rpm

Spindle motor........................................................................ 15 Hp

Rapid traverse (X/Z)................................. 157/315 ipm (4/8 mpm)

Turret tool changing time....................................................... 3 sec.

Tailstock quill travel.................................................. 9.4" (240mm)

Tailstock quill taper............................................................... #5MT

Weight (approx.).............................................................. 13,420 lb.
