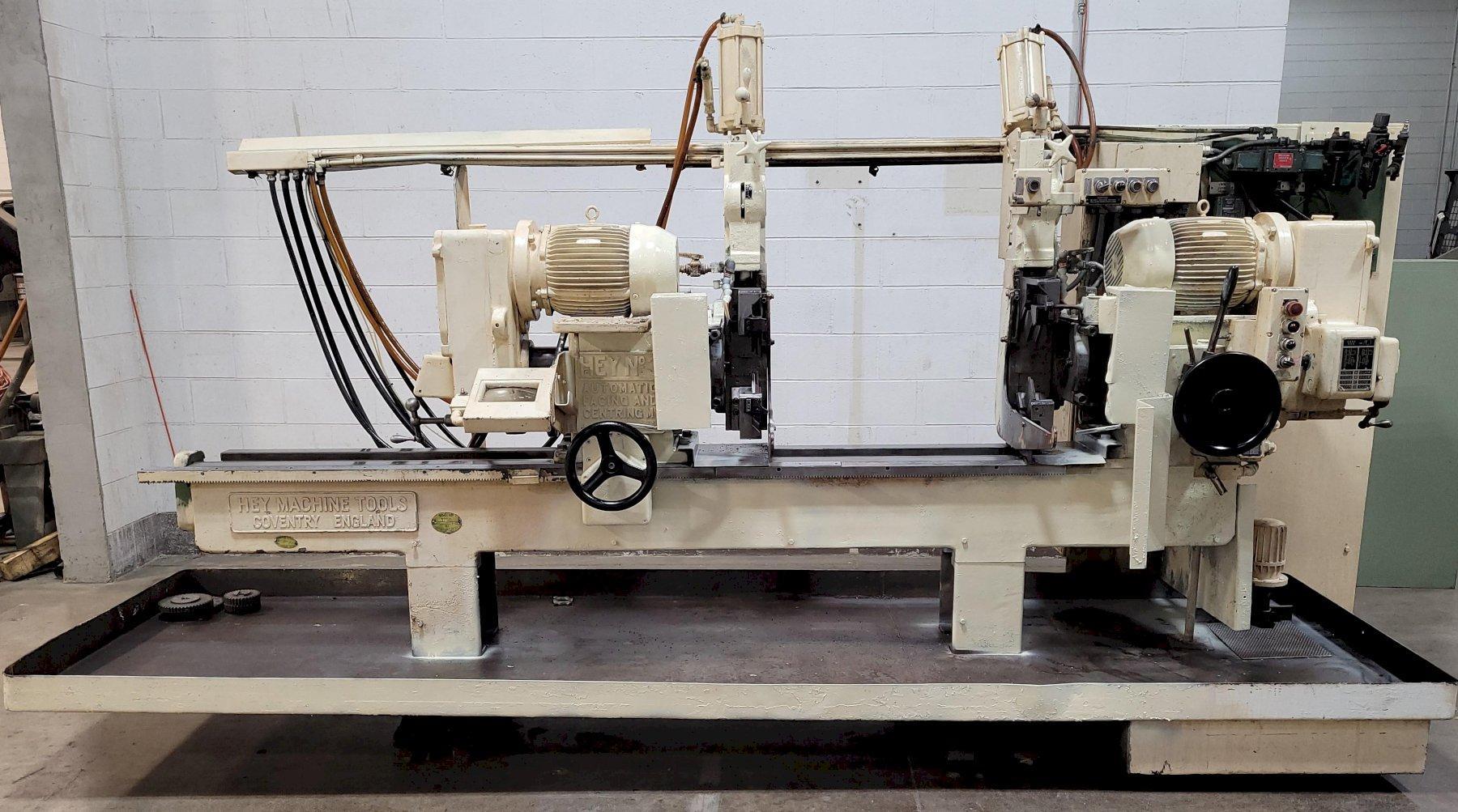

6.25" x 75" Hey No. 3 Double End Facing And Centering Machine

Brand
HEY

Model
No. 3

Stock #
M2024

Condition
Used

Year
1981

Location
Lake Bluff, Illinois
United States

Specifications

Maximum Diameter Work Held in Standard Vise 6.25"
Minimum Diameter Work .25"
Maximum Work Length 75"
Minimum Length (Held in Two Vises) 3"
Minimum Length (Held in One Vise) .75"
Maximum Diameter Admitted 21"
Maximum Diameter of Facing with Standard Cutters 5.12"
Spindle Speed Range 80 - 1175 RPM
Feed Stroke Available with Standard Cams 1.5" - 2.5"
Rapid Traverse Rate 250 IPM
Approximate Weight 7,000 Lb

Equipped With

Equipped with:

Motor-Driven with 15 HP, 3 Phase, 60 Cycle AC Gear Drive Spindle Heads with Controls, Automatic Work Cycling Controls, Quick Advance, Slow Feed (for Drilling), Dwell (for Facing Quick Returns), Automatic Trip, 6” Facing Cutter Heads, Air Operated Vices, Coolant System, Longitudinal Scale, Miscellaneous Tooling and Gears.
