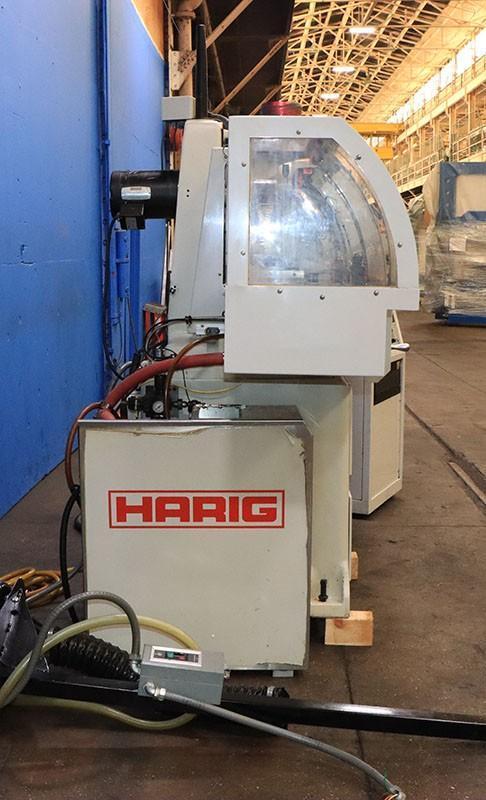

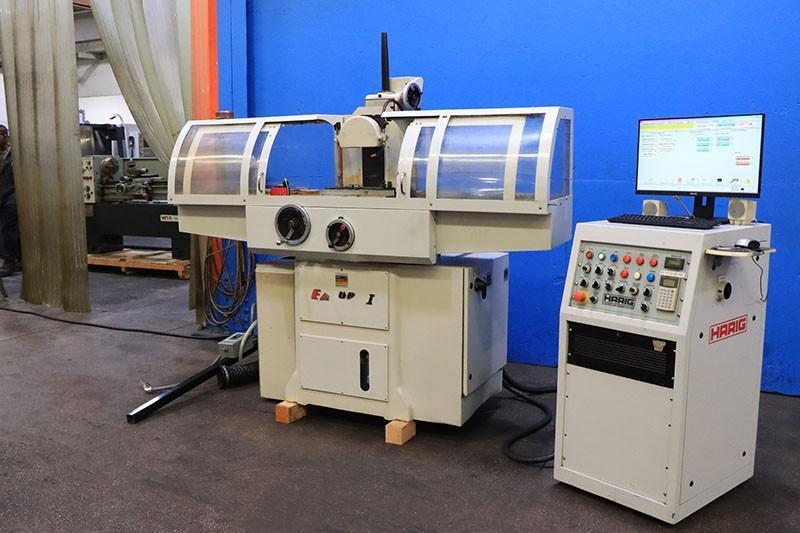

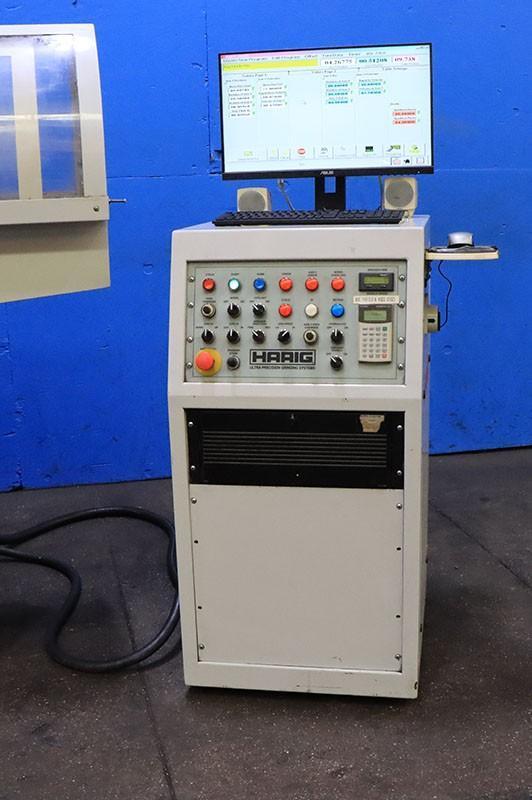

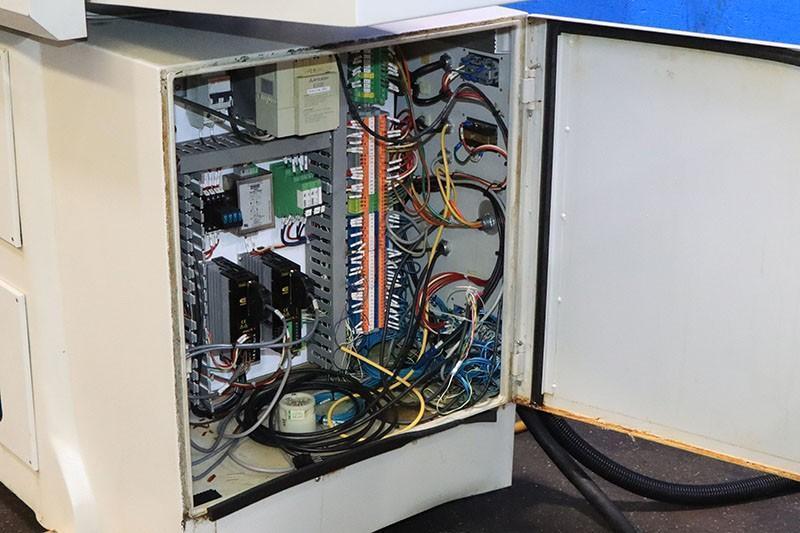

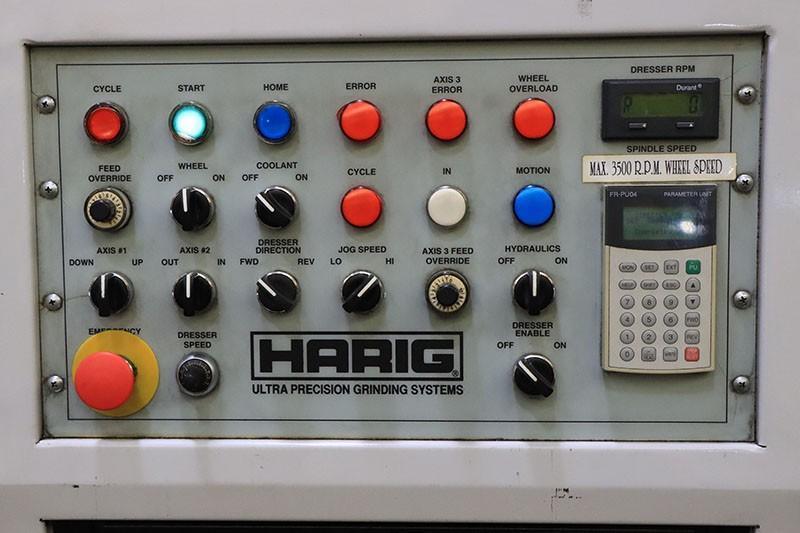

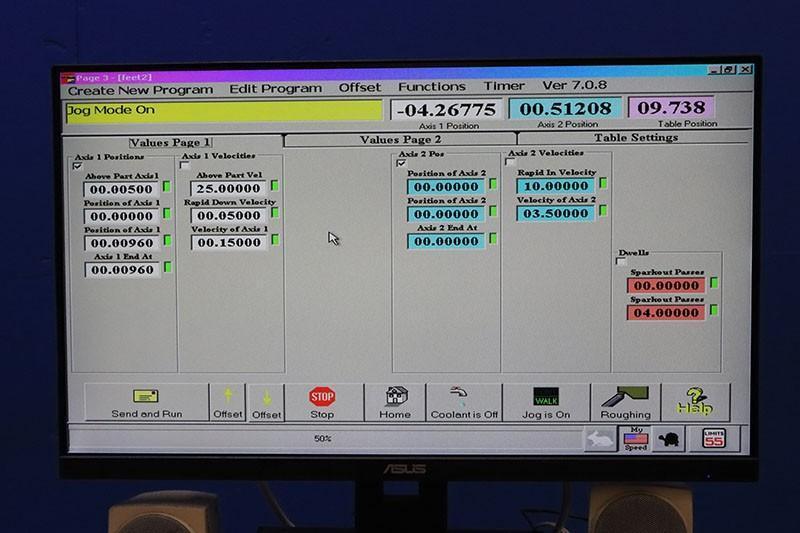

Equipped With: Factory machine enclosure. 3/60/208-230-460 Volt electrics. EZ-Surf II 3-axis PC based programmable control. MDI- Setup-Teach-Program & Edit. Profile grind & profile dress modes (you can create your own radius & taper forms for grinding as well as forming your wheel.) On-screen graphic display of wheel path prior to cutting. Conversational MDI for form & step grinding. Slot & form creep feed grinding. Simultaneous two-axis linear & circular interpolation. Absolute & incremental operation. Dwell in MDI or end of stroke. Jog. Wheel library display. RS-232 port & disk drive. Electronic hand wheels on Y & Z axes. Ball screws on Y & Z axes. Manual semi-automatic or fully automatic. Hydraulic table traverse. Cast iron construction including base. Auto lube system. 2 HP super-precision spindle. Royal Mist Mist Collector.
Max. Grinding capacity 6" x 18"

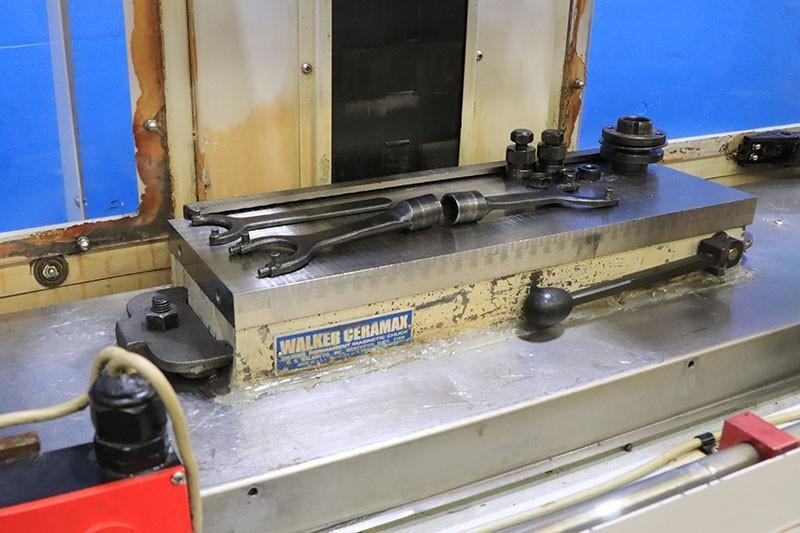

Chuck 6" x 18" Fine Line Permament Magnetic
Max. Longitudinal table travel, hydraulic 20"Max. Crossfeed travel, automatic 6.75"Dist. From spindle center to table 12"
Grinding Spindle (Variable) 2000-5000 RPM
Grinding Spindle Motor 2HP
Variable table speed, hydraulic 1/4" to 30 FPMMinimum feed increment 0.0001"Rapid traverse rate 100 IPMStandard grinding wheel 8"dia. x 1-1/4" x 1-1/4" holeDimensions (approx.) 70" x 65"Weight (approx.) 2250 lb.
