Specifications
Equipped With

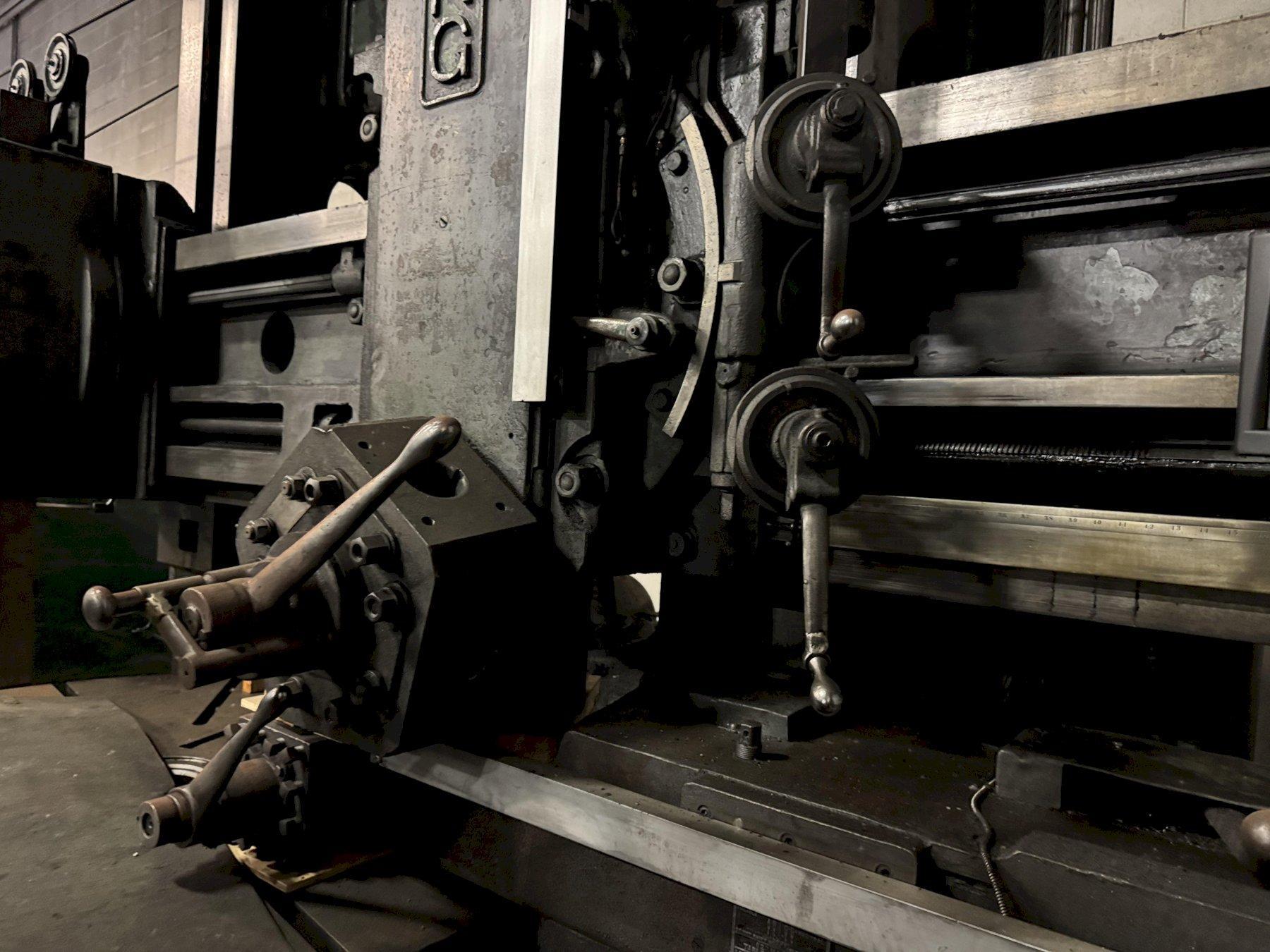

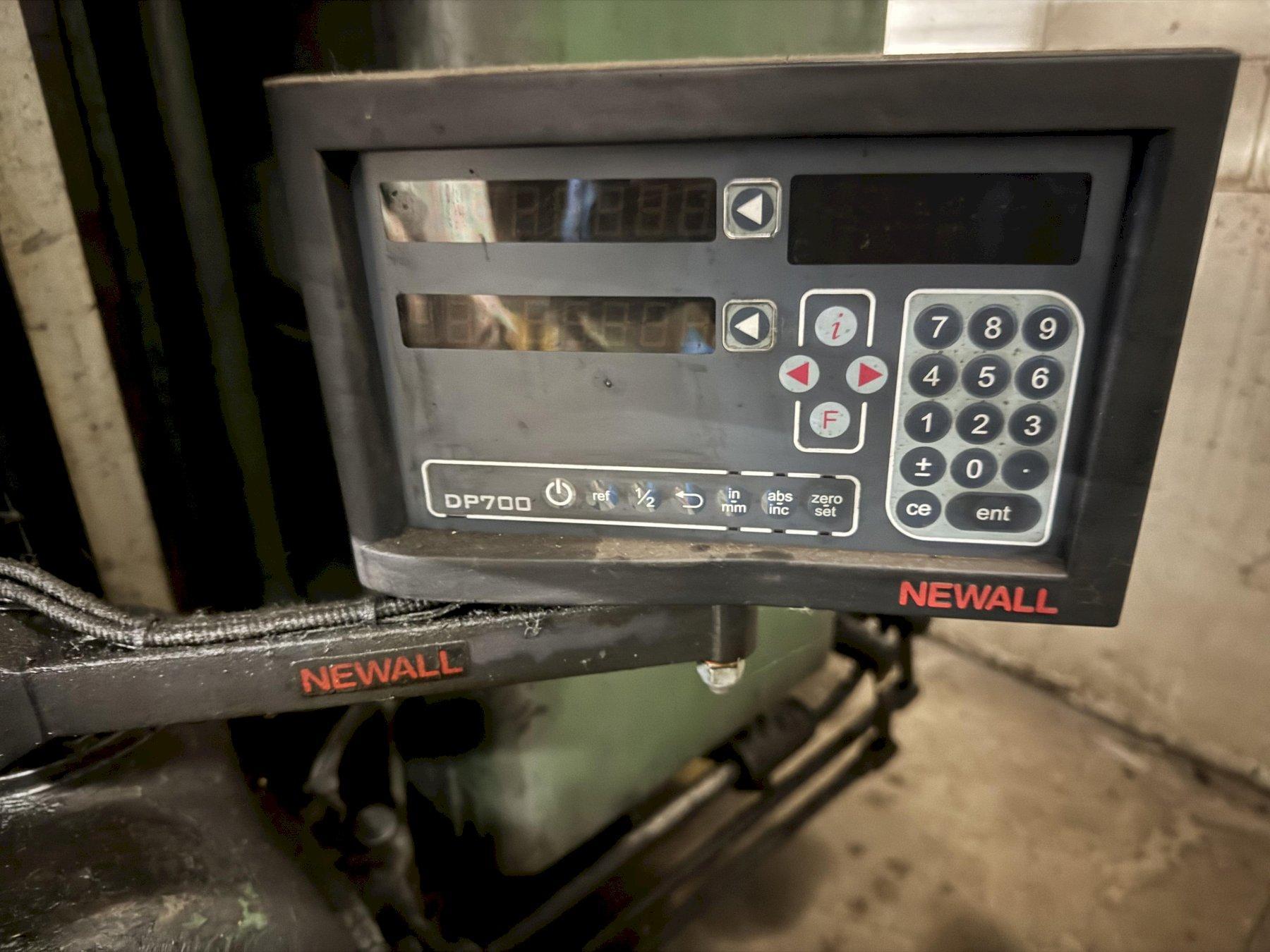

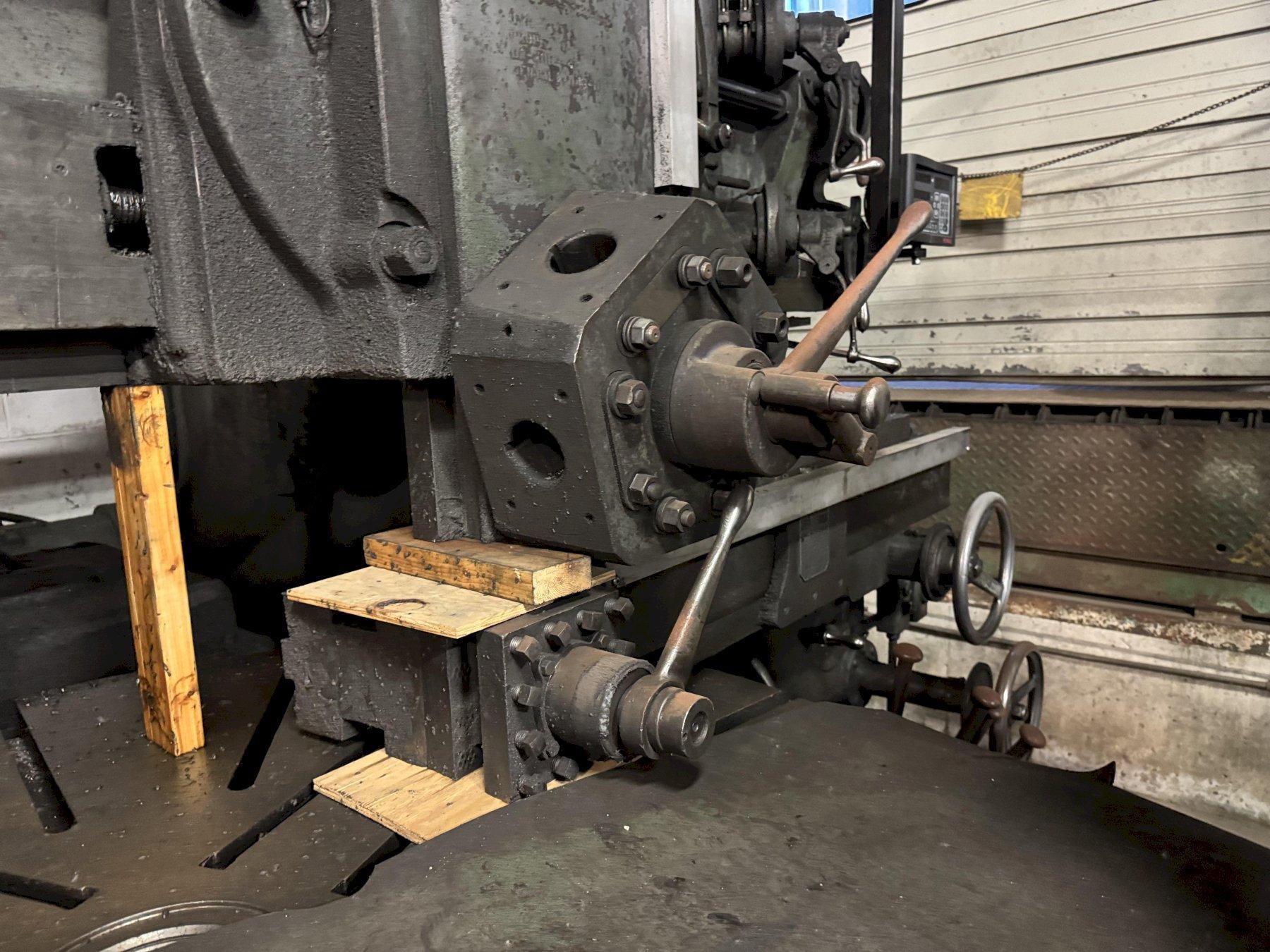

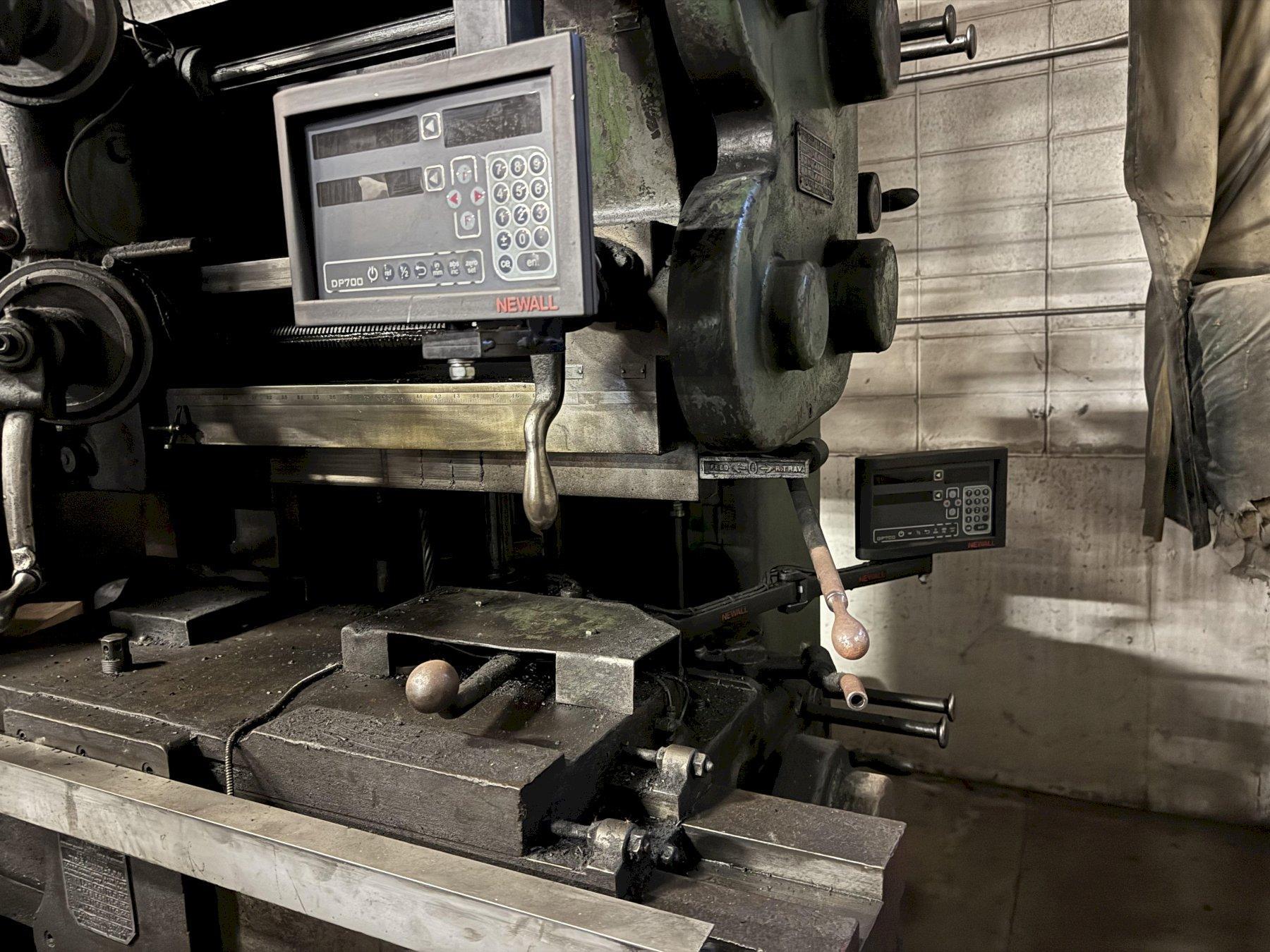

Equipped With: Swivel Turret Head with Newall DRO. Swivel Rail Mounted Ram Head. Side Head with Newall DRO. 62" Face Plate Chuck.

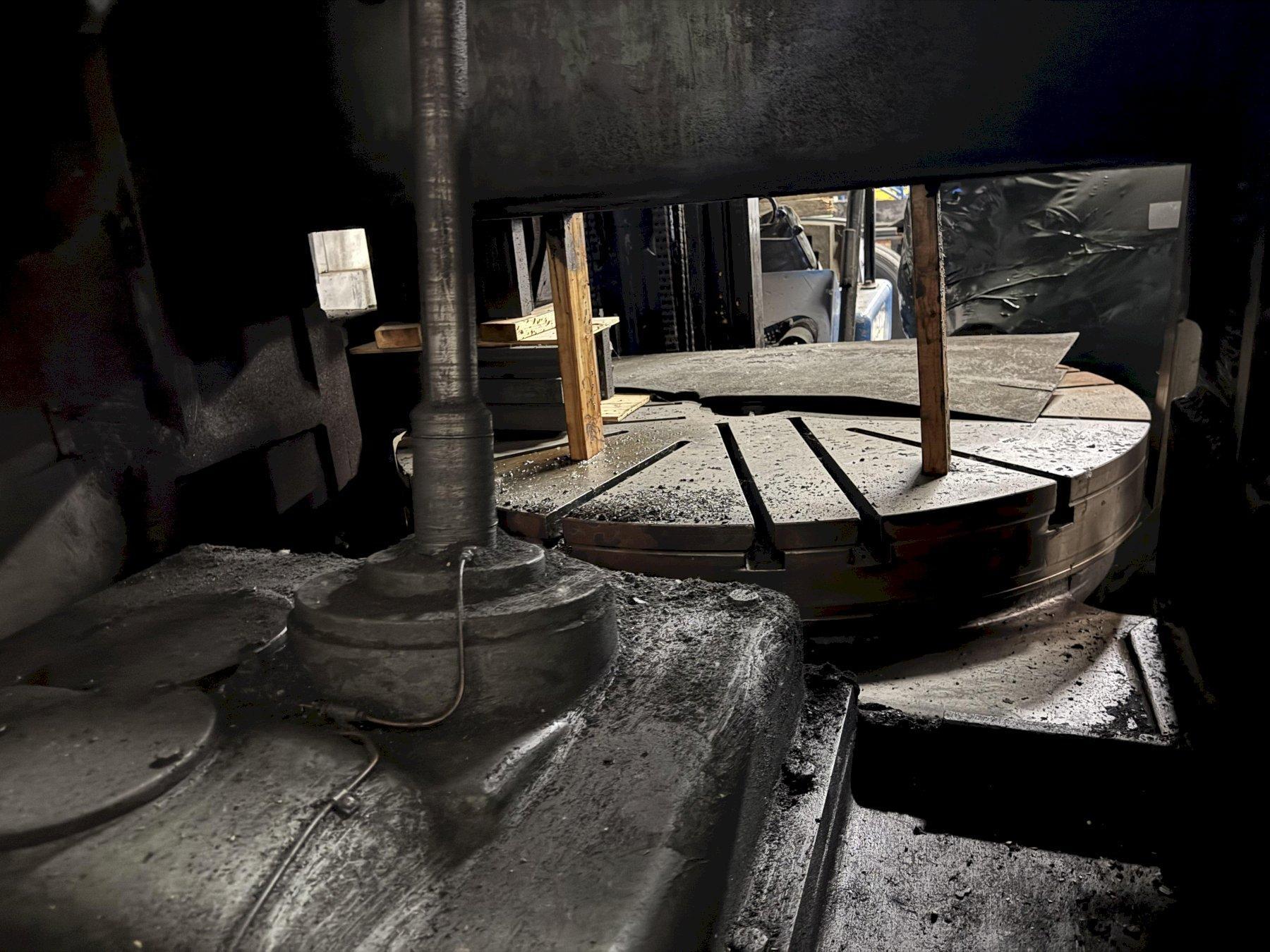

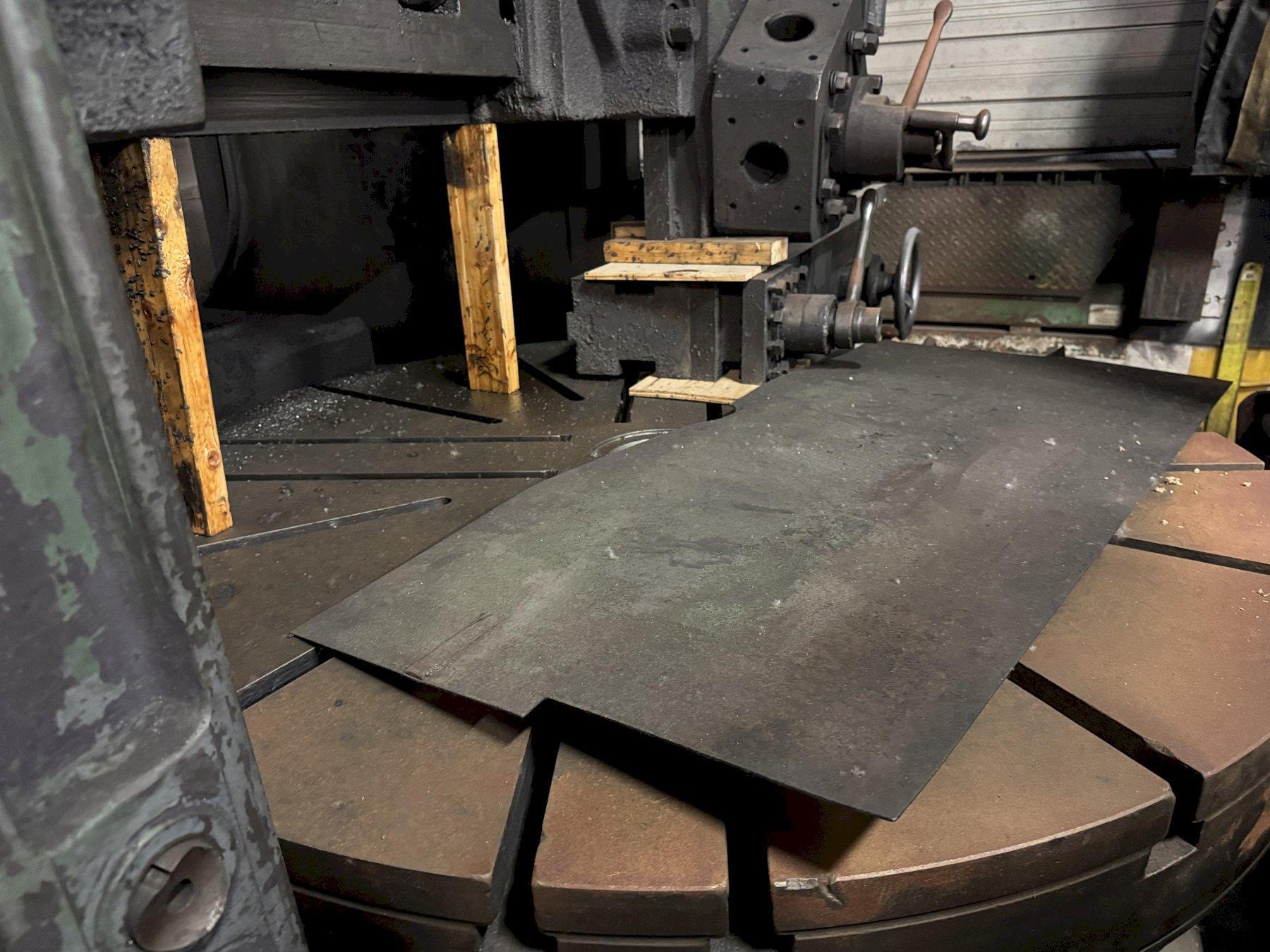

Table Diameter 62"
Maximum Swing Inside Column 69.75"
Height Under Rail 53"
Table Speeds 55.4 RPM
Table Feeds (12) .0010 - .525 IPR
Rapid Traverse 10 FRM
Ram Slide Travel 53"
Turret Slide Travel 41"
Vertical Travel Of Side Head 41.5"
Ram Slide Swivel +/- 60 Degrees Of Center
Turret Slide Swivel +/- 30 Degrees Of Center
Floor To Table Top 35.5"
Chuck Face Plate Type 4-Jaw

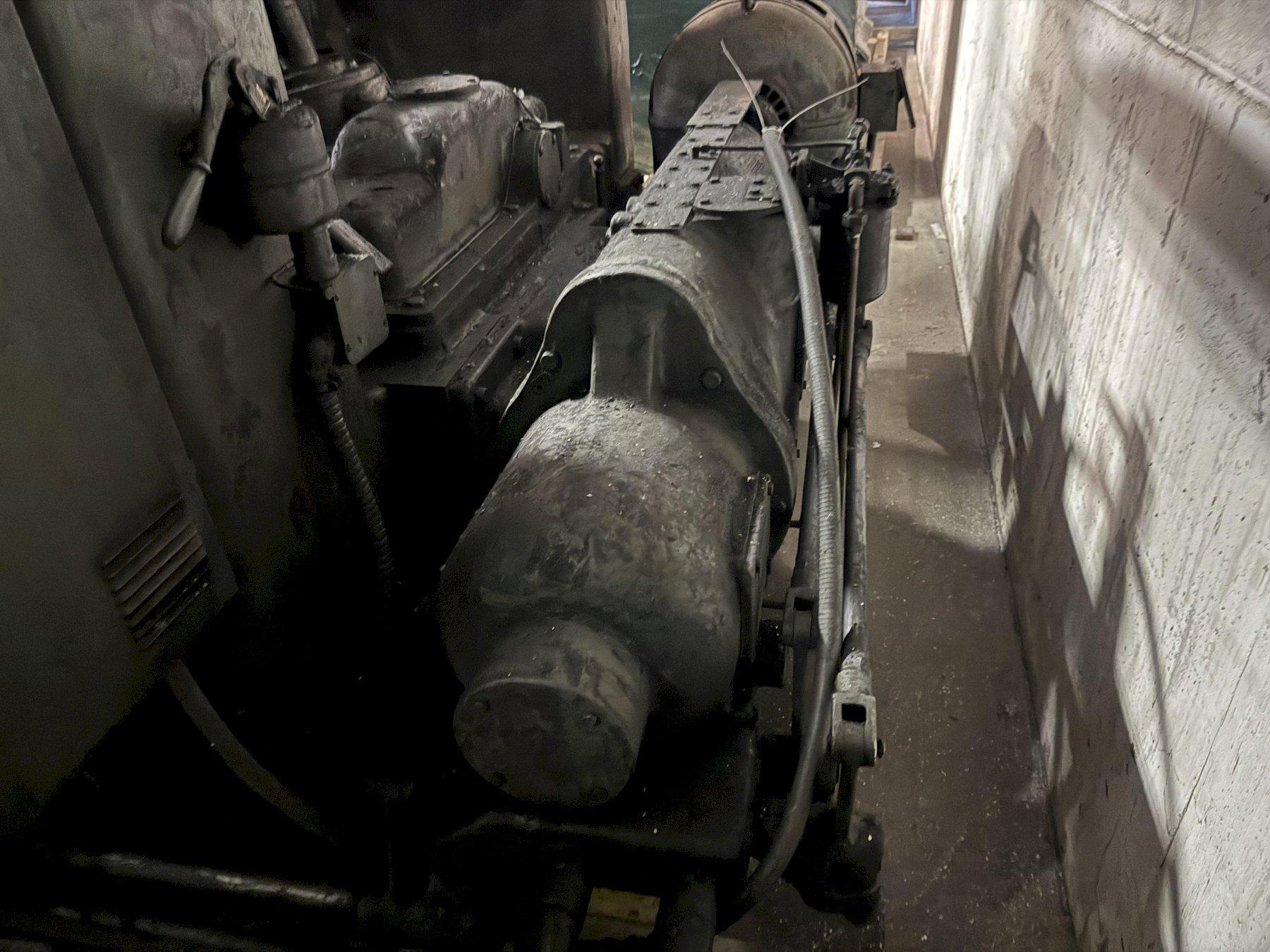

Main Motor 40 HP
