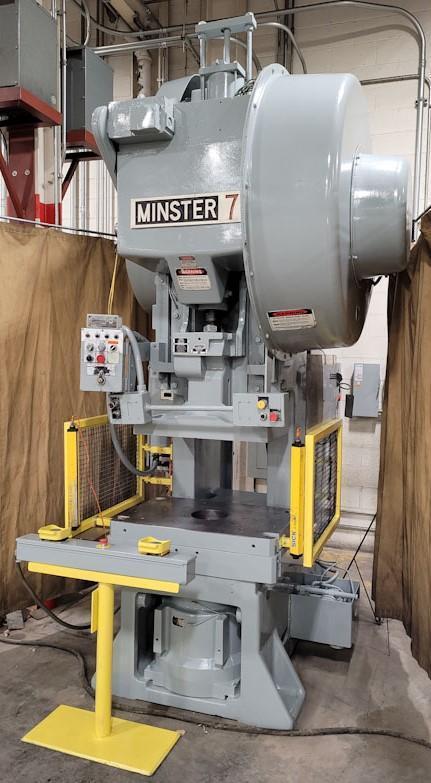

75-Ton Minster No. 7SS Back Geared Type Fixed Base Superstock OBS Press

Brand
MINSTER

Model
7SS

Stock #
PP1314

Condition
Used

Year
1989

Location
Lake Bluff, Illinois
United States

Specifications

Equipped With

EQUIPPED WITH:

3.5” T-Slotted Bolster Plate. Air Clutch & Brake. Minster 18B Air Cushion. Flanged Slide. Brake Monitor. Minster Recirculating Lubrication System. Floor Stand Operator Control Station With: E-Stop Dual Palm Buttons. Two Hand Inching Control. Operator Set Up Station (Mounted At Front Of Press) With Function Selector Switch For Inch, Single Or Continuous Operation. Motor Start, Stop, Forward/Reverse Selector Switch. Lub Fault, Motor On, Run Button Check And Brake Override Lights.

Cleaned, Cycled, Guaranteed

SPECIFICATIONS:

Capacity                                                                75 Tons
Stroke                                                                    6”
Adjustment of Slide (Manual)                                3.5”
Shut Height to Bed (SDAU)                                  19"
Area of Bed                                                           36” x 24”
Area of Flanged Slide                                            17” x 30”
Width of Opening in Back                                      18”
Bed Opening                                                         19” x 14”
Throat                                                                    13”
Strokes per Minute                                                 60 SPM
Main Motor                                                            15 HP/1800RPM
Wired for                                                                3/60*/240V Operation
Approximate Weight                                              19000 lbs
Approximate Height
