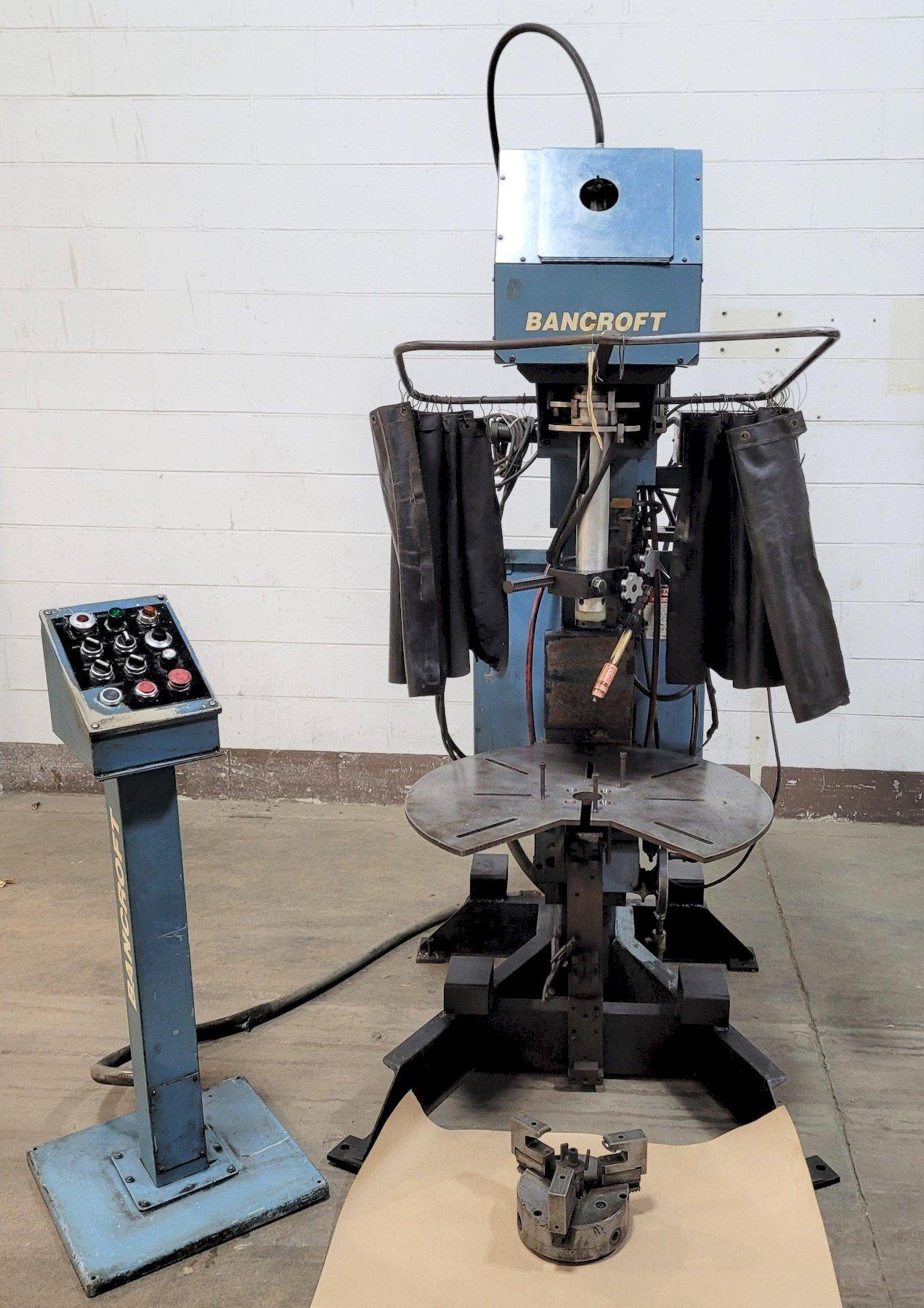

Bancroft Model WELD-O-ROUND 500 Rotary Mig Welder

Brand
BANCROFT

Model
WELD-O-ROUND 500

Stock #
WE675

Condition
Used

Year
1995

Location
Lake Bluff, Illinois
United States

Specifications

Weld Amperage 500
Minimum Part Diameter 1/2"
Maximum Part Diameter 6"
Adjustable Stroke 8"
Rotary Head Speed .7 - 14 RPM
Head Clamping Force 100 LBS
Welder Output Amps 450
Welder Output Voltage 70
Welder Maximum OCV 55
Wire Drive 50 - 550
Approximate Weight 1,500 LBS

Equipped With

EQUIPPED WITH:
360° Torch Rotation Plus Adjustable Overlap. Digital Controls. Auto Raise & Lower. Variable Speed Torch Rotation. Variable Speed Rack and Pinion Torch Adjuster. Ground Fault Indicator. Allen Bradley SLC 500 PLC Controls. Operators Control Stand with Dual Palm Button Cycle Start. E-Stop. Torch Up. 30” Diameter Work Fixture Table with Handwheel. Adjustable Table Height. Safety Curtains. Base with Forklift Pockets.
