| Max Work Diameter | 10 inches |
| Max Work Length | 12 inches |
| Max Flute Depth | 2 inches |
| Min Lead | 26.35 inches |
| Gashes Accommodated by Selection of Index Plates (Min/Max) | 6 / 48 |
| Maximum Table Stroke Length and Table Stroke Combinations | (8) 18” SPM / (12) 12” SPM |
| Max Grinding Wheel Diameter | 10 inches |
| Wheel Setting Angle, Right or Left | 40 degrees |
| Wheel Spindle Speeds | 2160 RPM |
| Approximate Weight | 5000 Lbs. |
EQUIPPED WITH:
Automatic Direct/Koyo Click PLC Controls with Touch Screen HMI for selection of Work Revolutions, Revolutions of Spark-Out. Work Revolutions Between Coarse Dress. Work Revolutions Between Fine Dress.
Motor Driven with 2 HP, 3 Phase, 60 Cycle, 460 Volt Wheel Drive Motor.
2 HP, 3 Phase, 60 Cycle Hydraulic Pump Drive Motor.

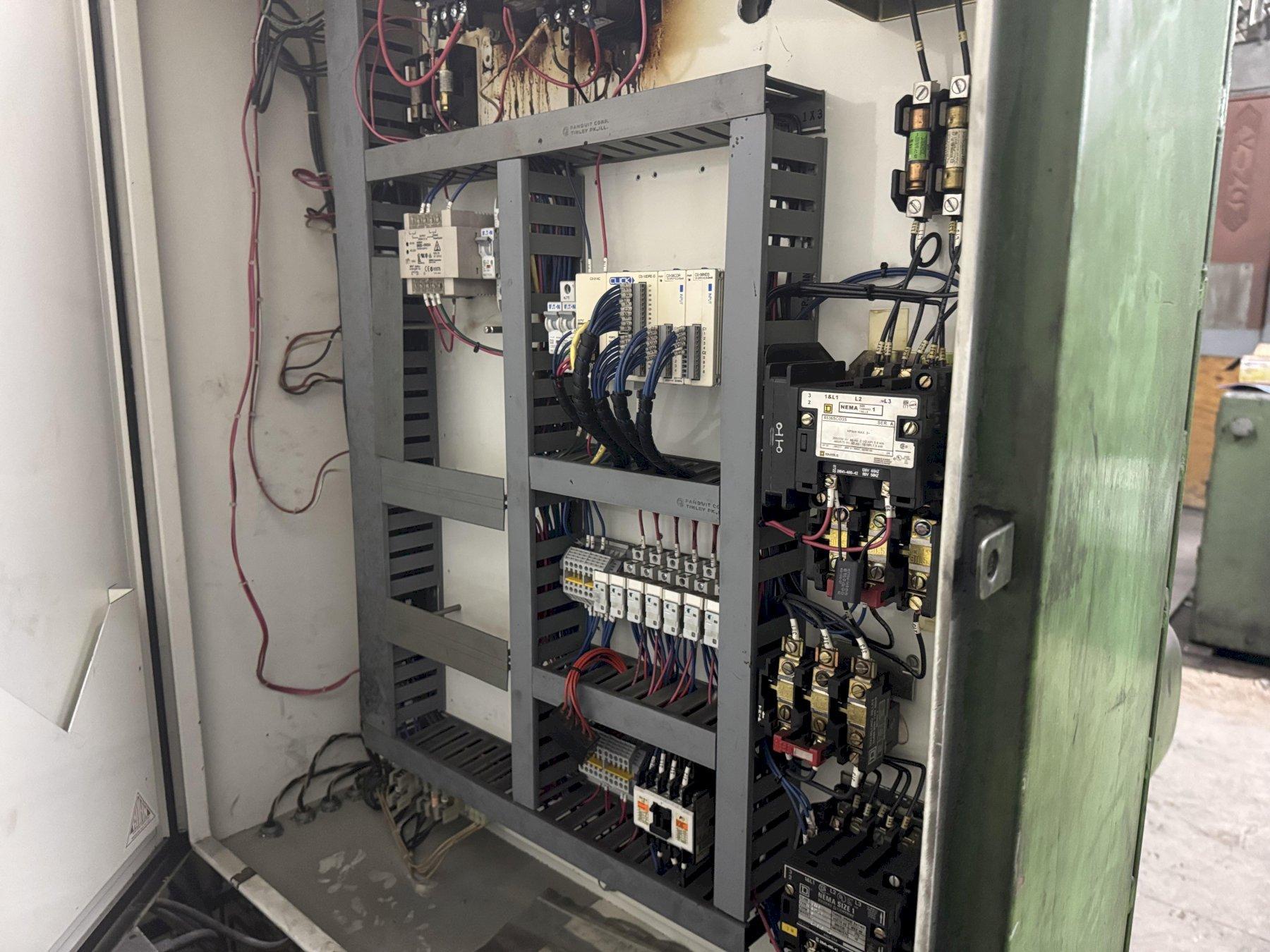

Electrical Control Cabinet and Operators Control Panel.

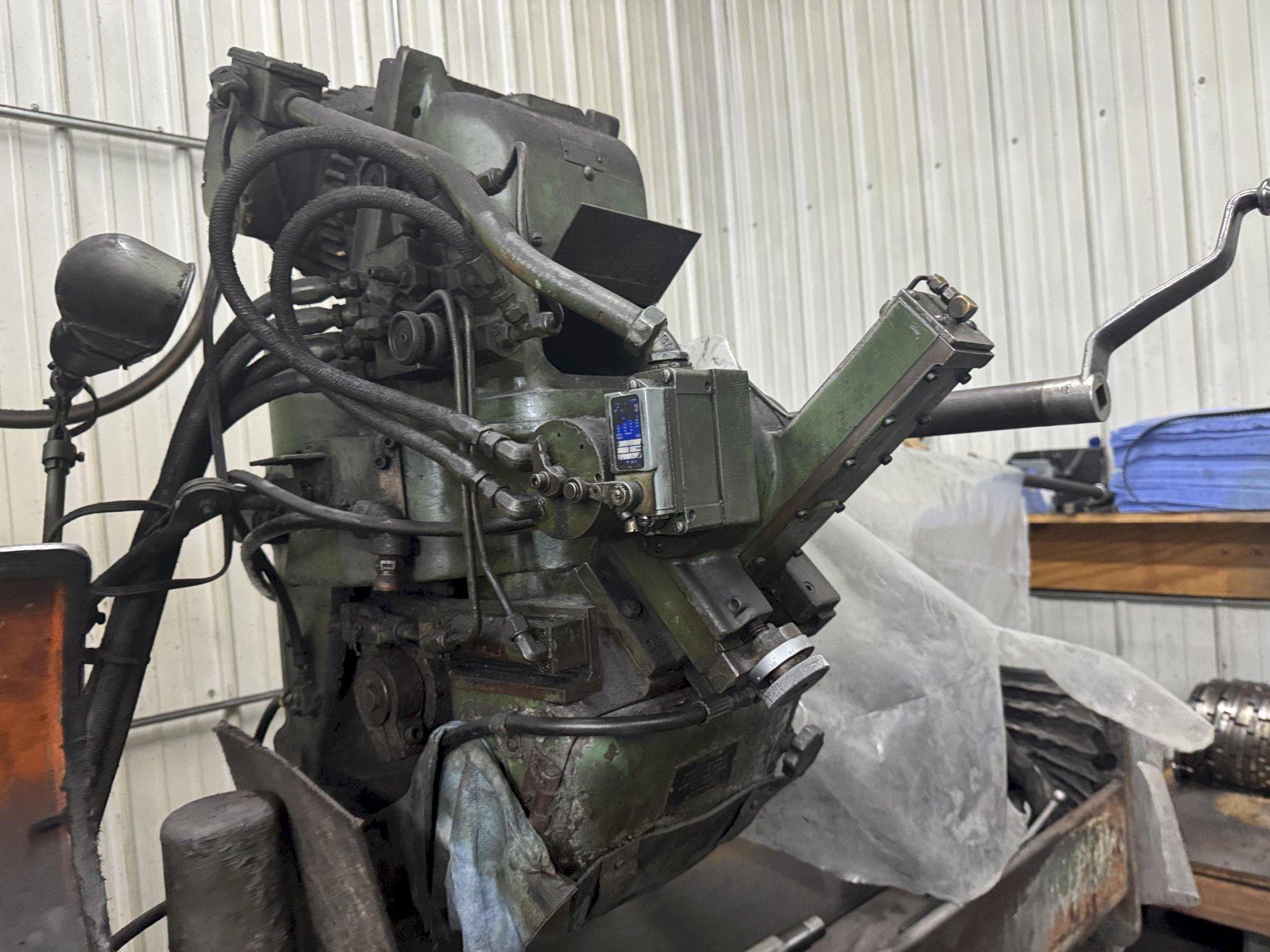

Automatic Over the Wheel Intermittent Dresser with Adjustable Selector for Fine and Coarse Feed.

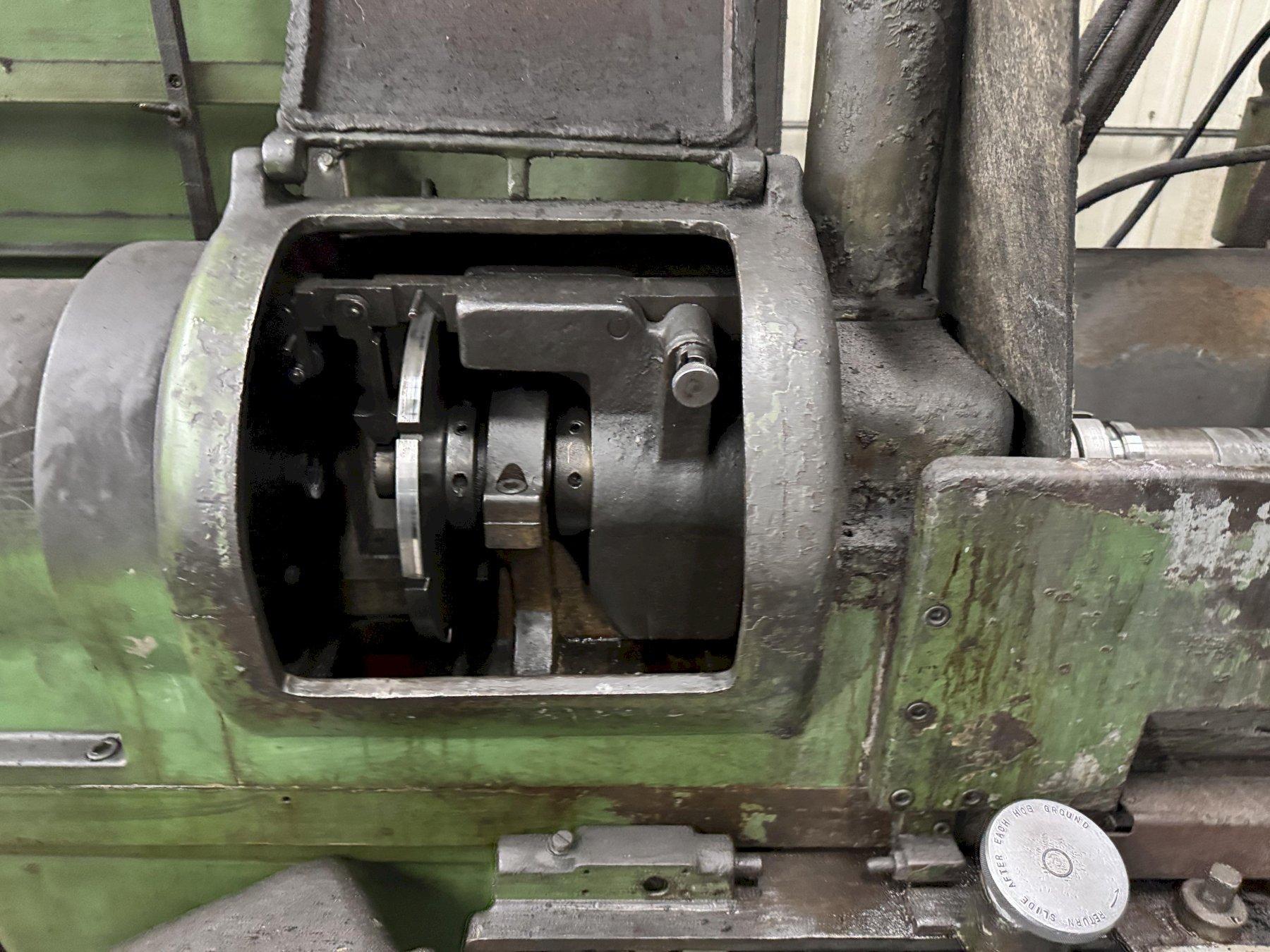

Hydraulic Indexing.
Lever Operated Tailstock.

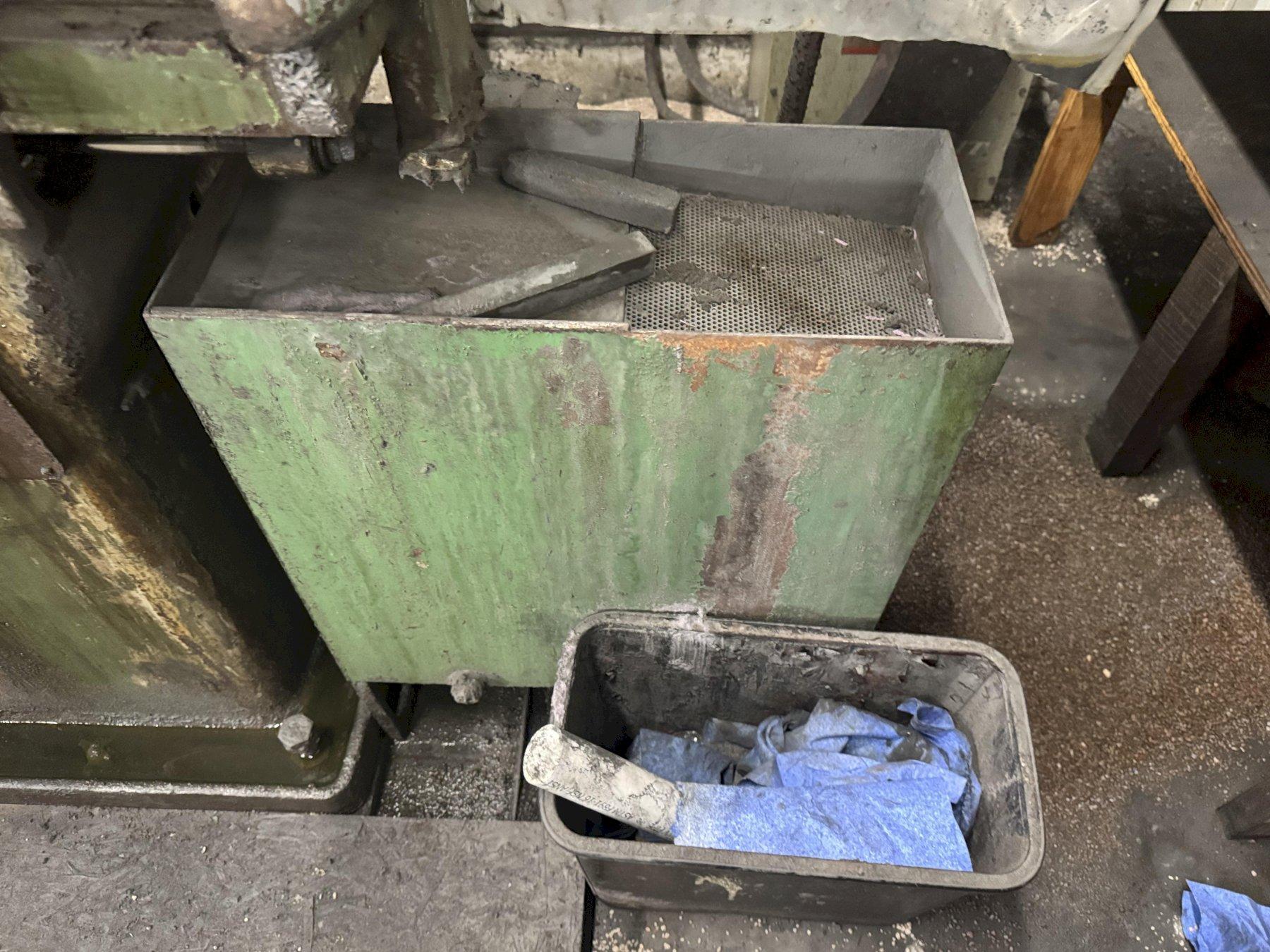

Coolant System.

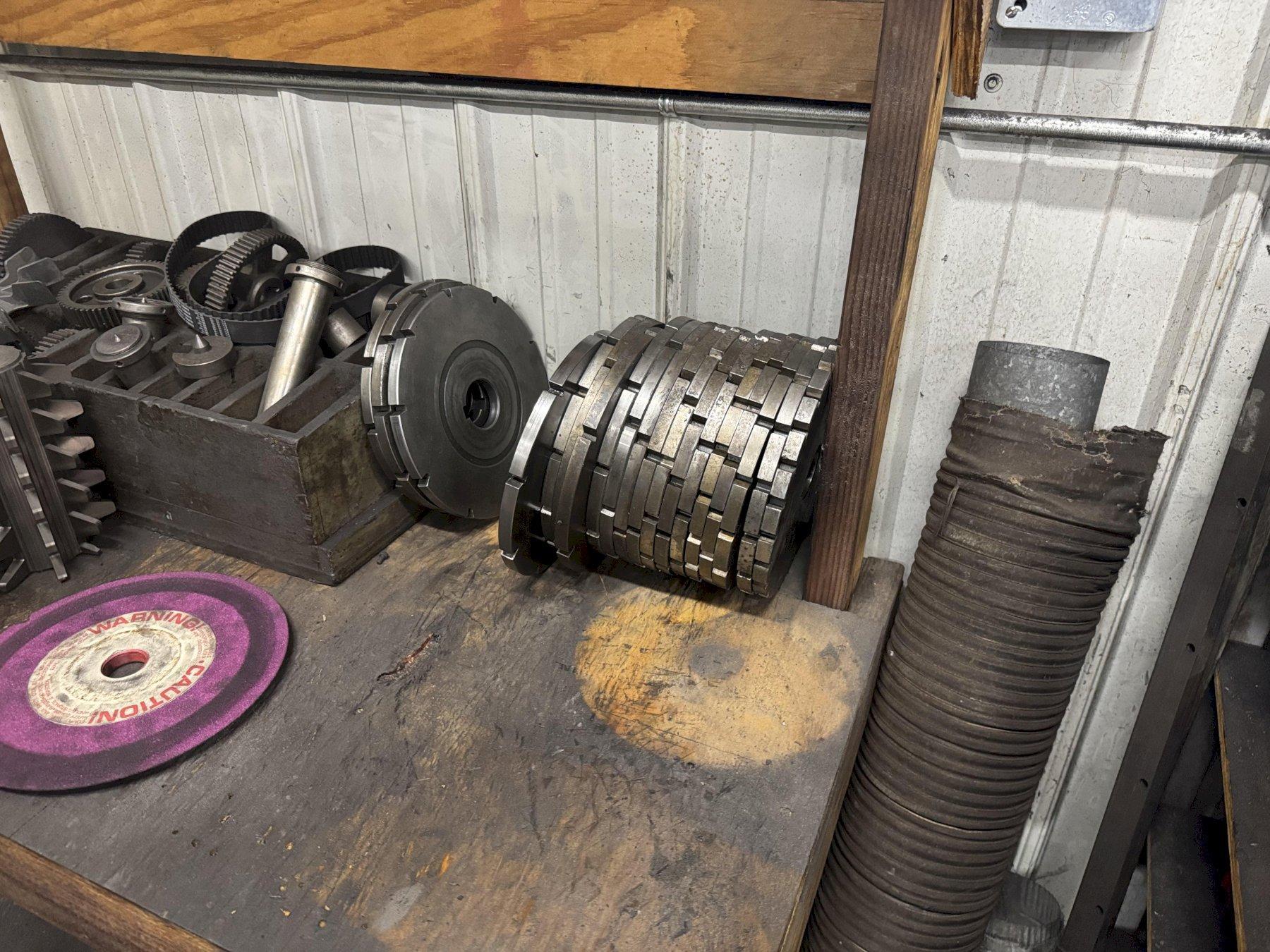

Spare Work Arbor. Assorted Index Plates.
