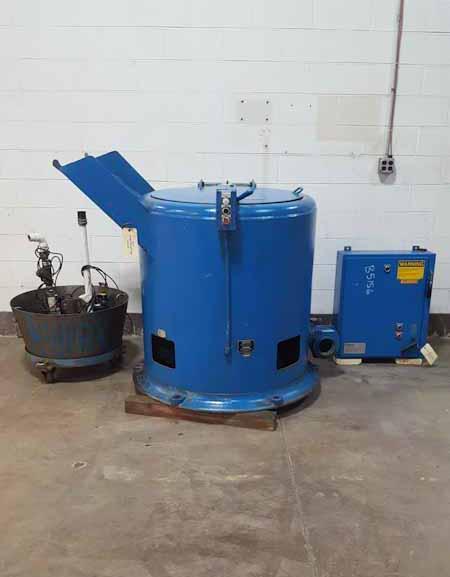

Barrett 1100 Automatic Post Type Centrifugal Sludge and Chip Spinning Oil Extractor

Brand
BARRETT

Model
1100

Stock #
m1949

Condition
Used

Year
1991

Location
LAKE BLUFF, Illinois
United States

Specifications

Chip Pan Diameter 30 inches
Chip Pan Depth 14 inches
Chip Capacity: Cubic Feet 4.5
Chip Capacity: Bushels 3.667"
Loads per Hour (Maximum) 15
Hourly Production Rate: Cubic Feet 68
Hourly Production Rate: Bushels 55
Barrels of Chips (55 Gallons) 9
Maximum Allowable Loads in Pounds 425
Running Speed 900 RPM
Main Motor 10 HP
Blower Motor 1/3 HP
Electrics 3/60/480v
Floor Space (Height x Base Diameter) 45" x 49"
Approximate Weight 2710 pounds
F.O.B. Our Plant

Equipped With

Push Button Controls for Start/Open and Stop/Fault. DC Brake. Electrical Control Cabinet for Stop Defector/Brake and Timer. (6) Removable Baskets with Dollies. Cover with Lifting Hooks. Lid Safety Interlock.

This machine is being offered thoroughly checked out in our shop cleaned and cycled.  It is being offered with a 30-Day Return Privilege and may be inspected under power here in our plant.

Cleaned, Cycled.
