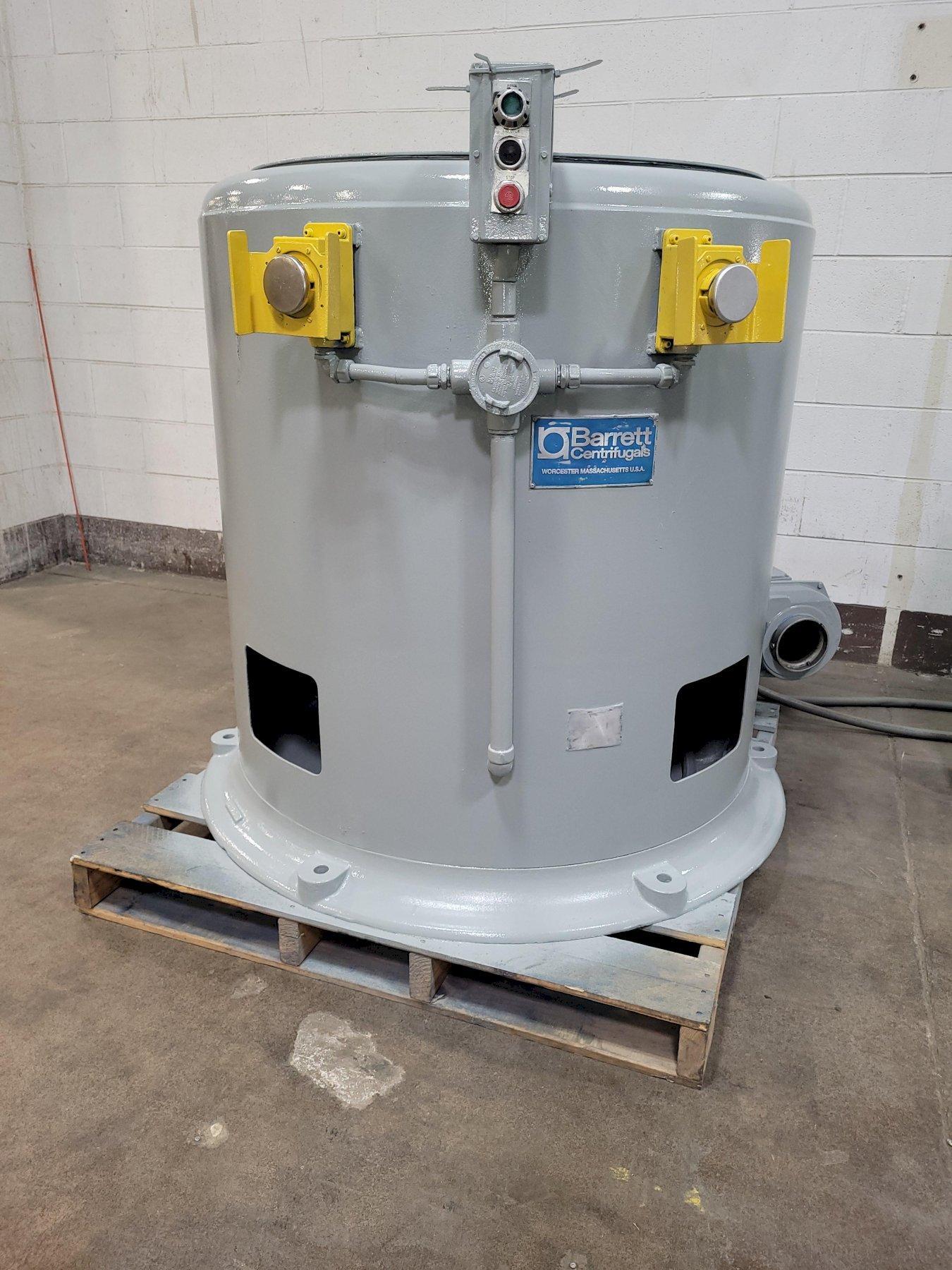

Barrett Kine-Spin 1100E Automatic Carrier Type Centrifugal Oil Extractor

Model
1100E

Stock #
M2048

Condition
Used

Year
1997

Location
Lake Bluff, Illinois
United States

Specifications

Chip Pan Diameter 30"
Chip Pan Depth 14"
Chip Pan Capacity: Cubic Feet 4.5
Chip Pan Capacity: Bushels 2.67"
Load per Hour (max) 15
Hourly Production Rate: Cubic Feet 68
Hourly Production Rate: Bushels 55
Max Allowable Loads 425 Lbs
Hourly Production Rate 3,375 Lbs.
Running Motor 900 RPM
Main Motor 10 HP
Blower Motor 1/3 HP
Electrics 3/60/480v
Floor Space (Height x Base Diameter) 45" x 49"
Approximate Weight 2,710 Lbs.

Equipped With

EQUIPPED WITH:

GE-Fanuc Series 90-30 PC Control. Dual Paul Button Cycle Start Controls Push Button Control for Pneumatic Assist Lid Open. DC Brake. Electrical Control Cabinet for Stop Defector/Brake and Timer. (3) Removable Baskets w/Dollies. Cover with Lifting hooks. Lid Safety Interlock.
