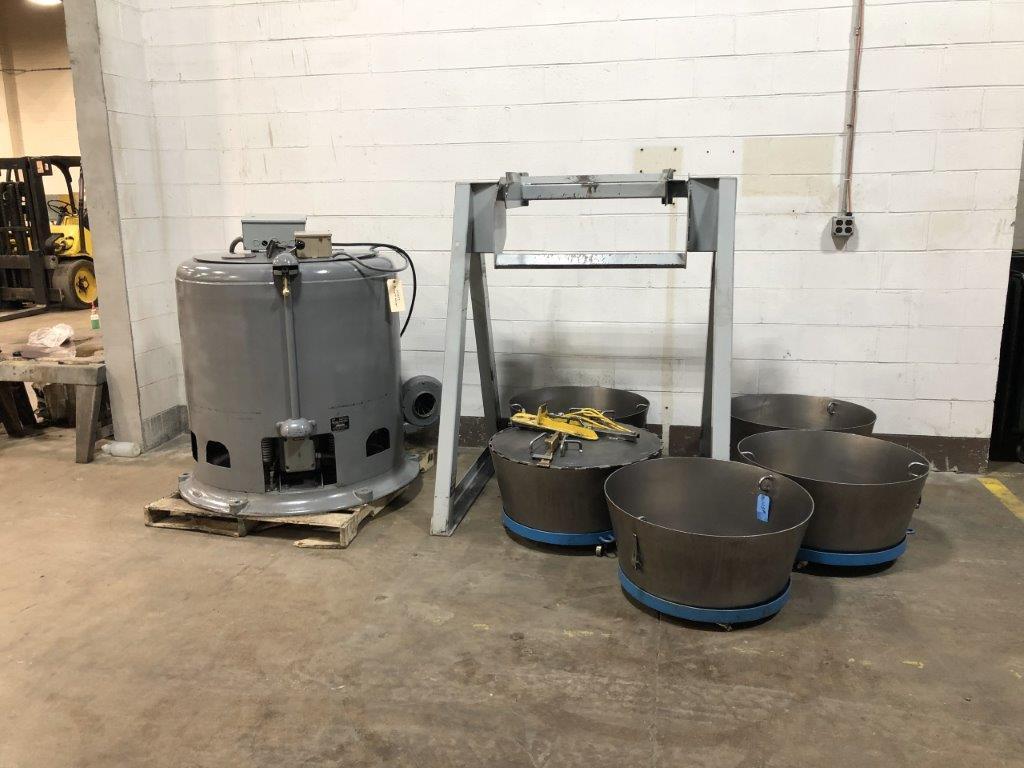

Barrett Model 1100E Automatic Carrier Type Centrifugal Oil Extractor

Brand
BARRETT

Model
1100E

Stock #
M1937

Condition
Used

Year
1974

Location
Lake Bluff, Illinois
United States

Specifications

Equipped With

EQUIPPED WITH:
Updated Controls For Start/Open And Stop/Fault. Electrical Control Cabinet For Stop Defector/Brake And Timer. (5) Removable Baskets With Dollies. Cover With Lifting Hooks. Lid Safety Interlock.

This machine is being offered thoroughly checked out in our shop, cleaned, and cycled.  It is being offered with a 30-day Return Privilege and may be inspected under power here in our plant.



SPECIFICATIONS:

Chip Pan Diameter                                                                                30"
Chip Pan Depth                                                                                     14"
Chip Pan Capacity: Cubic Feet                                                               4.5
Chip Pan Capacity Bushels                                                                    3-2/3"
Loads per Hour (Maximum)                                                                    15
Hourly Production Rate: Cubic Feet                                                        68
Hourly Production Rate: Bushels                                                            55
Barrels of Chips (55 Gallon)                                                                   9
Maximum Allowable Loads in lbs                                                            425
Hourly Production Rate                                                                          3375 lbs
Running Speed                                                                                     900 RPM
Main Motor                                                                                           10 HP
Blower Motor                                                                                        1/3 HP
Electrics                                                                                               3/60/480V
Floor Space (Height x Base Diameter)                                                    45" x 49"
Approximate Weight                                                                              2,710 lbs
