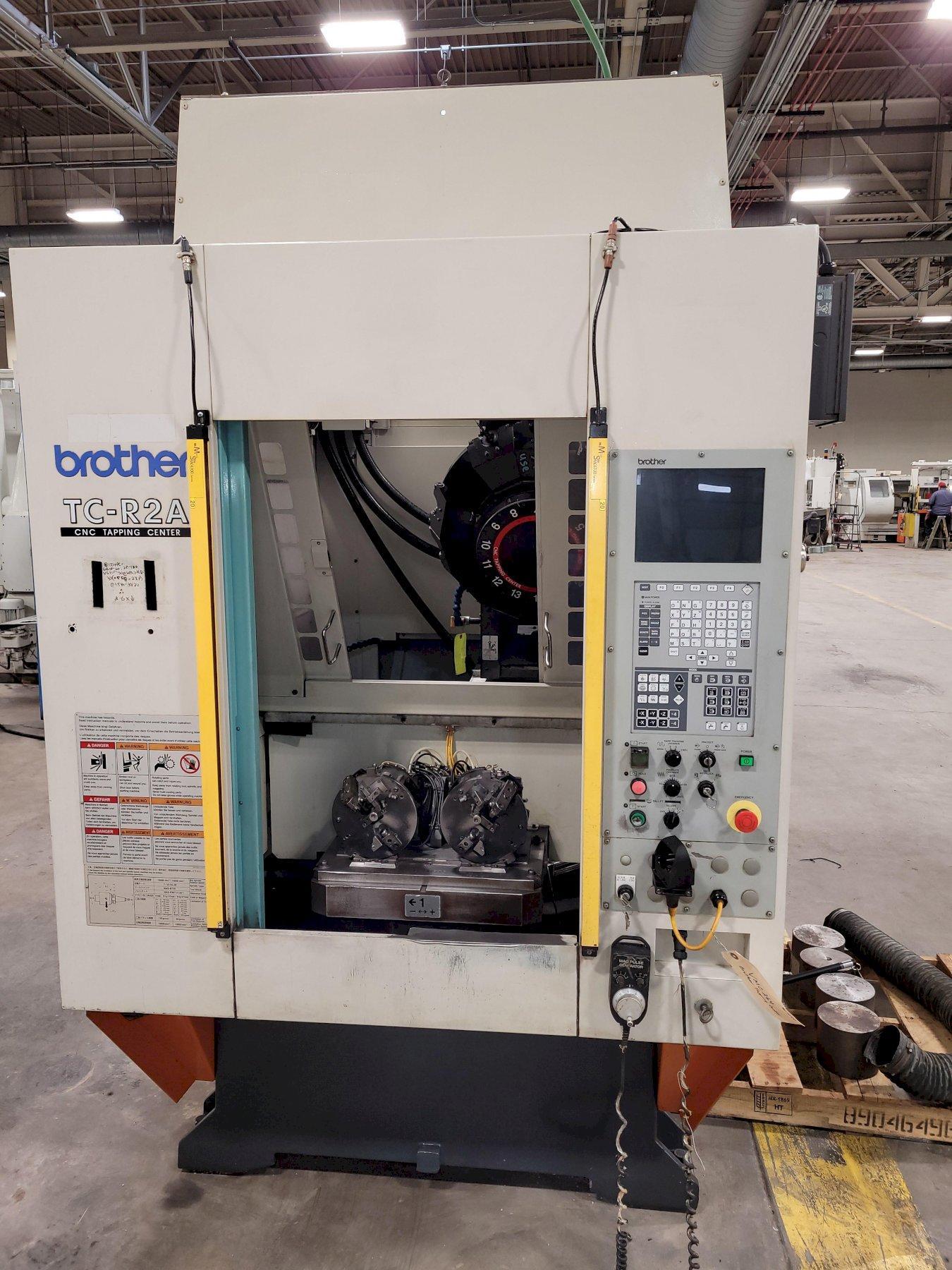

Brother TC-R2A CNC Drilling & Tapping Center

Brand
BROTHER

Model
TC-R2A

Stock #
vmc264

Condition
Used

Year
2006

Location
Lake Bluff, Illinois
United States

Specifications

Table Work Area (2 Surfaces) 19.7" x 11.8"
Max Table Load (Uniform Load) 176 lbs x 2
X-Axis Travel 16.5 inches
Y-Axis Travel 12.6 inches
Z-Axis Travel 10.6 inches
No. of Tool Station 14
Max Spindle Speed 10,000 RPM
Spindle Taper BT-30
Tool Change Time (Chip to Chip) 1.8 seconds
Rapid Traverse Rate (X,Y) 1181 IPM
Rapid Traverse Rate (Z) 1965 IPM
Table Top to Spindle Nose 7.1" - 17.1"
Approximate Weight 6400 pounds

Equipped With

Brother CNC-A00 CNC Control (Conversational or G-Code). Quick Table (Two Surface Pallet Changer). 14-Position Turret Style ATC. Manual Pulse Generator. Transformer.

This machine is being offered Cleaned, Cycled and with a 30-day Return Privilege Guarantee.
