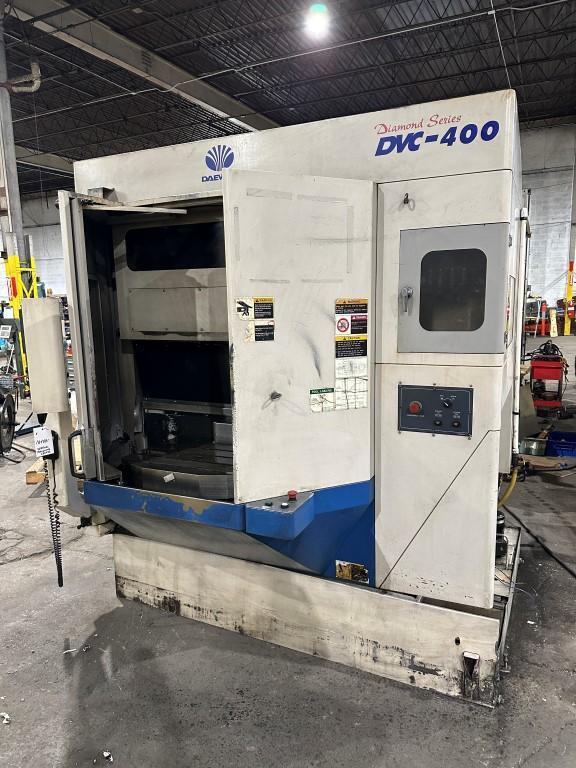

Daewoo DVC400 Rotating Pallet Vertical Machining Center







Daewoo DVC400 Rotating Pallet Vertical Machining Center

Brand
DOOSAN

Model
DVC400

Type
Machining Centers, Vertical

Stock #
TM4881

Condition
Very Good

Year
2004

Location
Libertyville, Illinois
United States

Request a Quote

Specifications

CNC Control	yes

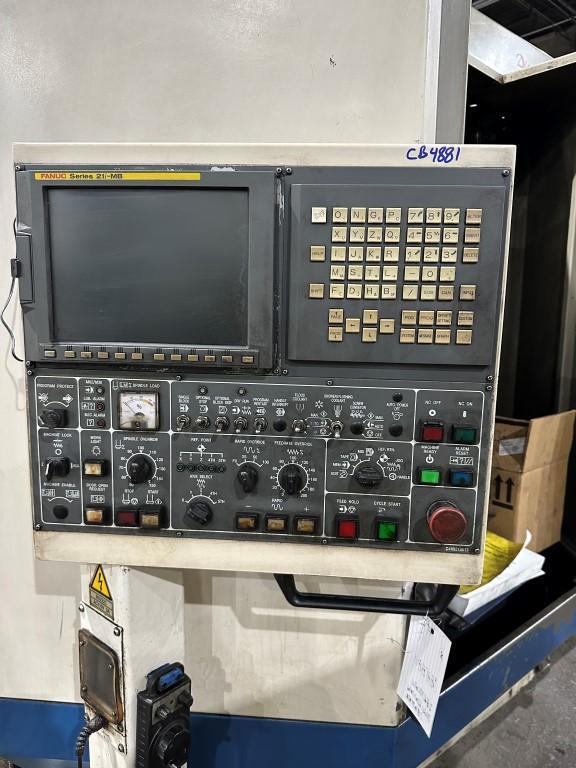

Type of CNC Control	Fanuc 21iMB
# Axis	3
Table Size	28" x 18.7" (2)
X-Axis Travel	22 inches
Y-Axis Travel	15.7 inches
Z-Axis Travel	22.4 inches
Spindle Speed	0-12000 RPM
Spindle Taper	40
Main Motor	25 HP
Tool Changer Capacity	30
Coolant Thru Spindle	yes
Dimensions	124" X 110" X 100" Ht
Weight	14000 pounds

Equipped With

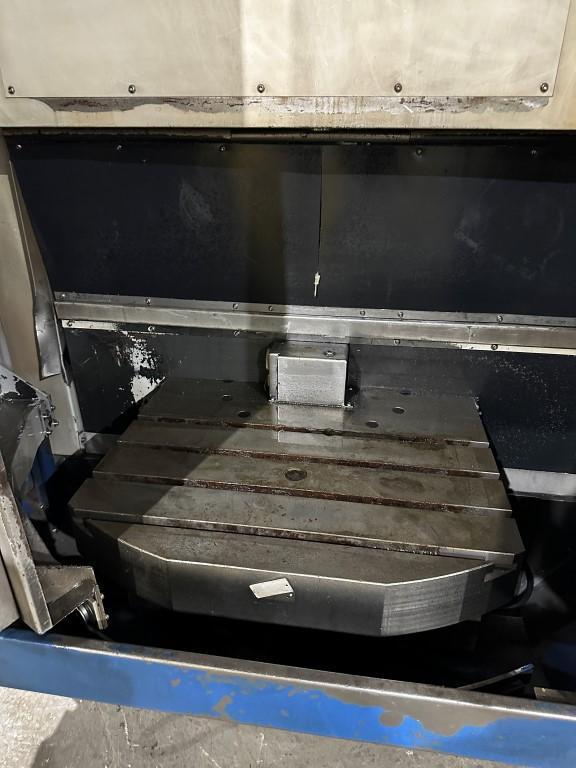

Equipped With: Fanuc 21iMB CNC Control with MPG Pendant. 180 degree 2 Sided Pallet with divieder for Load/Unload during operation. 30 ATC Tool Changer. Through Spindle Coolant. Coolant System with Chip Conveyor. Transformer.
