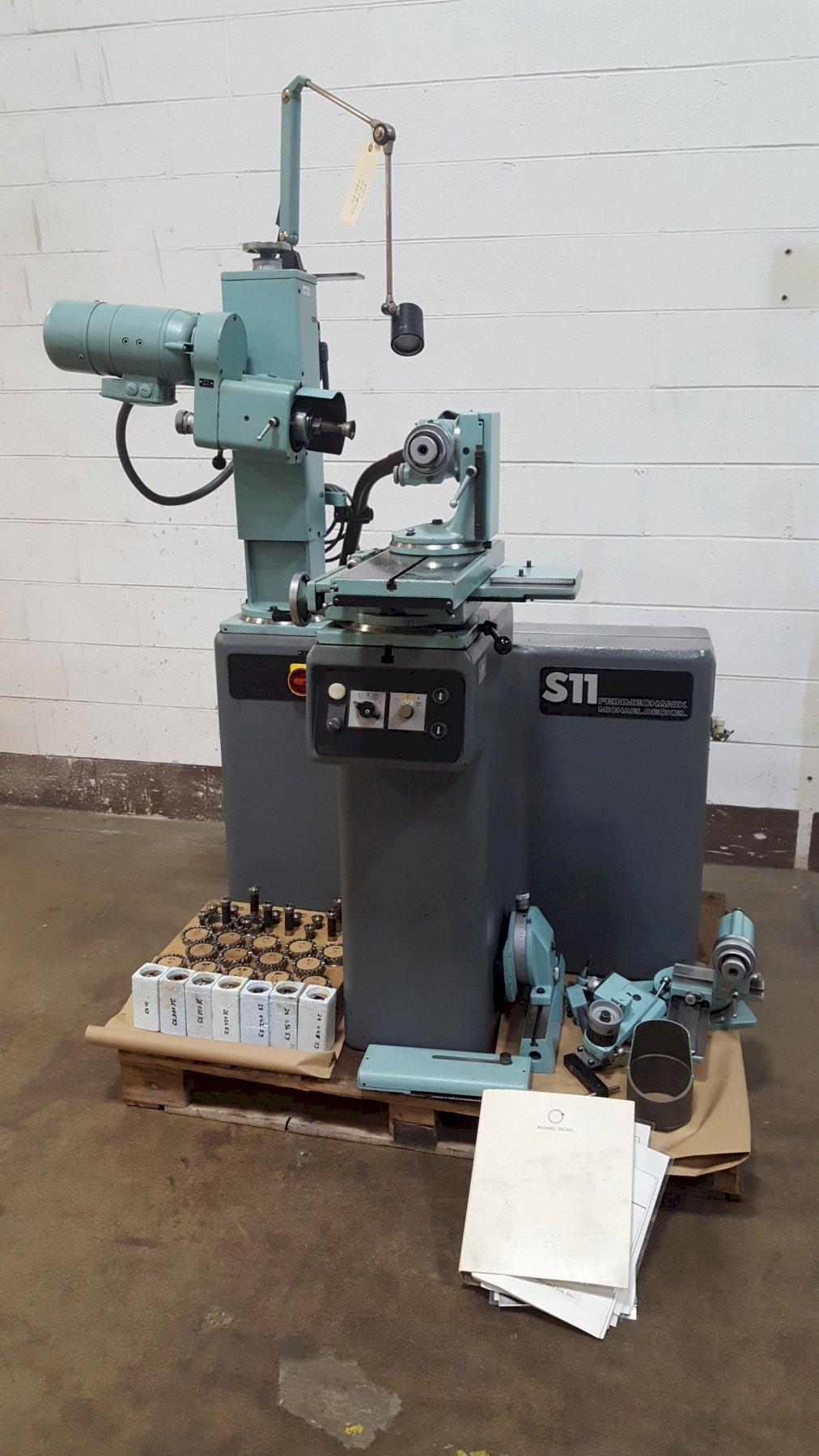

Deckel Model S11 Universal Tool & Cutter Grinder

Brand
DECKEL

Model
S11

Stock #
G1444

Condition
Used

Year
1996

Location
Lake Bluff, Illinois
United States

Specifications

Worktable Longitudinal Travel 7.5 inches
Worktable Cross Travel 4 inches
Spindle, Vertical Travel 13 inches
Spindle, Axial Feed 0.187 inches
Max. Workpiece Dia. Between Centers 13.5 inches
Max. Workpiece Length Between Centers 37 inches
Spindle Column Swivel, Horizontal 360°
Spindle Column Swivel, Vertical 360°
Worktable Swivel 360°
Universal Index Head Swivel, Horizontal 360°
Universal Index Head Swivel, Vertical 360°
Max. Wheel Diameter 5 inches
Max. Cut-off Wheel Diameter 8 inches
Spindle Motor 1.75 HP
Spindle Speed Range 2000 - 10000 RPM
Machine Tool Dimensions 43.3"L x 31.5"W x 69.3"H
Machine Tool Weight 1145 pounds

Equipped With

* Adjustable Through 360°. In 5 Axes *

40 Taper Workhead with Handwheel. Swivel. Indexing Mechanism. Collet Chuck. Motorized Swiveling Wheelhead.  (16) Index Plate. Approximately (23) Assorted Collet. Universal Wheel Dresser. Relief Grinding Slide. Spiral and Relief Grinding Attachment. Radius Grinding Attachment. Tooth Rest Bracket. Halogen Machine Lights.

The Deckel is offered cleaned, cycled and guaranteed to in good operating condition.
