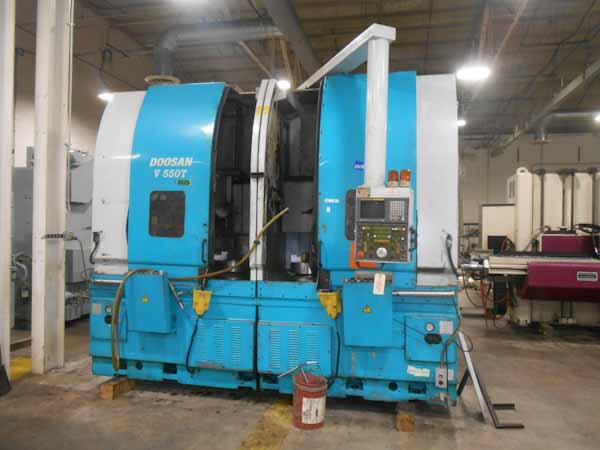

Doosan V550T CNC Twin Spindle Vertical Turning Center

Brand
DOOSAN

Model
V550T

Stock #
cnc466

Condition
Used

Year
1999

Location
City Not Specified,

Specifications

Equipped With

Swing over Bed 805mm (31.75")
Max. Turning Diameter 550mm (21.7")
Max. Turning Length 610mm (24")
Spindle Center Height 1,060mm (41.7")
Nose Type A2-8
Spindle Speed 20-2000 RPM
Turret Type V12 + V12
Max. Number of Tools 12 +12
Standard Shank Size 25mm (1")
Boring Bar Diameter 1-3/4", 2"
Travel X-Axis 310mm (12.2")
Travel Z-Axis 610mm (24")
Rapid Traverse Rate X-Axis 20 m/min (787 IPM)
Rapid Traverse Rate Z-Axis 20 m/min (787 IPM)
Cutting Feed Override 0-200 (10% step)
Approximate Dimensions (W x L) 2.470mm x 4900mm
Approximate Machine Weight 14 kg (30,864 lbs)

Fanuc Series 18iT CNC Control with full CRT. Keyboard. Load Meters. Handwheel Jog. RS232 Port. Controls for Independent LH/RH Operation and Dual Mode. (2) 15 3-Jaw Chucks. (2) V-12 Turrets with Tool Holders. Foot Pedals. (2) Read Discharge Chip Conveyors. Coolant Pump and Tank.
